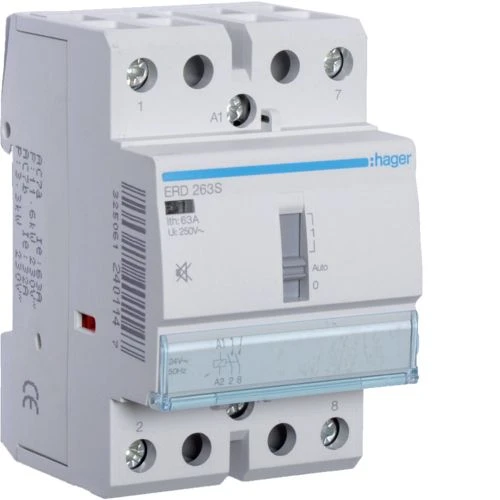

ERD263S - Humfree Override Contactor 63A, 2NO, 24V - Hager

Pending restock
ERD263S - Humfree Override Contactor 63A, 2NO, 24V - Hager - Humfree Override Contactor 63A, 2NO, 24V - Hager - 0
ERD263S - Humfree Override Contactor 63A, 2NO, 24V - Hager
109,21 € excl. VAT
135,42 € incl. VAT
Text About:
Humfree Override Contactor 63A, 2NO, 24V - Hager
135,42 €
SPECIFICATIONS
Additional Information
type of order Relay
Main
Number of modules 3
rated operational voltage ue 400 V
Complementary
acceptable current load with ac7 category a 63 A
can be accessorized Yes
command voltage ac 24 V
connection cross-sect. flexible conductor 1,5 / 16mm²
contact rating with 230 v in ac7 category a 11.6 kW
depth of installed product 60 mm
electric endurance in number of cycles 30000
fluorescent lamps in duo circuit 4700 VA
inrush power absorbed 5.2 VA
local operation/hand operation Yes
max. power with fluorescent parallel lamps 2100 VA
max. power with incandescent lamps 6500 W
search words Installation relay;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;
time of response when closing 25 ms
winding resistance 95 Ω
[in] rated current 63 A
acceptable current load with ac7 category b 32 A
connection cross-sect. rigid cable 1,5 / 25mm²
contact rating with 230 v in ac7 category b 3.3 kW
dc control voltage 24 V
height of installed product 85 mm
max. load fluorescent lamp 3000 VA
number of mechanical operations 1000000
time of response when opening 20 ms
total power loss under in 14.5 W
connection cross-section of the control cable solid 1 / 2.5 mm²
contact rating with 400 v in ac7 category a 35 kW
number of contacts 2
type of connection with screw
width of installed product 54 mm
contact rating with 400 v in ac7 category b 7.8 kW
operating consumption 5.2 VA
storage/transport temperature -40…80 °C
thermal rated current outside of housings 63 A
tightening torque Coil: 2,5Nm ; Power: 3,5Nm
power dissipation per coil 4.5 W
type of contacts 2NO
power loss per contact 5 W
Rated insulation voltage 440 V
frequency 50
rated impulse withstand voltage 4 kV
Poles description 2 P
Environment
protection class isol.class II
european directive weee concerned
protection index ip IP2X
operating temperature -10…50 °C
About this product

The ERD263S - Humfree Override Contactor 63A, 2NO, 24V is formulated to meet the desires of technical experts, such as electrical installers, electric engineers, upkeep firms, and manufacturing originators. ERD263S offers superior standards and utility for specialists in the electrical engineering industry. This Humfree Override Contactor 63A, 2NO, 24V and other Contactors from Hager can be ordered the best price and delivery schedule through BALTELEC website, a well-known purveyor supplying contractors in their gathering needs.

Consumers who have adopted Hager Contactors have invariably praised the brand's trustworthiness. It has been mentioned that the remarkable operation of ERD263S - Humfree Override Contactor 63A, 2NO, 24V extends to a array of operations. Its excellent traits make it optimal to suit a variety of needs, assuring the success of your industrial, tertiary, and automation ventures.

Our company dedicates in accommodating industrial and tertiary professionals’ needs. We recognize the distinct requirements and demands of our clients in the sector. By cooperating with BaltElec, your team access access to the leading charges and lead time of excellent products like ERD263S - Humfree Override Contactor 63A, 2NO, 24V from Hager at an economical price. Authorized buyers enjoy added discounts and preferred assistance.

Make a move and secure ERD263S - Humfree Override Contactor 63A, 2NO, 24V at our dependable and easy-to-use webshop. Don't delay in making this smart move that warrants the utmost quality and caters to the defined demands of suppliers like your firm.

If you face any uncertainties or concerns about ERD263S - Humfree Override Contactor 63A, 2NO, 24V or any other Hager products, drop us a line or refer to our FAQs section below. We have compiled answers to routine problems to aid you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, ERD263S - Humfree Override Contactor 63A, 2NO, 24V from Hager is reliable, thrifty, and excellent to its competitors in the Contactors category. Feel free to make it a part of your infrastructure today. Take advantage of at BALTELEC, your reliable source for all your Contactors.

In our Baltelec.eu e-commerce store you will spot Humfree Override Contactor 63A, 2NO, 24V - ERD263S worth 133.24 €, which will be a faithful and up-to-date solution for your necessities. This article is fabricated by the Hager brand using the current technologies and fulfills the optimal standards of precaution and capacity. We supply goods from the Contactors category that blend strength and efficacy, which is an superior choice for various purposes. In spite of whether you require appliances for small manufacturing or for experienced industrial employment, Humfree Override Contactor 63A, 2NO, 24V will be a steadfast aide in your task.

Baltelec strives to make the obtaining process as convenient and fast as doable for our customers. We offer detailed descriptions and high-quality portrayals of Humfree Override Contactor 63A, 2NO, 24V so that you can make an briefed choice. A team of connoisseurs is always ready to help you with any inquiries in the Contactors section connected to the electing and use of materials. We are persuaded that Humfree Override Contactor 63A, 2NO, 24V will meet your standards and become an vital element of your inventory for just 133.24 €.
