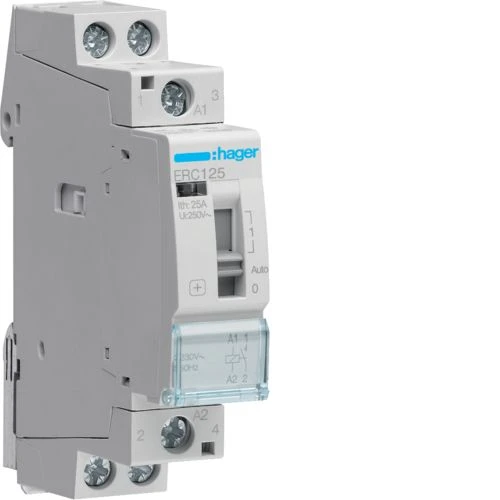

ERC125 - Override Contactor 25A, 1NO, 230V - Hager

Expected in 2-4 weeks
ERC125 - Override Contactor 25A, 1NO, 230V - Hager - Override Contactor 25A, 1NO, 230V - Hager - 0
ERC125 - Override Contactor 25A, 1NO, 230V - Hager
23,14 € excl. VAT
28,23 € incl. VAT
Text About:
Override Contactor 25A, 1NO, 230V - Hager
28,23 €
SPECIFICATIONS
Additional Information
type of order Relay
Main
Number of modules 1
rated operational voltage ue 230 V
Complementary
acceptable current load with ac7 category a 25 A
can be accessorized Yes
command voltage ac 230 V
connection cross-sect. flexible conductor 1 / 6mm²
contact rating with 230 v in ac7 category a 4.6 kW
depth of installed product 60 mm
electric endurance in number of cycles 30000
fluorescent lamps in duo circuit 1990 VA
inrush power absorbed 10.7 VA
local operation/hand operation Yes
max. power with fluorescent parallel lamps 810 VA
max. power with incandescent lamps 1900 W
search words Installation relay;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;
time of response when closing 25 ms
[in] rated current 25 A
acceptable current load with ac7 category b 8.5 A
connection cross-sect. rigid cable 1 / 10mm²
contact rating with 230 v in ac7 category b 880 W
dc control voltage 0 V
height of installed product 83 mm
max. load fluorescent lamp 950 VA
number of mechanical operations 100000
time of response when opening 15 ms
total power loss under in 2.5 W
connection cross-section of the control cable solid 1 / 10 mm²
type of connection with screw
width of installed product 17.85 mm
operating consumption 2.9 VA
storage/transport temperature -40…80 °C
thermal rated current outside of housings 25 A
tightening torque 1,2Nm
power dissipation per coil 1 W
type of contacts 1NO
power loss per contact 1.5 W
Rated insulation voltage 250 V
frequency 50
rated impulse withstand voltage 4 kV
Environment
european directive weee concerned
protection index ip IP2X
operating temperature -10…50 °C
About this product

The ERC125 - Override Contactor 25A, 1NO, 230V is devised to fulfill the requirements of professional purchasers, such as switchboard fabricators, cable technicians, upkeep firms, and industry fabricators. ERC125 presents remarkable performance and gain for specialists in the automation and control industry. This Override Contactor 25A, 1NO, 230V and other Contactors from Hager can be obtained the best price and procurement time through BALTELEC, a respected provider assisting consultants in their provision needs.

Customers who have opted for Hager Contactors have frequently approved the maker's stability. It has been noted that the excellent workmanship of ERC125 - Override Contactor 25A, 1NO, 230V extends to a extensive scope of operations. Its high-end characteristics make it perfect choice to meet diverse demands, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our team devotes in addressing industrial and tertiary professionals’ needs. We grasp the individual criteria and preferences of our clients in the industry. By collaborating with Baltelec.eu, your company gain access to the best fees and stock of top-tier products like ERC125 - Override Contactor 25A, 1NO, 230V from Hager at an affordable price. Our registered accounts receive added discounts and top-tier service.

Move quickly and procure ERC125 - Override Contactor 25A, 1NO, 230V at our well-established and easy-to-use virtual storefront. Don't delay in making this shrewd move that confirms the supreme quality and adheres to the particular needs of vendors like your organization.

Should you have any concerns or concerns about ERC125 - Override Contactor 25A, 1NO, 230V or any other Hager products, call us or refer to our Assistance center section below. We have compiled answers to standard issues to back you further in making an informed decision about industrial and tertiary electrical components.

Remember, ERC125 - Override Contactor 25A, 1NO, 230V from Hager is trustworthy, value-priced, and superior to opposing companies in the Contactors category. Feel free to make it a part of your installation instantly. Order at BaltElec, your reliable retailer for all your professional electrical equipment and automation needs.

In our Baltelec.eu virtual store you will discover Override Contactor 25A, 1NO, 230V - ERC125 worth 28.23 €, which will be a faithful and innovative solution for your demands. This object is created by the Hager brand using the newest technologies and fulfills the maximum standards of security and capability. We offer merchandise from the Contactors category that merge resilience and efficacy, which is an excellent preference for various roles. In defiance of whether you call for devices for small formation or for proficient industrial implementation, Override Contactor 25A, 1NO, 230V will be a secure associate in your work.

Baltelec labors to make the procuring process as comfortable and fast as feasible for our shoppers. We offer detailed portrayals and high-quality illustrations of Override Contactor 25A, 1NO, 230V so that you can make an versed choice. A team of specialists is always ready to help you with any questions in the Contactors section referencing to the electing and use of goods. We are sure that Override Contactor 25A, 1NO, 230V will meet your requirements and become an crucial element of your gear for just 28.23 €.

Customer Queries about ERC125 - Override Contactor 25A, 1NO, 230V:

  • What are the benefits of purchasing Hager ERC125 from BALTELEC?

    When your purchase Hager Override Contactor 25A, 1NO, 230V from baltelec.eu, you obtain authentic quality Hager Contactors products at the most favorable cost and lead time. Furthermore, registered accountsget additional savings and first-class attention.

  • Can Baltelec advise if Hager ERC125 is suitable for my contract?

    To make sure that Hager Override Contactor 25A, 1NO, 230V is appropriate for your use case, we offer thorough information regarding product's specifications, features, and compatibility. You can find this information on the dedicated page of the item model. If you seek further assistance, our customer support team is prepared to assist you in reaching an well-informed decision.

  • What guarantee coverage is provided for ERC125 - Override Contactor 25A, 1NO, 230V?

    Baltelec.eu team is committed to the reliability of the items we deliver. The regular warranty coverage for Hager Contactors including ERC125 is 12 months. However, it depends according to the individual product, product category, and could be extended. You can locate detailed guarantee information on the Hager ERC125 product page or by contacting our customer service representatives.

  • Do you arrange global shipping for Hager ERC125 as well as other Hager products?

    Certainly. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we offer worldwide shipping for Hager ERC125. Please be aware that shipping options, fees, and delivery times can differ depending on the shipping location. In the case of complex inquiries, kindly contact Baltelec.eu sales representatives.

  • Do Hager MBC provided by BALTELEC adhere to international norms for security and quality?

    Certainly. All Hager products provided at Baltelec web store conform to international norms such as IEC 60898-1 standard and carry the CE mark. These standards assure that the products fulfill stringent security, technical, dependability, and performance requirements.

  • Can BaltElec offer support on integrating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Absolutely!  Baltelec.eu recognizes the importance of renewable energy integration within community. Our team of professionals can support you in choosing the appropriate Hager products, to incorporate them into your renewable energy projects}. We can provide recommendations on integrating solar power systems, wind power converters, and additional sustainable options to optimize energy generation and efficiency.

  • Do you have energy-efficient options available within the Contactors category to support energy conservation efforts?

    Definitely!Yes! Baltelec website provides various green solutions in the category of Contactors that are in line with energy-saving goals. Our brand's Hager products, such as the ERC125, are crafted with energy efficiency in mind. By using these products into your electrical system, you can enhance energy usage and minimize environmental impact. Additionally, we present attractive pricing for our green Hager products,, making them an budget-friendly choice for supporting sustainability.

  • Are ERC125 sold by BALTELEC legitimate?

    Yes, we only provide original Hager products, such as ERC125. We source our products only through authorized distribution channels to guarantee their authenticity and superior quality.
