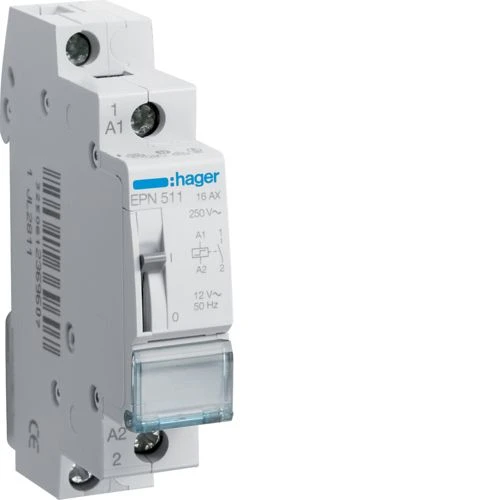

EPN511 - Latching relay 1NO 12V - Hager
Expected in 2-4 weeks
SPECIFICATIONS
Main
Number of modules
1
rated operational voltage ue
250 V
Complementary
command voltage ac
12 V
connection cross-sect. flexible conductor
1 / 6mm²
depth of installed product
63 mm
electrical durability at nominal load in ac21in operating cycles
150000
inrush power absorbed
25 VA
manual operation possible
Yes
max. power with fluorescent parallel lamps
900 VA
max. power with incandescent lamps
1800 W
max. temporisation
60 s
quiescent current
6 mA
type of latching relay
electromechanic
winding resistance
3.1 Ω
[in] rated current
16 A
connection cross-sect. rigid cable
1,5 / 10mm²
dc control voltage
0 V
height of installed product
83 mm
number of mechanical operations
500000
total power loss under in
1.2 W
number of contacts
1
type of connection
with screw
width of installed product
17.5 mm
pulse duration
50 ms
storage/transport temperature
-40…80 °C
tightening torque
1,6Nm
type of contacts
1NO
Rated insulation voltage
250 V
frequency
50 to 60 Hz
Environment
european directive weee
concerned
protection index ip
IP20
standard text
IEC/EN 60669-2
operating temperature
-5…40 °C
