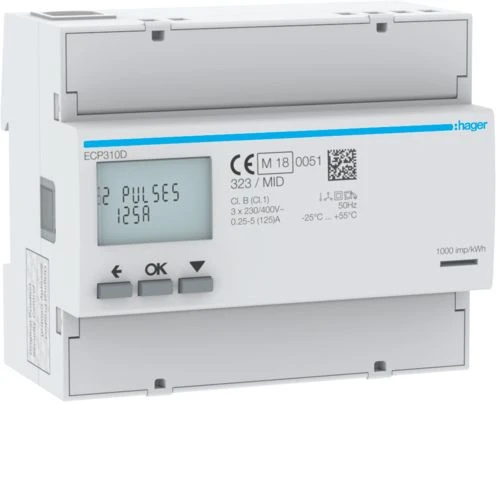

ECP310D - 3Ph kWhmeter direct 125A 6M S0 MID - Hager

Expected in 2-4 weeks

240,41 € excl. VAT

293,31 € incl. VAT

Text About:

3Ph kWhmeter direct 125A 6M S0 MID - Hager

In cart

293,31 €

SPECIFICATIONS

Additional Information

type of pole 3P+N

Main

Number of modules 6

rated operational voltage ue 92 / 480 V

type of supply voltage AC

Mounting type din-Rail

Complementary

depth of installed product 60 mm

max operating voltage 300 V

max. measurement circuit current 125 A

plage impulsion/kwh 1 / 200 Imp/kWh

power consumed 2 VA

precision class B

suitable for Purchase / supply

tariff model of kilowatt-hour meter Externa

type of pulse generator électrical

value of a pulse 100

wire cross section of metering entrance wire 50 mm²

[in] rated current 125 A

degree of pollution according to iec 60664 / iec 60947-2 2

height of installed product 92 mm

minimum operating current 0.02 A

principle of measurement Direct measurement

tarif type T1...T2 (230 V AC) / -

total power loss under in 0.6 W

type of counter 4 wires counter

wire cross section of metering outgoing wire 50 mm²

type of measuring instrument electronical

width of installed product 107 mm

pulse duration 30 / 100 ms

storage/transport temperature -25…70 °C

tightening torque 5Nm

reference current 5 A

Fixing mode DIN rail type O (symmetrical)

operating current 0.02 / 125 A

frequency measurement range 45 to 65 Hz

frequency 50

type of display retro illuminated display

supply voltage 400 V ± 20%

rated impulse withstand voltage 6 kV

Poles description 4 P

Environment

altitude 2000 m

certified product MID (Measuring Instruments Directive)

protection class isol.class II

european directive weee concerned

protection index ip IP20

standard text EN 50470-1 / 3,IEC 62053-21 / 23,IEC 61557-12

operating temperature -25…55 °C
