CCT15403 - Acti9 IHP+ 2C digital time switch 24 hours + 7 days - Schneider Electric

Expected in 2-4 weeks

214,74 € excl. VAT

261,98 € incl. VAT

Text About:

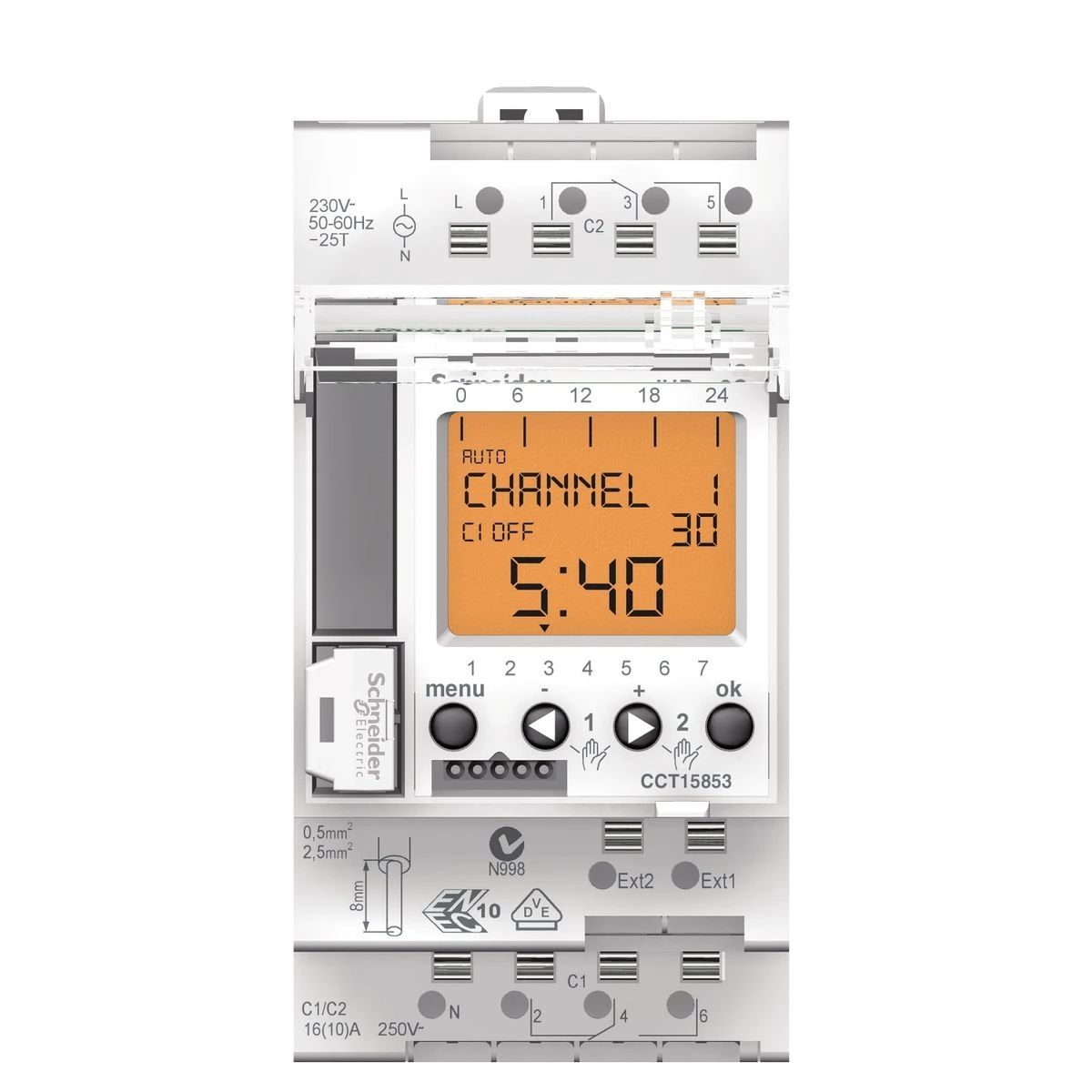

Acti9 IHP+ 2C digital time switch 24 hours + 7 days - Schneider Electric

In cart

261,98 €

SPECIFICATIONS

Main

Available equipment Memory key

Colour tint White (RAL 9003)

Device short name IHP

number of channels 2

Product Name Acti9 IHP

battery type Lithium

Complementary

9 mm pitches 5

product compatibility Mechanical compatibility with electrical distribution comb busbars

[ue] rated operational voltage 230 V AC +/- 10 % at 50/60 Hz

absence for holidays Yes

compatibility code IHP

Accuracy +/- 1 s/day 20 °C

maximum switching current 10 A - 250 V AC pf = 0.6
16 A - 250 V AC pf = 1

Handle front plate colour 85 mm

Product or component type Programmable digital time switch

battery life 6 year(s)

Cycle duration 24 hours + 7 days

market segment Small commercial

Connections - terminals screwless terminals

minimum interval duration 1 s

Language Lituanien
English
Russian
Latvian
Estonian
Ukrainian

Device application Building

function Pulse programming and random function

width (w) 45 mm

function available Pulse programming
Automatic winter/summer time changeover

Maximum number of switchings 84

updated by None

Display type Backlit LCD

Mounting support DIN rail

depth 66 mm

backup time 6 years time and program saving

Number of inputs 2 input(s) impulse and maintained

Power consumption in va 7 VA

type of setting Absence for holidays function
Random function

Time changeover Automatic

Environment

ip degree of protection IP20 B

Range of product Acti9

ambient air temperature for operation -10…50 °C
