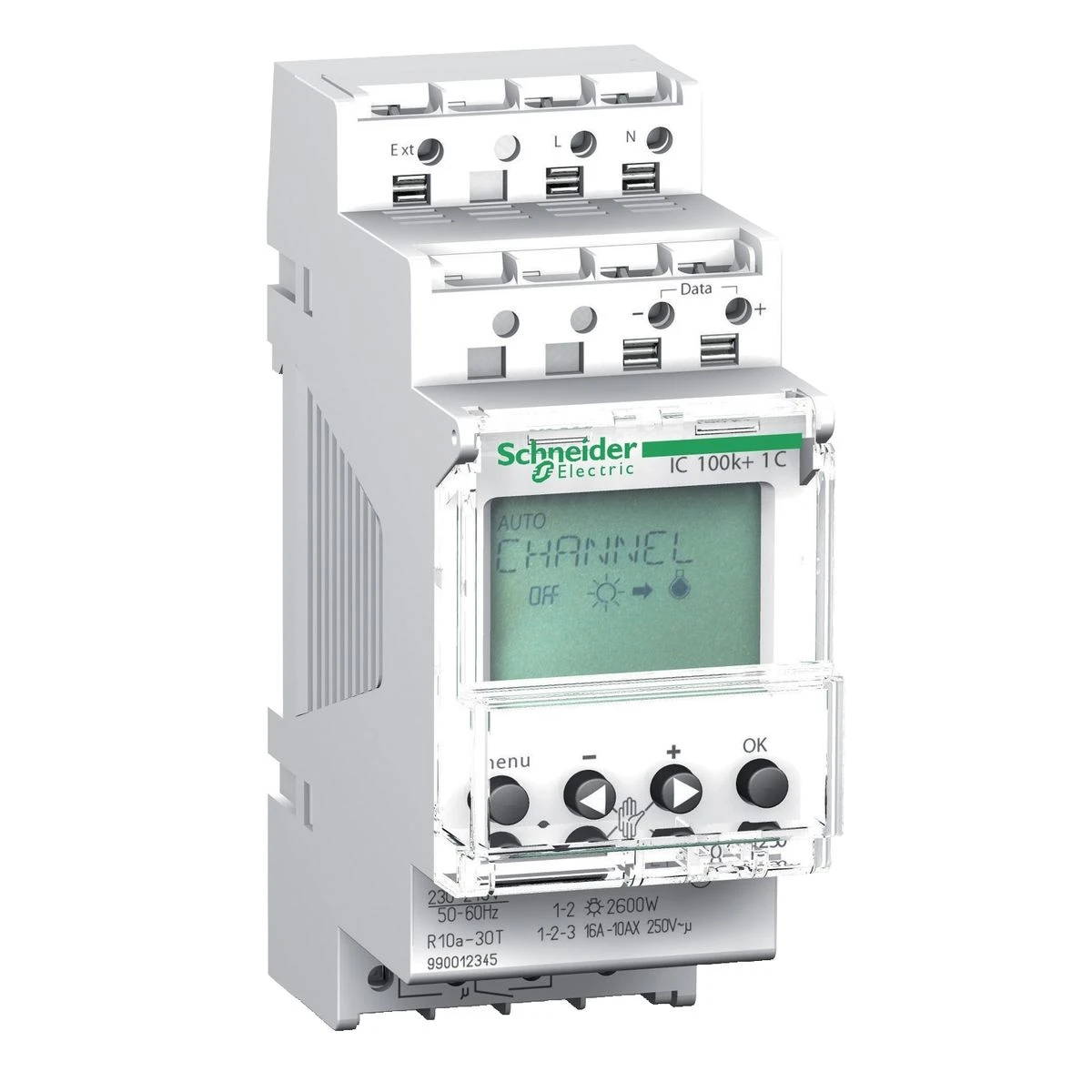

CCT15251 - Acti9 IC100k+ 1C twilight switch 1...99000 lux - Schneider Electric

Upon request only
CCT15251 - Acti9 IC100k+ 1C twilight switch 1...99000 lux - Schneider Electric - Acti9 IC100k+ 1C twilight switch 1...99000 lux - Schneider Electric - 0
CCT15251 - Acti9 IC100k+ 1C twilight switch 1...99000 lux - Schneider Electric
Text About:
Acti9 IC100k+ 1C twilight switch 1...99000 lux - Schneider Electric
SPECIFICATIONS
Main
Device short name IC100k
number of channels 1
Product Name Acti9 IC
Complementary
9 mm pitches 4
electrical insulation class Class II
[ue] rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz
compatibility code IC100k
Control type By brightness detection
maximum switching current 10 A - 250 V AC pf = 0.6
16 A - 250 V AC pf = 1
Brightness sensing type Digital wall-mounted cell
Handle front plate colour 90 mm
Product or component type Twilight switch
market segment Residential
Small commercial
Connections - terminals 2 x 2.5 mm² screwless terminals
Language Danish
Turkish
Estonian
Latvian
Swedish
German
Italian
English
French
Russian
Dutch
Finnish
Lituanien
Ukrainian
Device application Building
width (w) 36 mm
Net weight 183 g
depth 69 mm
light intensity adjustment 1…99000 lux
Load type 230 V AC halogen lamp: 2600 W
230 V AC incandescent lamp: 2600 W
parallel-corrected mercury and sodium vapour lamps: 800 VA
26 x 36 W non-corrected fluorescent tube with conventional ballast
20 x 58 W non-corrected fluorescent tube with conventional ballast
10 x 100 W non-corrected fluorescent tube with conventional ballast
26 x 36 W serial-corrected fluorescent tube with conventional ballast
20 x 58 W serial-corrected fluorescent tube with conventional ballast
10 x 100 W serial-corrected fluorescent tube with conventional ballast
26 x 36 W dual mounted fluorescent tube with conventional ballast
20 x 58 W dual mounted fluorescent tube with conventional ballast
10 x 100 W dual mounted fluorescent tube with conventional ballast
10 x 36 W parallel-corrected fluorescent tube with conventional ballast
6 x 58 W parallel-corrected fluorescent tube with conventional ballast
2 x 100 W parallel-corrected fluorescent tube with conventional ballast
18 x 11 W fluocompact lamp with electronic ballast
16 x 15 W fluocompact lamp with electronic ballast
16 x 20 W fluocompact lamp with electronic ballast
14 x 23 W fluocompact lamp with electronic ballast
22 x 7 W fluocompact lamp with electronic ballast
motor: 2300 VA
fluorescent tube with electronic ballast: 650 VA
Power consumption in va 3 VA
Provided equipment digital wall-mounted cell
programming kit for PC
digital switchboard cell
Time delay < 60 s
Environment
ip degree of protection IP20C
Range of product Acti9
ambient air temperature for operation -30…50 °C
standards EN 60529
