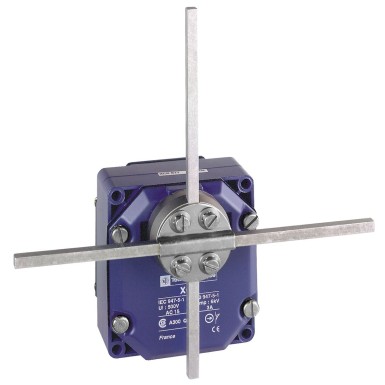

XCRE18 - Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) - Telemecanique - Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) - Telemecanique - 0

Pending restock

XCRE18 – Telemecanique

EAN: 3389110652185

161,52 € excl. VAT

200,28 € incl. VAT

Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) - Telemecanique

In cart

200,28 €

SPECIFICATIONS

Main

product range OsiSense XC

product specific application Manutention mécanique et de levage

contact element per direction of travel (control circuit) 2 par sens

name of the device XCR

type of product or equipment Commutateur de fin de course

control unit type Levier tige en croix à position maintenue métal tringle carrée 6 mm

range name Format spécial

sensor shape -

[ui] rated insulation voltage 300 V se conformer à UL 508
500 V (degré de pollution 3) se conformer à CEI 60947-1
500 V (degré de pollution 3) se conformer à VDE 0110
300 V se conformer à CSA C22.2 No 14

control head movement Tournant

head type Tête rotative

kind of approach Approche latérale, 2 sens

Complementary

contact description 2 x (1 "O" + 1 "F")

Handle front plate colour 95 mm

minimum torque for positive opening 0,7 N.m

[uimp] rated impulse withstand voltage 6 kV se conformer à CEI 60664
6 kV se conformer à CEI 60947-1

maximum angular travel 90 °
-90 °

minimum actuation torque 0,6 N.m

cable entry 1 entrée filetée pour presse-étoupe Pg 13,5, diamètre extérieur du câble : 9…12 mm se conformer à NF C 68-300

matter Métal

product weight 1,135 kg

description of iso n°1 terminals (13-14)NON !@ !(21-22)NC

fixing method Par le corps

electrical life 5000000 cycle, DC-13, inductive type de charge, 120 V, 4 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, inductive type de charge, 24 V, 7 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, inductive type de charge, 48 V, 10 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C

contact operation À action brusque

form of insulation between contacts Zb

body material Alliage de zinc

mechanical endurance 10000000 cycle

width (w) 85 mm

crankcase type Fixe

attack move Avec toute pièce mobile

position name 1

contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A se conformer à EN/CEI 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0,27 A se conformer à EN/CEI 60947-5-1 appendix A

depth 75 mm

maximum attack speed 1,5 m/s

minimum attack speed 0,01 m/min

positive aperture Avec

electrical connection Borniers à vis-étrier, capacité de serrage: 1 x 0,34…2 x 1,5 mm²

maximum resistance between terminals 25 MΩ se conformer à CEI 60255-7 catégorie 3

short circuit protection 10 A cartouche fusible, type gG

Poles description 4

Environment

ip degree of protection IP54 se conformer à CEI 60529

product certificates CCC
CSA

overvoltage category Classe I se conformer à CEI 61140
Classe I se conformer à NF C 20-030

standards CEI 60204-1
CSA C22.2 No 14
CEI 60947-5-1
EN 60204-1
EN 60947-5-1
NF C 79-130

operating ambient air temperature -25…70 °C

storage room temperature -40…70 °C

mechanical shock resistance 68 gn se conformer à CEI 60068-2-27

vibration resistance 9 gn (f= 10…500 Hz) se conformer à CEI 60068-2-6

protective treatment TC
