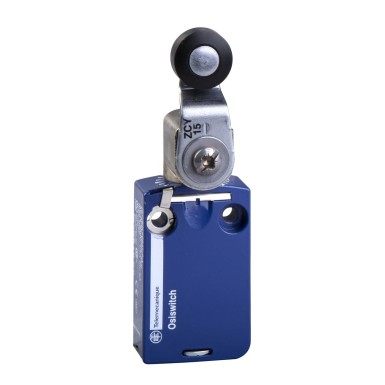

XCMD2115L5 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, 5 m - Telemecanique - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, 5 m - Telemecanique - 0

Pending restock

XCMD2115L5 – Telemecanique

EAN: 3389118051904

42,43 € excl. VAT

52,62 € incl. VAT

Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, 5 m - Telemecanique

In cart

52,62 €

SPECIFICATIONS

Main

product range Fins de course Telemecanique XC Standard

name of the device XCMD

type of product or equipment Commutateur de fin de course

control unit type Levier à galet à rappel thermoplastique

range name Format standard

sensor shape Miniature

cable length 5 m

[ui] rated insulation voltage 300 V (degré de pollution 3) se conformer à UL 508
400 V (degré de pollution 3) se conformer à CEI 60947-5-1
300 V (degré de pollution 3) se conformer à CSA C22.2 No 14

control head movement Tournant

head type Tête rotative

kind of approach Approche latérale, 2 sens

Complementary

cable composition 5 x 0,75 mm²

contact description 1 "O" + 1 "F"

Handle front plate colour 50 mm

[uimp] rated impulse withstand voltage 4 kV se conformer à CEI 60664
4 kV se conformer à CEI 60947-1

matter Métal

minimal actuation effort 0,1 N

product weight 0,18 kg

fixing method Par le corps

electrical life 5000000 cycle, DC-13, 120 V, 1 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, 24 V, 3 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, 48 V, 2 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C

minimum force for positive opening 0,5 N

contact operation À action brusque

form of insulation between contacts Zb

body material Zamak

mechanical endurance 10000000 cycle

width (w) 30 mm

crankcase type Fixe

isolation PvR

attack move Avec came 30°

contact code designation B300, AC-15 (Ue = 240 V), Ie = 1,5 A se conformer à EN/CEI 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0,1 A se conformer à EN/CEI 60947-5-1 appendix A

head material Zamak

depth 16 mm

maximum attack speed 1,5 m/s

positive aperture Avec

electrical connection Connecteur à câble amovible

lanes 24/31 mm

maximum resistance between terminals 25 mOhm se conformer à CEI 60255-7 catégorie 3

short circuit protection 6 A cartouche fusible, type gG

Poles description 2

Environment

ip degree of protection IP66 se conformer à CEI 60529
IP67 se conformer à CEI 60529
IP68 se conformer à CEI 60529

product certificates CSA
CCC
UL

operating ambient temperature -25…70 °C

overvoltage category Classe I se conformer à CEI 61140
Classe I se conformer à NF C 20-030

standards UL 508
EN/CEI 60204-1
CSA C22.2 No 14
EN/CEI 60947-5-1

shock resistance ik IK06 se conformer à EN 62262

storage room temperature -40…70 °C

mechanical shock resistance 25 gn pour 18 ms se conformer à CEI 60068-2-27

vibration resistance 5 gn (f= 10…500 Hz) se conformer à CEI 60068-2-6

protective treatment TC
