XCKM121 - Limit switch, Limit switches XC Standard, XCKM, thermoplastic roller lever plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric - Limit switch, Limit switches XC Standard, XCKM, thermoplastic roller lever plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric - 0

Pending restock

XCKM121 – Schneider Electric

EAN: 3389110646450

29,62 € excl. VAT

36,73 € incl. VAT

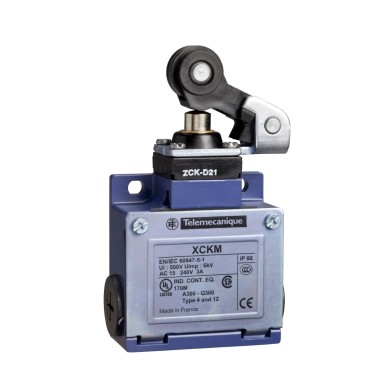

Limit switch, Limit switches XC Standard, XCKM, thermoplastic roller lever plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric

In cart

36,73 €

SPECIFICATIONS

Main

product range Fins de course Telemecanique XC Standard

[ithe] thermal current under enclosure 10 A CA

name of the device XCKM

type of product or equipment Commutateur de fin de course

control unit type Poussoir levier à galet à rappel thermoplastique

range name Format standard

[ui] rated insulation voltage 300 V se conformer à UL 508
500 V (degré de pollution 3) se conformer à CEI 60947-1
300 V se conformer à CSA C22.2 No 14

control head movement Linéaire

type of engagement 1

head type Tête de piston

kind of approach Approche latérale, 1 sens

Complementary

contact description 1 "O" + 1 "F"

Handle front plate colour 64 mm

[uimp] rated impulse withstand voltage 6 kV se conformer à CEI 60664
6 kV se conformer à CEI 60947-1

cable entry 3 entrées taraudées pour presse-étoupe Pg 11

matter Métal

minimal actuation effort 8 N

product weight 0,3 kg

description of iso n°1 terminals (21-22)NC
(13-14)NON

fixing method Par le corps

electrical life 5000000 cycle, DC-13, inductive type de charge, 120 V, 4 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, inductive type de charge, 24 V, 7 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, inductive type de charge, 48 V, 10 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C

minimum force for positive opening 24 N

contact operation À action brusque

form of insulation between contacts Zb

body material Zamak

mechanical endurance 20000000 cycle

width (w) 64 mm

crankcase type Fixe

attack move Avec came 30°

contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A se conformer à EN/CEI 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0,27 A se conformer à EN/CEI 60947-5-1 appendix A

depth 30 mm

maximum attack speed 1,5 m/s

minimum attack speed 0,01 m/min

positive aperture Avec

electrical connection Borniers à vis-étrier, capacité de serrage: 1 x 0,34…2 x 1,5 mm²

maximum resistance between terminals 25 MΩ se conformer à CEI 60255-7 catégorie 3

short circuit protection 10 A cartouche fusible, type gG

Poles description 2

Environment

ip degree of protection IP66 se conformer à EN/CEI 60529

product certificates CCC
UL
CSA

class of protection against electric shock Classe I se conformer à CEI 61140
Classe I se conformer à NF C 20-030

operating ambient temperature -25…70 °C

standards CSA C22.2 No 14
CEI 60204-1
UL 508
CEI 60947-5-1
EN 60947-5-1
EN 60204-1

shock resistance ik IK05 se conformer à EN 50102

storage room temperature -40…70 °C

mechanical shock resistance 50 gn pour 11 ms se conformer à EN/CEI 60068-2-27

vibration resistance 25 gn (f= 10…500 Hz) se conformer à EN/CEI 60068-2-6

protective treatment TC

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric XCKM121 is a industrial Limit Switches XC product designed for companies. BaltElec specializes in wholesale and product distribution in Estonia, Latvia, Lithuania, and Finland.

Original Schneider Electric product, certificates and compliance documents available.
Project pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with trusted couriers.
Technical support and application suitability advice based on your requirements.

Price: Request a special offer. The price depends on quantity, delivery, and payment terms.

Limit Switches XC specifications may vary by configuration. For an exact match, please send us your requirements or check the technical data sheet.
