XCKJ10541 - Limit switch, XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, Pg13 - Telemecanique - Limit switch, XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, Pg13 - Telemecanique - 0

Pending restock

XCKJ10541 – Telemecanique

EAN: 3389110646030

45,47 € excl. VAT

56,39 € incl. VAT

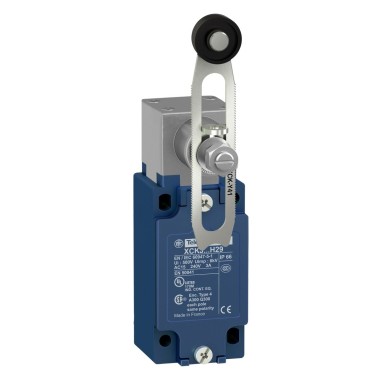

Limit switch, XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, Pg13 - Telemecanique

In cart

56,39 €

SPECIFICATIONS

Main

product range Fins de course Telemecanique XC Standard

[ithe] thermal current under enclosure 10 A

name of the device XCKJ

type of product or equipment Commutateur de fin de course

control unit type Levier à galet à rappel thermoplastique longueur variable

range name Format standard

sensor shape -

[ui] rated insulation voltage 300 V se conformer à UL 508
500 V (degré de pollution 3) se conformer à CEI 60947-1
300 V se conformer à CSA C22.2 No 14

control head movement Tournant

head type Tête rotative

kind of approach Approche latérale, 1 ou 2 sens programmables

Complementary

[ie] rated operational current 3 A à 240 V, AC-15, A300 se conformer à EN/CEI 60947-5-1 appendix A
0,27 A à 250 V, DC-13, Q300 se conformer à EN/CEI 60947-5-1 appendix A

contact description 1 "O" + 1 "F"

Handle front plate colour 77 mm

[uimp] rated impulse withstand voltage 6 kV se conformer à CEI 60664
6 kV se conformer à CEI 60947-1

minimum actuation torque 0,25 N.m

cable entry 1 entrée filetée pour presse-étoupe Pg 13,5, diamètre extérieur du câble : 9…12 mm

matter Métal

product weight 0,485 kg

description of iso n°1 terminals (21-22)NC
(13-14)NON

fixing method Par le corps

electrical life 5000000 cycle, DC-13, inductive type de charge, 120 V, 4 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, inductive type de charge, 24 V, 10 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
5000000 cycle, DC-13, inductive type de charge, 48 V, 7 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C

contact operation À action brusque

form of insulation between contacts Zb

body material Zamak

mechanical endurance 30000000 cycle

width (w) 40 mm

crankcase type Fixe

attack move Avec came 30°

position name 1

head material Zamak

depth 44 mm

maximum attack speed 1,5 m/s

positive aperture Sans

electrical connection Borniers à vis-étrier, capacité de serrage: 1 x 0,34…2 x 1,5 mm²

maximum resistance between terminals 25 MΩ se conformer à CEI 60255-7 catégorie 3

short circuit protection 10 A cartouche fusible, type gG

Poles description 2

Environment

ip degree of protection IP66 se conformer à CEI 60529

product certificates CCC
UL
CSA

overvoltage category Classe I se conformer à CEI 61140
Classe I se conformer à NF C 20-030

standards CENELEC EN 50041
EN 60204-1
CSA C22.2 No 14
CEI 60204-1
UL 508
EN 60947-5-1
CEI 60947-5-1

shock resistance ik IK07 se conformer à EN 50102

operating ambient air temperature -25…70 °C

storage room temperature -40…70 °C

mechanical shock resistance 50 gn pour 11 ms se conformer à CEI 60068-2-27

vibration resistance 25 gn (f= 10…500 Hz) se conformer à CEI 60068-2-6

protective treatment TH
