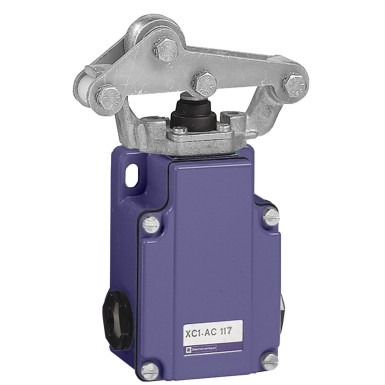

XC1AC117 - Limit switch, Limit switches XC Standard, XC1AC, reinforced roller lever, 1C/O - Schneider Electric - Limit switch, Limit switches XC Standard, XC1AC, reinforced roller lever, 1C/O - Schneider Electric - 0

Upon request only

XC1AC117 – Schneider Electric

EAN: 3389110315141

Limit switch, Limit switches XC Standard, XC1AC, reinforced roller lever, 1C/O - Schneider Electric

SPECIFICATIONS

Main

product range OsiSense XC

[ithe] thermal current under enclosure 10 A

product specific application Manutention

name of the device XC1AC

type of product or equipment Commutateur de fin de course

control unit type Levier à galet à rappel métal renforcé

range name Format spécial

sensor shape -

[ui] rated insulation voltage 500 V CA se conformer à CEI 60947-5-1
500 V CA se conformer à NF C 20-040
600 V CC se conformer à CEI 60947-5-1
600 V CC se conformer à NF C 20-040
600 V CA se conformer à CSA C22.2 No 14
600 V CC se conformer à CSA C22.2 No 14

control head movement Linéaire

head type Tête de piston

kind of approach Approche latérale, 2 sens

Complementary

contact description 1 F/O

Handle front plate colour 139 mm

cable entry 3 entrées taraudées pour presse-étoupe Pg 13,5, diamètre extérieur du câble : 9…12 mm

matter Métal

minimal actuation effort 29 N

product weight 0,595 kg

description of iso n°1 terminals (11-12)NC
(13-14)NON

fixing method Par le corps

electrical life 1000000 cycle, AC-15 f = 50/60 Hz, inductive type de charge, 110 V, 900 VA, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
1000000 cycle, AC-15 f = 50/60 Hz, inductive type de charge, 230 V, 1900 VA, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
1000000 cycle, AC-15 f = 50/60 Hz, inductive type de charge, 48 V, 450 VA, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
1000000 cycle, DC-13, inductive type de charge, 110 V, 100 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
1000000 cycle, DC-13, inductive type de charge, 230 V, 95 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
1000000 cycle, DC-13, inductive type de charge, 48 V, 100 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
3000000 cycle, AC-15 f = 50/60 Hz, inductive type de charge, 110 V, 350 VA, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
3000000 cycle, AC-15 f = 50/60 Hz, inductive type de charge, 230 V, 430 VA, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
3000000 cycle, AC-15 f = 50/60 Hz, inductive type de charge, 48 V, 170 VA, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
3000000 cycle, DC-13, inductive type de charge, 110 V, 40 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
3000000 cycle, DC-13, inductive type de charge, 230 V, 33 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C
3000000 cycle, DC-13, inductive type de charge, 48 V, 35 W, cadence de fonctionnement <60 cyc/mn, facteur de charge: 0,5 se conformer à CEI 60947-5-1 appendix C

contact operation À action dépendante

form of insulation between contacts Za

mechanical endurance 10000000 cycle

width (w) 77 mm

crankcase type Fixe

attack move Avec came 30°

position name 1

depth 44 mm

maximum attack speed 1 m/s depuis la gauche
0,5 m/s depuis la droite

positive aperture Sans

electrical connection Borniers à vis-étrier, capacité de serrage: 1 x 0,5…1 x 2,5 mm²

mounting position Toutes positions

maximum resistance between terminals 8 mOhm

short circuit protection 10 A cartouche fusible, type gG

Poles description 1

Environment

ip degree of protection IP65 se conformer à CEI 60529
IP65 se conformer à NF C 20-010

product certificates CSA

class of protection against electric shock Classe I se conformer à CEI 61140
Classe I se conformer à NF C 20-030

standards CEI 60337-1
CEI 60947-5-1
CSA C22.2 No 14
VDE 0660-200
EN 60947-5-1

operating ambient air temperature -25…70 °C

storage room temperature -40…70 °C

mechanical shock resistance 95 gn pour 11 ms se conformer à CEI 60068-2-27

vibration resistance 9 gn (f= 10…500 Hz) se conformer à CEI 60068-2-6

protective treatment TC
