XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric - 0

Pending restock

XY2CJS19 – Schneider Electric

EAN: 3389119619547

44,86 € excl. VAT

55,62 € incl. VAT

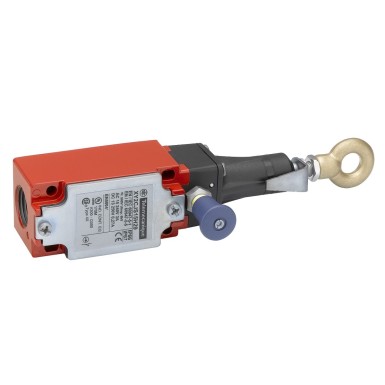

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric

In cart

55,62 €

SPECIFICATIONS

Main

product range Arrêt d'urgence à câble Telemecanique XY2C

[ithe] thermal current under enclosure 6 A

reliability data B10d = 500000 valeur pour une durée de vie de 20 ans limitée par l'usure ou le contact se conformer à CEI 60947-5-5

name of the device XY2C

type of product or equipment Verrouillage de l'arrêt d'urgence à câble

[ui] rated insulation voltage 400 V (degré de pollution 3) se conformer à EN/CEI 60947-1
300 V se conformer à UL 508
300 V se conformer à CSA C22.2 No 14

security level Jusqu'à PL = e avec système de surveillance approprié et câblage correct se conformer à EN/ISO 13849-1
Jusqu'à catégorie 4 avec système de surveillance approprié et câblage correct se conformer à EN/ISO 13849-1
Jusqu'à SIL 3 avec système de surveillance approprié et câblage correct se conformer à EN/CEI 61508

reset En tirant sur le bouton

Complementary

[ie] rated operational current 0,1 A à 250 V, DC-13, R300 se conformer à EN/CEI 60947-5-1 appendix A
1,5 A à 240 V, AC-15, B300 se conformer à EN/CEI 60947-5-1 appendix A

compatibility code XY2CJ

contact description 2 "O" + 1 "F"

number of cables 1

number of cable entries 1 entrée taraudé pour PG13,5 presse étoupe

tightening torque 0,8…1,2 N.m

[uimp] rated impulse withstand voltage 4 kV se conformer à EN/CEI 60947-1

product weight 0,455 kg

description of iso n°1 terminals (31-32)NC
(21-22)NC
(13-14)NON

marking CE

Housing colour Rouge RAL 3000

connection mode Borniers à vis-étrier, 1 x 0,34…1 x 1 mm²
Borniers à vis-étrier, 1 x 0,34…2 x 0,75 mm²

contact operation À action dépendante

distance between cable supports 5 m

body material Zamak

mechanical endurance 100000 cycle

Local signalling Indicateur de couleur

maximum trip cable length 20 m

head material Polyamide

cover material Acier galvanisé

positive aperture Avec se conformer à EN/CEI 60947-5-1

trigger cable anchor point Côté droite ou gauche

maximum resistance between terminals 25 MΩ se conformer à EN/CEI 60255-7 catégorie 3
25 MΩ se conformer à NF C 93-050 méthode A

short circuit protection 6 A cartouche fusible type gG se conformer à EN/CEI 60269

Environment

ip degree of protection IP66 se conformer à CEI 60529
IP67 se conformer à CEI 60529

product certificates UL dispositifs d'arrêt d'urgence catégorie NISD
CSA
CCC
EAC

operating ambient temperature -25…70 °C

overvoltage category Classe I se conformer à EN/CEI 61140

standards Directive machine 2006/42/EC
UL 508
EN/CEI 60947-5-1
EN/ISO 13850
EN/CEI 60204-1
CSA C22.2 No 14
Directive sur les équipements de travail 2009/104 / CE
EN/CEI 60947-5-5

storage room temperature -40…70 °C

mechanical shock resistance 50 gn 11 ms se conformer à EN/CEI 60068-2-27

vibration resistance 10 gn (f= 10…150 Hz) se conformer à EN/CEI 60068-2-6

protective treatment TC
