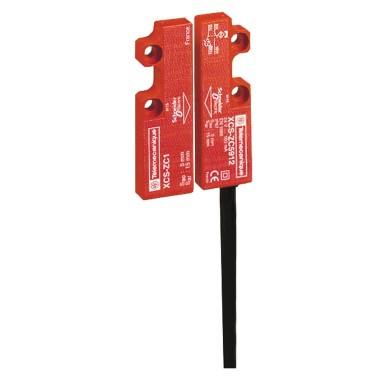

XCSDMC5905 - Preventa XCSDMC - switch. electromag. coded - plast. - 1O+1F,1O scale. - 5m cable - Schneider Electric - Preventa XCSDMC - switch. electromag. coded - plast. - 1O+1F,1O scale. - 5m cable - Schneider Electric - 0

Pending restock

XCSDMC5905 – Schneider Electric

EAN: 3389110971729

44,80 € excl. VAT

55,55 € incl. VAT

Preventa XCSDMC - switch. electromag. coded - plast. - 1O+1F,1O scale. - 5m cable - Schneider Electric

In cart

55,55 €

SPECIFICATIONS

Main

conception Rectangulaire compact

product range Interrupteurs de sécurité Telemecanique XCS

reliability data B10d = 50000000 valeur pour une durée de vie de 20 ans limitée par l'usure ou le contact

type of product or equipment Interrupteur électromagnétique codé

cable length 5 m

[ui] rated insulation voltage 100 V CC

security level Jusqu'à catégorie 4 avec système de surveillance approprié et câblage correct se conformer à EN/ISO 13849-1
Jusqu'à PL = e avec système de surveillance approprié et câblage correct se conformer à EN/ISO 13849-1
Jusqu'à SIL 3 avec système de surveillance approprié et câblage correct se conformer à EN/CEI 61508

approach directions 3 directions

component name XCSDMC

Complementary

[ie] rated operational current 100 mA

[ue] rated operational voltage 24 V CC

cable composition 4 x 0,25 mm²

[his] scope of work 5 mm

[ics] rated service breaking capacity 10 VA

contact description 1 "O" + 1 "F"

[sar] trigger distance 15 mm

Handle front plate colour 51 mm

[uimp] rated impulse withstand voltage 2,5 kV se conformer à EN/CEI 60947-5-1

case material PBT thermoplastique

dimension 51 x 16 x 7 mm

matter Plastique

product weight 0,101 kg

contact operation Échelonné

contact material Rhodium

width (w) 16 mm

switching frequency 150 Hz

cable material PVC

switching capacity in ma 0,1…100 mA

depth 7 mm

electrical stamina 1200000 cycle

electrical connection Pré-câblé

short circuit protection 500 mA fusible à cartouche externe type gG (gl)

resistance between terminals 10 Ohm

Poles description 2

maximum cut-off voltage 100 V CC

Environment

ip degree of protection IP66 se conformer à CEI 60529
IP67 se conformer à CEI 60529

product certificates UL
CSA

class of protection against electric shock Classe II se conformer à EN/CEI 61140

standards ISO 14119
EN/ISO 12100
EN/CEI 60947-5-1
CSA C22.2 No 14
EN/CEI 60204-1
UL 508

operating ambient air temperature -25…85 °C

sensitivity to maximum magnetic fields 0,3 mT

storage room temperature -40…85 °C

mechanical shock resistance 30 gn pour 11 ms se conformer à CEI 60068-2-27

vibration resistance 10 gn (f= 10…150 Hz) se conformer à CEI 60068-2-6

protective treatment TH

insulation resistance 1000 MΩ
