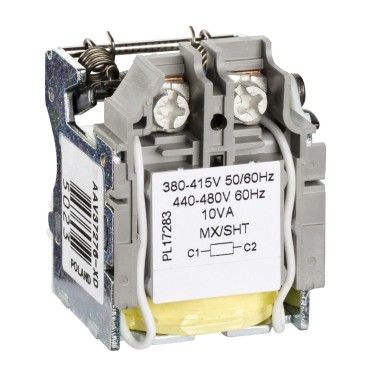

LV429388 - Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections - Schneider Electric - Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections - Schneider Electric - 0

Pending restock

LV429388 – Schneider Electric

EAN: 3606480019104

34,48 € excl. VAT

42,75 € incl. VAT

Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections - Schneider Electric

In cart

42,75 €

SPECIFICATIONS

Main

product range ComPacT NSX100...250
ComPacT NSX100...250 nouvelle génération
ComPacT NSX400...630
ComPacT NSX400...630 nouvelle génération
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC nouvelle génération
ComPacT NSX100...250 DC PV
ComPacT NSX100...250 DC PV nouvelle génération
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC nouvelle génération
ComPacT NSX400...630 DC PV
ComPacT NSX400...630 DC PV nouvelle génération

Range ComPacT

[uc] control circuit voltage 380...415 V CA 50 Hz
440...480 V CA 60 Hz

name of the device MX

type of product or equipment Tension de déclenchement

voltage release type Bobine d'ouverture
Déclencheur d'ouverture à émission MX (shunt trip release = shunt trip)

Complementary

operating threshold 0,7 à 1,1 x Un ouverture

application Contrôle

auxiliary connection terminal Ressort 0,5…1,5 mm² (4 x 1,5 mm² + 2 x 1 mm² + 2 x 0,14 mm²)

power start current 10 VA

range compatibility ComPacT nouvelle génération (ComPacT NSX nouvelle génération)
ComPacT nouvelle génération (ComPacT NSX DC nouvelle génération)
ComPacT (ComPacT NSX)
ComPacT (ComPacT NSX DC)
EasyPact (EasyPact CVS)
PowerPact (PowerPact Multistandard)

response time 50 ms

control signal type Maintenu
Impulsion

pulse duration >= 20 ms

wire stripping length 7 mm

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

LV429388 Schneider Electric is a industrial Compact NSX product designed for enterprises. BaltElec specializes in wholesale and supply in Estonia, Latvia, Lithuania, and Finland.

Authentic Schneider Electric product, documentation available on request.
Volume-based pricing – request a quote for larger quantities (MOQ may apply).
Efficient logistics across the Baltics and Finland; cooperation with trusted couriers.
Technical support and selection assistance based on your requirements.

Pricing: Request a special offer. The price depends on quantity, delivery, and payment terms.

Compact NSX specifications may vary by configuration. For an exact match, please send us your requirements or check the technical data sheet.

FAQ for LV429388 - Schneider Electric

Does BaltElec offer wholesale prices for LV429388?

Yes, project discounts are available. Send us a list of required quantities (e.g. Schneider Electric, LV429388, 5 pcs) and we’ll prepare a personalized quotation.
What is the availability and lead time for LV429388 in the Baltics and Finland?

We provide reliable logistics for deliveries to Estonia, Latvia, Lithuania, and Finland. Exact lead time depends on quantity and batch availability, confirmed upon quotation.
Is LV429388 by Schneider Electric an original product?

Yes. We only sell Schneider Electric original products with factory warranty. Compliance certificates are available on request.
Is LV429388 suitable for my Compact NSX application?

We help confirm compatibility efficiently. Please provide parameters (voltage, current, environment, standards), and we’ll compare them to Schneider Electric technical requirements.
How does delivery and invoicing work?

We deliver via logistics partner to Estonia, Latvia, Lithuania, and Finland. Invoicing is done according to agreement; projects and larger orders are priced individually.
