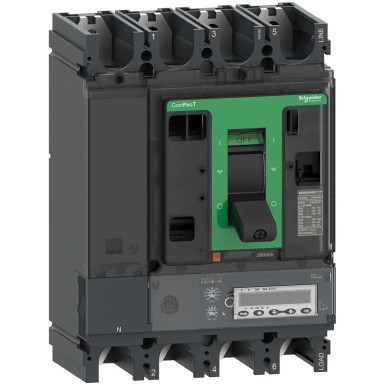

C40R45E400 - Circuit breaker, ComPacT NSX400R, 200kA/415VAC, 4P, MicroLogic 5.3E trip unit 400A - Schneider Electric - Circuit breaker, ComPacT NSX400R, 200kA/415VAC, 4P, MicroLogic 5.3E trip unit 400A - Schneider Electric - 0

Pending restock

C40R45E400 – Schneider Electric

EAN: 3606481988928

1 226,34 € excl. VAT

1 520,66 € incl. VAT

Circuit breaker, ComPacT NSX400R, 200kA/415VAC, 4P, MicroLogic 5.3E trip unit 400A - Schneider Electric

In cart

1 520,66 €

SPECIFICATIONS

Main

Range ComPacT nouvelle génération

sectioning ability Oui se conformer à EN/CEI 60947-2

job category Catégorie A

name of the device NSX400R

type of product or equipment Disjoncteur

Product Name ComPacT NSX nouvelle génération

[ui] rated insulation voltage 800 V CA 50/60 Hz

trigger protection functions LSI

circuit breaker installation mode Fixe

performance level R 200 kA 415 V CA

neutral pole position Gauche

trigger name Micrologic 5.3 E

type of trigger Électronique

ultimate short-circuit breaking capacity [icu] 200 kA Icu à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
200 kA Icu à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
200 kA Icu à 440 V CA 50/60 Hz se conformer à CEI 60947-2
80 kA Icu à 500 V CA 50/60 Hz se conformer à CEI 60947-2
65 kA Icu à 525 V CA 50/60 Hz se conformer à CEI 60947-2
45 kA Icu à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

protected poles 4d
3D + OSN
3d + N/2
3d

Complementary

"no" connection 45 mm

[in] rated operational current 400 A à 40 °C

[ue] rated operational voltage 690 V CA 50/60 Hz

application Distribution

[ics] rated service breaking capacity 200 kA à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
200 kA à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
200 kA à 440 V CA 50/60 Hz se conformer à CEI 60947-2
80 kA à 500 V CA 50/60 Hz se conformer à CEI 60947-2
65 kA à 525 V CA 50/60 Hz se conformer à CEI 60947-2
45 kA à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

short-time protection threshold setting range [isd] 1,5...10 x Ir

Handle front plate colour 255 mm

trigger caliber 400 A à 40 °C

[uimp] rated impulse withstand voltage 8 kV

product weight 7,9 kg

tsd short time protection time delay setting Réglable 5 positions

electrical life 12000 cycle à 440 V In/2
6000 cycle à 440 V In
6000 cycle à 690 V In/2
3000 cycle à 690 V In

setting the differential protection time delay δt Réglable 9 positions

type of measurement Compteur d'énergie

Data recording Historiques temps emboutissage et tableaux des événements
Valeurs instantanées et de demande
Qualité d'alimentation
Mesure de l'énergie
Maximètres/minimètres
Demande de courant et puissance
Indicateurs de maintenance
Paramètres de protection et d'alarme

mechanical endurance 15000 cycle

width (w) 185 mm

network frequency 50/60 Hz

thermal memory 20 minutes avant et après le déclenchement

Local signalling pourprêt à fonctionner DEL clignotante (vert)
poursurcharge DEL 105 % Ir (rouge)
poursurcharge DEL 90 % Ir (orange)

long time protection time delay setting range [tr] 15…400 s à 1,5 x Ir
0,5…16 s à 6 x Ir
0,35…11 s à 7,2 x Ir

short time protection time delay setting range [tsd] 0…0,4 s I²t=off
0,1…0,4 s I²t=on

setting range of the long-time protection threshold [ir] (thermal protection) 160...400 A

upstream connection Façade

downstream connection Façade

instantaneous protection threshold setting range [ii] (short-circuit protection) 1,5…12 x In

number of slots for electrical auxiliaries 6 slot(s)

mounting bracket Plaque arrière

neutral protection setting 0,5 x Ir (3d + N/2)
1 x Ir (4d)
1,6 x Ir (3D + OSN)
Aucune protection (3d)

depth (p) 110 mm

Network type CA

differential protection Sans

mounting position Horizontal et vertical
Flat on the back

power loss per pole 19,2 W

tr long time protection time delay setting Réglable

instantaneous protection sensor setting ii (short circuit protection) Réglable

ir long time protection sensor setting (thermal protection) Réglable 9 positions

order type Par maneton

type of display Afficheur LCD

kind of protection L : for protection surcharge (long retard)
S : for protection court retard
I : for protection instantanée contre court-circuit

zsi logic selective latch area Avec

Poles description 4P

Environment

degree of pollution 3 se conformer à CEI 60664-1

ip degree of protection IP40 se conformer à CEI 60529

operating altitude 0...2000 m sans réduction de courant
2000 m...5000 m avec réduction de courant

product certificates CCC
EAC
Marine

class of protection against electric shock Classe II

operating ambient temperature -25…70 °C

overvoltage category Classe II

standards EN/CEI 60947

relative humidity 0…95 %

shock resistance ik IK07 se conformer à CEI 62262

storage room temperature -40…85 °C
