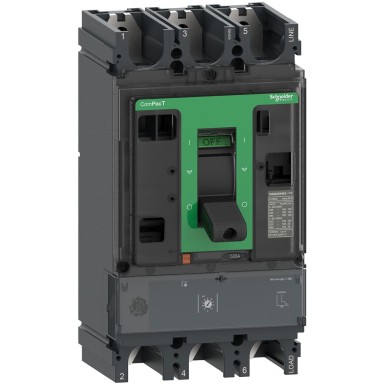

C40N31M320 - Circuit breaker, ComPacT NSX400N, 50kA/415VAC, 3P, MicroLogic 1.3M trip unit 320A - Schneider Electric - Circuit breaker, ComPacT NSX400N, 50kA/415VAC, 3P, MicroLogic 1.3M trip unit 320A - Schneider Electric - 0

Pending restock

C40N31M320 – Schneider Electric

EAN: 3606482002708

459,81 € excl. VAT

570,16 € incl. VAT

Circuit breaker, ComPacT NSX400N, 50kA/415VAC, 3P, MicroLogic 1.3M trip unit 320A - Schneider Electric

In cart

570,16 €

SPECIFICATIONS

Main

Range ComPacT nouvelle génération

sectioning ability Oui se conformer à EN/CEI 60947-2

job category Catégorie A

name of the device NSX400N

type of product or equipment Disjoncteur

Product Name ComPacT NSX nouvelle génération

[ui] rated insulation voltage 800 V CA 50/60 Hz

trigger protection functions SI

circuit breaker installation mode Fixe

performance level N 50 kA 415 V CA

trigger name Micrologic 1.3 M

type of trigger Électronique

ultimate short-circuit breaking capacity [icu] 85 kA Icu à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA Icu à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
42 kA Icu à 440 V CA 50/60 Hz se conformer à CEI 60947-2
30 kA Icu à 500 V CA 50/60 Hz se conformer à CEI 60947-2
22 kA Icu à 525 V CA 50/60 Hz se conformer à CEI 60947-2
10 kA Icu à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA à 480 V CA 50/60 Hz se conformer à UL 508

protected poles 3d

Complementary

"no" connection 45 mm

[in] rated operational current 320 A à 65 °C

[ue] rated operational voltage 690 V CA 50/60 Hz

application Protection moteur

[ics] rated service breaking capacity 85 kA à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
42 kA à 440 V CA 50/60 Hz se conformer à CEI 60947-2
30 kA à 500 V CA 50/60 Hz se conformer à CEI 60947-2
11 kA à 525 V CA 50/60 Hz se conformer à CEI 60947-2
10 kA à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

short-time protection threshold setting range [isd] 1600 A
1920 A
2440 A
2560 A
2880 A
3200 A
3520 A
3840 A
4160 A

Handle front plate colour 255 mm

trigger caliber 320 A à 65 °C

[uimp] rated impulse withstand voltage 8 kV

product weight 6,05 kg

tsd short time protection time delay setting Fixe

electrical life 12000 cycle à 440 V In/2
6000 cycle à 440 V In
6000 cycle à 690 V In/2
3000 cycle à 690 V In

setting the differential protection time delay δt Réglable 9 positions

mechanical endurance 15000 cycle

width (w) 140 mm

network frequency 50/60 Hz

Local signalling pourprêt à fonctionner DEL clignotante (vert)

upstream connection Façade

downstream connection Façade

instantaneous protection threshold setting range [ii] (short-circuit protection) 4800 A

number of slots for electrical auxiliaries 6 slot(s)

mounting bracket Plaque arrière

depth (p) 110 mm

Network type CA

differential protection Sans

mounting position Horizontal et vertical
Flat on the back

power loss per pole 12,29 W

instantaneous protection sensor setting ii (short circuit protection) Fixe

order type Par maneton

kind of protection S : for protection court retard
I : for protection instantanée contre court-circuit

zsi logic selective latch area Sans

Poles description 3P

Environment

degree of pollution 3 se conformer à CEI 60664-1

ip degree of protection IP40 se conformer à CEI 60529

operating altitude 0...2000 m sans réduction de courant
2000 m...5000 m avec réduction de courant

product certificates CCC
EAC
Marine

class of protection against electric shock Classe II

operating ambient temperature -25…70 °C

overvoltage category Classe II

standards EN/CEI 60947

relative humidity 0…95 %

shock resistance ik IK07 se conformer à CEI 62262

storage room temperature -50…85 °C
