C40F4TM250D1 - Circuit breaker, ComPacT NSX250 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 250A - Schneider Electric - Circuit breaker, ComPacT NSX250 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 250A - Schneider Electric - 0
C40F4TM250D1 - Circuit breaker, ComPacT NSX250 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 250A - Schneider Electric - Circuit breaker, ComPacT NSX250 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 250A - Schneider Electric - 0
Pending restock

C40F4TM250D1 – Schneider Electric

EAN: 3606482013728
585,44 € excl. VAT
725,95 € incl. VAT

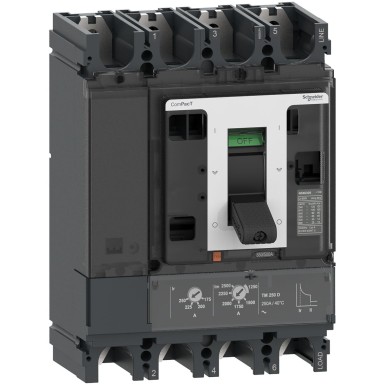

Circuit breaker, ComPacT NSX250 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 250A - Schneider Electric
 In cart
725,95 €
SPECIFICATIONS
Main
Range ComPacT nouvelle génération
sectioning ability Oui se conformer à EN/CEI 60947-2
job category Catégorie A
name of the device NSX400 DC PV
type of product or equipment Disjoncteur
Product Name ComPacT NSX nouvelle génération
[ui] rated insulation voltage 1000 V CC se conformer à EN/CEI 60947-2
breaking capacity coding F
neutral pole position Gauche
trigger name TM-DC
type of trigger Thermique-magnétique
protected poles 4d
Complementary
"no" connection 45 mm
[in] rated operational current 250 A à 40 °C
[ue] rated operational voltage 1000 V CC
application Distribution
[ics] rated service breaking capacity 10 kA à 1000 V CC se conformer à EN/CEI 60947-2
Handle front plate colour 225 mm
trigger caliber 250 A à 40 °C
[uimp] rated impulse withstand voltage 8 kV
product weight 8,4 kg
fully apparent cut Oui
mode d'installation Fixe
electrical life 1000 cycle 1000 V CC In se conformer à EN/CEI 60947-2
connection mode 4 bornes de type vis aluminium / cuivre
mechanical endurance 5000 cycle
width (w) 185 mm
instantaneous threshold adjustment range 2.5...5 x In
voltage indication Contact de signalisation
long time threshold adjustment range 0,7 à 1 x In
upstream connection Façade
downstream connection Façade
depth 110 mm
mounting bracket Plaque arrière
neutral protection setting Ir
Network type CC
instantaneous delay setting type Fixe
timer setting type Fixe
type of instantaneous threshold adjustment (ii) Réglable
order type Par maneton
Poignée rotative
Poignée rotative prolongée
type of setting of the long time threshold (ir) Réglable
kind of protection Protection surcharge (long retard)
Protection (magnétique) court-circuit
Poles description 4P
Environment
degree of pollution 3 se conformer à CEI 60664-1
ip degree of protection IP40 se conformer à CEI 60529
product certificates CCC
EAC
Marine
operating ambient temperature -35…70 °C
overvoltage category Classe II
standards EN/CEI 60947
shock resistance ik IK07 se conformer à CEI 62262
storage room temperature -50…85 °C
Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

Baltelec
+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

C40F4TM250D1 is a professional Compact NSX product designed for companies. BaltElec specializes in wholesale and supply in Estonia, Latvia, Lithuania, and Finland.

  • Authentic Schneider Electric product, documentation available on request.
  • Volume-based pricing – request a quote for larger quantities (MOQ may apply).
  • Fast delivery across the Baltics and Finland; cooperation with logistics partners.
  • Technical support and selection assistance based on your requirements.

Pricing: Request a project quote. The price depends on quantity, delivery, and payment terms.

Compact NSX specifications may vary by configuration. For an exact match, please send us your requirements or check the technical data sheet.
