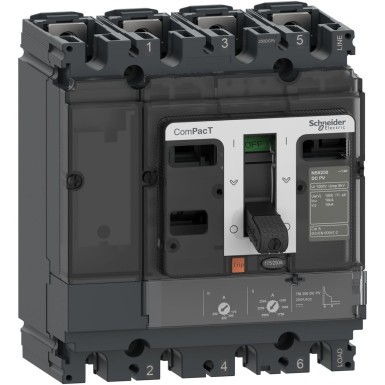

C16F4TM160D1 - Circuit breaker, ComPacT NSX160 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 160A - Schneider Electric - Circuit breaker, ComPacT NSX160 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 160A - Schneider Electric - 0
C16F4TM160D1 - Circuit breaker, ComPacT NSX160 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 160A - Schneider Electric - Circuit breaker, ComPacT NSX160 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 160A - Schneider Electric - 0
Pending restock

C16F4TM160D1 – Schneider Electric

EAN: 3606482003576
279,97 € excl. VAT
347,17 € incl. VAT
Circuit breaker, ComPacT NSX160 DC PV, 10kA/1000VDC, 4P, TM-DC PV trip unit 160A - Schneider Electric
 In cart
347,17 €
SPECIFICATIONS
Main
Range ComPacT nouvelle génération
sectioning ability Oui se conformer à EN/CEI 60947-2
job category Catégorie A
name of the device NSX160 DC PV
type of product or equipment Disjoncteur
Product Name ComPacT NSX DC PV
[ui] rated insulation voltage 1000 V CC se conformer à CEI 60947-2
trigger protection functions LI
circuit breaker installation mode Fixe
performance level F 10 kA 1000 V CC
trigger name TM-DC
type of trigger Thermique-magnétique
ultimate short-circuit breaking capacity [icu] 10 kA Icu à 1000 V CC 4 pôles en série se conformer à CEI 60947-2
Complementary
"no" connection 35 mm
[in] rated operational current 160 A à 40 °C
[ue] rated operational voltage 1000 V CC
application Photovoltaïque
[ics] rated service breaking capacity 10 kA à 1000 V CC se conformer à CEI 60947-2
Handle front plate colour 161 mm
trigger caliber 160 A à 40 °C
[uimp] rated impulse withstand voltage 8 kV se conformer à CEI 60947-2
product weight 2,8 kg
electrical life 1000 cycle à 1000 V In
mechanical endurance 10000 cycle
width (w) 140 mm
setting range of the long-time protection threshold [ir] (thermal protection) 0,7 à 1 x In
upstream connection Façade
downstream connection Façade
instantaneous protection threshold setting range [ii] (short-circuit protection) 1250 A
mounting bracket Plaque arrière
depth (p) 186 mm
Network type CC
differential protection Sans
mounting position Horizontal et vertical
Flat on the back
tr long time protection time delay setting Fixe
instantaneous protection sensor setting ii (short circuit protection) Fixe
ir long time protection sensor setting (thermal protection) Réglable
order type Par maneton
kind of protection L : for protection surcharge (thermique)
I : for protection (magnétique) court-circuit
Poles description 4P
Environment
degree of pollution 3 se conformer à CEI 60664-1
ip degree of protection IP40 se conformer à CEI 60529
operating altitude 0...2000 m sans réduction de courant
2000 m...5000 m avec réduction de courant
product certificates CCC
EAC
Marine
class of protection against electric shock Classe II
operating ambient temperature -25…70 °C
overvoltage category Classe II
standards EN/CEI 60947
relative humidity 0…95 %
shock resistance ik IK07 se conformer à CEI 62262
storage room temperature -50…85 °C
Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

Baltelec
+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

C16F4TM160D1 is a professional Compact NSX product designed for enterprises. BaltElec specializes in volume-based sales and supply in Estonia, Latvia, Lithuania, and Finland.

  • Original Schneider Electric product, certificates and compliance documents available.
  • Project pricing – request a quote for larger quantities (MOQ may apply).
  • Fast delivery across the Baltics and Finland; cooperation with logistics partners.
  • Technical support and application suitability advice based on your requirements.

Pricing: Request a project quote. The price depends on quantity, delivery, and payment terms.

Compact NSX specifications may vary by model. For an exact match, please send us your requirements or check the technical data sheet.
