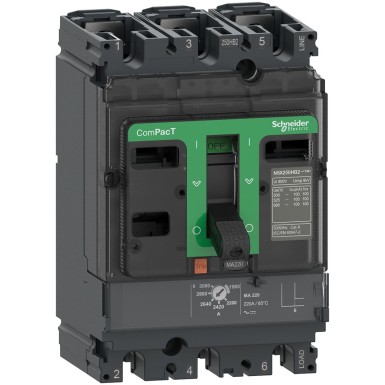

C10V3MA025 - ComPacT NSX100HB1 - circuit breaker - MA 25A - 3P3D - 75kA - fixed mounting - Schneider Electric - ComPacT NSX100HB1 - circuit breaker - MA 25A - 3P3D - 75kA - fixed mounting - Schneider Electric - 0

Pending restock

C10V3MA025 – Schneider Electric

EAN: 3606482001978

406,38 € excl. VAT

503,91 € incl. VAT

ComPacT NSX100HB1 - circuit breaker - MA 25A - 3P3D - 75kA - fixed mounting - Schneider Electric

In cart

503,91 €

SPECIFICATIONS

Main

Range ComPacT nouvelle génération

sectioning ability Oui se conformer à EN/CEI 60947-2

job category Catégorie A

name of the device NSX100HB1

type of product or equipment Disjoncteur

Product Name ComPacT NSX nouvelle génération

[ui] rated insulation voltage 800 V CA 50/60 Hz

trigger protection functions I

circuit breaker installation mode Fixe

performance level HB1 75 kA 690 V CA

trigger name MA

type of trigger Magnétique

ultimate short-circuit breaking capacity [icu] 85 kA Icu à 500 V CA 50/60 Hz se conformer à CEI 60947-2
80 kA Icu à 525 V CA 50/60 Hz se conformer à CEI 60947-2
75 kA Icu à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

protected poles 3d

Complementary

"no" connection 35 mm

[in] rated operational current 25 A à 65 °C

[ue] rated operational voltage 690 V CA 50/60 Hz

application Protection moteur

[ics] rated service breaking capacity 85 kA à 500 V CA 50/60 Hz se conformer à CEI 60947-2
80 kA à 525 V CA 50/60 Hz se conformer à CEI 60947-2
75 kA à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

short-time protection threshold setting range [isd] 6...14 x In

Handle front plate colour 161 mm

trigger caliber 25 A à 65 °C

[uimp] rated impulse withstand voltage 8 kV

product weight 2,05 kg

electrical life 20000 cycle à 440 V In/2
10000 cycle à 440 V In
10000 cycle à 690 V In/2
5000 cycle à 690 V In

setting the differential protection time delay δt Réglable 9 positions

mechanical endurance 20000 cycle

width (w) 105 mm

network frequency 50/60 Hz

upstream connection Façade

downstream connection Façade

instantaneous protection threshold setting range [ii] (short-circuit protection) 6...14 x In

number of slots for electrical auxiliaries 5 slot(s)

mounting bracket Plaque arrière

depth (p) 86 mm

Network type CA

differential protection Sans

mounting position Horizontal et vertical
Flat on the back

power loss per pole 1,04 W

instantaneous protection sensor setting ii (short circuit protection) Réglable 9 positions

order type Par maneton

kind of protection I : for protection (magnétique) court-circuit

Poles description 3P

Environment

degree of pollution 3 se conformer à CEI 60664-1

ip degree of protection IP40 se conformer à CEI 60529

operating altitude 0...2000 m sans réduction de courant
2000 m...5000 m avec réduction de courant

product certificates EAC
CCC
Marine

class of protection against electric shock Classe II

operating ambient temperature -25…70 °C

overvoltage category Classe II

standards EN/CEI 60947

relative humidity 0…95 %

shock resistance ik IK07 se conformer à CEI 62262

storage room temperature -50…85 °C
