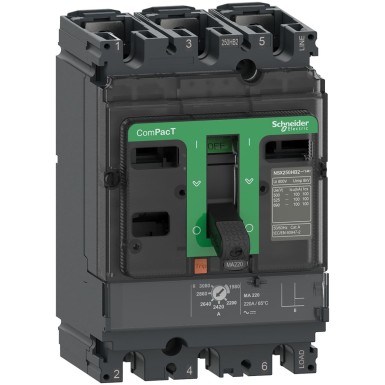

C10N3MA003 - ComPacT NSX100N - circuit breaker - MA 2.5A - 3P3D - 50kA - fixed mounting - Schneider Electric - ComPacT NSX100N - circuit breaker - MA 2.5A - 3P3D - 50kA - fixed mounting - Schneider Electric - 0

Pending restock

C10N3MA003 – Schneider Electric

EAN: 3606481998330

187,54 € excl. VAT

232,55 € incl. VAT

ComPacT NSX100N - circuit breaker - MA 2.5A - 3P3D - 50kA - fixed mounting - Schneider Electric

In cart

232,55 €

SPECIFICATIONS

Main

Range ComPacT nouvelle génération

sectioning ability Oui se conformer à EN/CEI 60947-2

job category Catégorie A

name of the device NSX100N

type of product or equipment Disjoncteur

Product Name ComPacT NSX nouvelle génération

[ui] rated insulation voltage 800 V CA 50/60 Hz

trigger protection functions I

circuit breaker installation mode Fixe

performance level N 50 kA 415 V CA

trigger name MA

type of trigger Magnétique

ultimate short-circuit breaking capacity [icu] 90 kA Icu à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA Icu à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA Icu à 440 V CA 50/60 Hz se conformer à CEI 60947-2
36 kA Icu à 500 V CA 50/60 Hz se conformer à CEI 60947-2
35 kA Icu à 525 V CA 50/60 Hz se conformer à CEI 60947-2
10 kA Icu à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

protected poles 3d

Complementary

"no" connection 35 mm

[in] rated operational current 2,5 A à 65 °C

[ue] rated operational voltage 690 V CA 50/60 Hz

application Protection moteur

[ics] rated service breaking capacity 90 kA à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA à 440 V CA 50/60 Hz se conformer à CEI 60947-2
36 kA à 500 V CA 50/60 Hz se conformer à CEI 60947-2
35 kA à 525 V CA 50/60 Hz se conformer à CEI 60947-2
10 kA à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

short-time protection threshold setting range [isd] 6...14 x In

Handle front plate colour 161 mm

trigger caliber 2,5 A à 65 °C

[uimp] rated impulse withstand voltage 8 kV

product weight 2,05 kg

electrical life 50000 cycle à 440 V In/2
30000 cycle à 440 V In
20000 cycle à 690 V In/2
10000 cycle à 690 V In

setting the differential protection time delay δt Réglable 9 positions

mechanical endurance 50000 cycle

width (w) 105 mm

network frequency 50/60 Hz

upstream connection Façade

downstream connection Façade

instantaneous protection threshold setting range [ii] (short-circuit protection) 6...14 x In

number of slots for electrical auxiliaries 5 slot(s)

mounting bracket Plaque arrière

depth (p) 86 mm

Network type CA

differential protection Sans

mounting position Horizontal et vertical
Flat on the back

power loss per pole 0,93 W

instantaneous protection sensor setting ii (short circuit protection) Réglable 9 positions

order type Par maneton

kind of protection I : for protection (magnétique) court-circuit

Poles description 3P

Environment

degree of pollution 3 se conformer à CEI 60664-1

ip degree of protection IP40 se conformer à CEI 60529

operating altitude 0...2000 m sans réduction de courant
2000 m...5000 m avec réduction de courant

product certificates CCC
EAC
Marine

class of protection against electric shock Classe II

operating ambient temperature -25…70 °C

overvoltage category Classe II

standards EN/CEI 60947

relative humidity 0…95 %

shock resistance ik IK07 se conformer à CEI 62262

storage room temperature -50…85 °C

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric C10N3MA003 is a professional Compact NSX product designed for companies. BaltElec specializes in volume-based sales and product distribution in Estonia, Latvia, Lithuania, and Finland.

Authentic Schneider Electric product, certificates and compliance documents available.
Project pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with logistics partners.
Technical support and selection assistance based on your requirements.

Price: Request a special offer. The price depends on quantity, delivery, and payment terms.

Compact NSX specifications may vary by model. For an exact match, please send us your application details or check the technical data sheet.

FAQ for C10N3MA003 - Schneider Electric

Does your company provide bulk pricing for C10N3MA003?

Yes, volume-based pricing are available. Send us a list of required quantities (e.g. Schneider Electric, C10N3MA003, 5 pcs) and we’ll prepare a personalized quotation.
What is the availability and delivery time for C10N3MA003 in the Baltics and Finland?

We provide reliable logistics for deliveries to Estonia, Latvia, Lithuania, and Finland. Exact lead time depends on quantity and stock level, confirmed upon quotation.
Is C10N3MA003 by Schneider Electric an authentic product?

Yes. We only sell Schneider Electric original products with factory warranty. Compliance certificates are available on request.
Is C10N3MA003 suitable for my Compact NSX application?

We help confirm compatibility quickly. Please provide conditions (voltage, current, environment, standards), and we’ll compare them to Schneider Electric technical requirements.
How does shipping and invoicing work?

We deliver via logistics partner to Estonia, Latvia, Lithuania, and Finland. Invoicing is done according to quotation; bulk purchases are priced individually.
