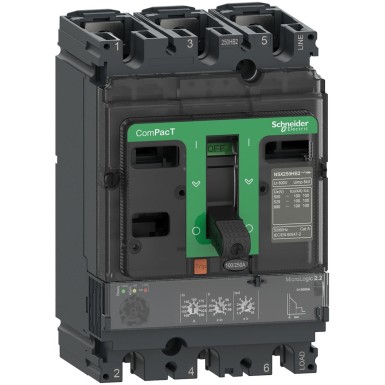

C10H32D100 - ComPacT NSX100H - circuit breaker - MicroLogic 2.2 100A - 3P3D - 70kA - fixed mounting - Schneider Electric - ComPacT NSX100H - circuit breaker - MicroLogic 2.2 100A - 3P3D - 70kA - fixed mounting - Schneider Electric - 0

Pending restock

C10H32D100 – Schneider Electric

EAN: 3606481998606

277,44 € excl. VAT

344,03 € incl. VAT

ComPacT NSX100H - circuit breaker - MicroLogic 2.2 100A - 3P3D - 70kA - fixed mounting - Schneider Electric

In cart

344,03 €

SPECIFICATIONS

Main

Range ComPacT nouvelle génération

sectioning ability Oui se conformer à EN/CEI 60947-2

job category Catégorie A

name of the device NSX100H

type of product or equipment Disjoncteur

Product Name ComPacT NSX nouvelle génération

[ui] rated insulation voltage 800 V CA 50/60 Hz

trigger protection functions LSoI

circuit breaker installation mode Fixe

performance level H 70 kA 415 V CA

trigger name Micrologic 2.2

type of trigger Électronique

ultimate short-circuit breaking capacity [icu] 100 kA Icu à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
70 kA Icu à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
65 kA Icu à 440 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA Icu à 500 V CA 50/60 Hz se conformer à CEI 60947-2
35 kA Icu à 525 V CA 50/60 Hz se conformer à CEI 60947-2
10 kA Icu à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

protected poles 3d

Complementary

"no" connection 35 mm

[in] rated operational current 100 A à 40 °C

[ue] rated operational voltage 690 V CA 50/60 Hz

application Distribution

[ics] rated service breaking capacity 100 kA à 220/240 V CA 50/60 Hz se conformer à CEI 60947-2
70 kA à 380/415 V CA 50/60 Hz se conformer à CEI 60947-2
65 kA à 440 V CA 50/60 Hz se conformer à CEI 60947-2
50 kA à 500 V CA 50/60 Hz se conformer à CEI 60947-2
35 kA à 525 V CA 50/60 Hz se conformer à CEI 60947-2
10 kA à 660/690 V CA 50/60 Hz se conformer à CEI 60947-2

short-time protection threshold setting range [isd] 1,5...10 x Ir

Handle front plate colour 161 mm

trigger caliber 100 A à 40 °C

[uimp] rated impulse withstand voltage 8 kV

product weight 2,05 kg

tsd short time protection time delay setting Fixe

electrical life 50000 cycle à 440 V In/2
30000 cycle à 440 V In
20000 cycle à 690 V In/2
10000 cycle à 690 V In

setting the differential protection time delay δt Réglable 9 positions

mechanical endurance 50000 cycle

width (w) 105 mm

network frequency 50/60 Hz

thermal memory 20 minutes avant et après le déclenchement

Local signalling pourprêt à fonctionner DEL clignotante (vert)
poursurcharge DEL 105 % Ir (rouge)
poursurcharge DEL 90 % Ir (orange)

long time protection time delay setting range [tr] 400 s à 1,5 x Ir
16 s à 6 x Ir
11 s à 7,2 x Ir

setting range of the long-time protection threshold [ir] (thermal protection) 40...100 A

upstream connection Façade

downstream connection Façade

instantaneous protection threshold setting range [ii] (short-circuit protection) 1500 A

number of slots for electrical auxiliaries 5 slot(s)

mounting bracket Plaque arrière

depth (p) 86 mm

Network type CA

differential protection Sans

mounting position Horizontal et vertical
Flat on the back

power loss per pole 4,7 W

tr long time protection time delay setting Fixe

instantaneous protection sensor setting ii (short circuit protection) Fixe

ir long time protection sensor setting (thermal protection) Réglable 9 positions

order type Par maneton

kind of protection L : for protection surcharge (long retard)
So : for protection court retard avec retard fixe
I : for protection instantanée contre court-circuit

zsi logic selective latch area Sans

Poles description 3P

Environment

degree of pollution 3 se conformer à CEI 60664-1

ip degree of protection IP40 se conformer à CEI 60529

operating altitude 0...2000 m sans réduction de courant
2000 m...5000 m avec réduction de courant

product certificates CCC
EAC
Marine

class of protection against electric shock Classe II

operating ambient temperature -25…70 °C

overvoltage category Classe II

standards EN/CEI 60947

relative humidity 0…95 %

shock resistance ik IK07 se conformer à CEI 62262

storage room temperature -50…85 °C
