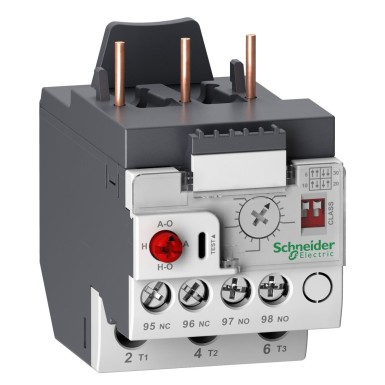

LR9D32 - Overload relay, TeSys LRD, motor protection, 6.4A to 32A, 3 phase, withstand 6kV impulse, 2kV surge, electronic thermal - Schneider Electric - Overload relay, TeSys LRD, motor protection, 6.4A to 32A, 3 phase, withstand 6kV impulse, 2kV surge, electronic thermal - Schneider Electric - 0

Pending restock

LR9D32 – Schneider Electric

EAN: 3606485420950

179,51 € excl. VAT

222,60 € incl. VAT

Overload relay, TeSys LRD, motor protection, 6.4A to 32A, 3 phase, withstand 6kV impulse, 2kV surge, electronic thermal - Schneider Electric

In cart

222,60 €

SPECIFICATIONS

Default

Series TeSyS Deca Overload Relays

Main

Range TeSys

name of the device LR9D

thermal overload class Classe 5…30

type of product or equipment Relais électronique de surcharge thermique

Product Name TeSys LRD

[ui] rated insulation voltage Circuit de puissance: 1000 V
Circuit de signalisation: 690 V

use of the relay Protection moteur

Complementary

associated accessories LC1D09
LC1D25
LC1D32
LC1D38
LC1D12
LC1D18

[ue] rated operational voltage 690 V pour circuit de puissance
660 V pour circuit de signalisation

[ith] conventional thermal current 5 A pour circuit de signalisation

caliber of the fuse to be associated 5 A gG pour circuit de signalisation
5 A BS pour circuit de signalisation

Handle front plate colour 72,5 mm

tightening torque Télécommande: 0,8 N.m sur borniers à vis-étrier
Circuit de puissance: 3.1 N.m sur borniers à vis-étrier

[uimp] rated impulse withstand voltage 6 kV

product weight 0,18 kg

thermal protection setting area 6,4…32 A

time range 1,5 à 4 min - délai de remise à zéro automatique

connection mode Télécommande: borniers à vis-étrier 1 câble 2,5 mm² - rigidité du câble: rigide ou flexible - sans embout
Circuit de puissance: borniers à vis-étrier 1 câble 16 mm² - rigidité du câble: rigide ou flexible - sans embout

width (w) 45 mm

mechanical robustness Vibrations 10 à 150 Hz: 6 Gn se conformer à CEI 60068-2-6
Chocs 11 ms: 15 gn se conformer à CEI 60068-2-7

trigger point 1.25 In se conformer à CEI 60947-4-1

depth 79,9 mm

mounting bracket Sous le contacteur
Platine, avec accessoires spécifiques
Rail, avec accessoires spécifiques

sensitivity to phase loss Différence de phase > 40% 3 s se conformer à CEI 60947-4-1

maximum power consumption in w 300 mW

order type Rouge bouton-poussoir: arrêt et remise à zéro manuelle
Blanc 2 microrupteurs: classe de déclenchement ajustable
Rouge bouton: réinitialisation automatique
Gris cadran: réglage du courant pleine charge

dielectric strength 6 kV 50 Hz se conformer à CEI 60255-5

Environment

ip degree of protection IP20 face avant se conformer à CEI 60529

operating altitude 2000 m sans réduction de courant

product certificates certificat CEI CE
UL
CSA
CCC

electromagnetic compatibility Résistance: 2 kV mode commun se conformer à CEI 61000-4-5
Tenue aux décharges électrostatiques: 8 kV se conformer à CEI 6100-4-11
Immunité contre les interférences radio-électriques rayonnées: 10 V/m se conformer à CEI 61000-4-3
Immunité aux transitoires rapides: 2 kV se conformer à CEI 61000-4-4

standards EN/CEI 60947-4-1
EN/CEI 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5

operating temperature -25…70 °C se conformer à CEI 60255-8

storage room temperature -55…80 °C

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric LR9D32 is a professional TeSyS Deca Overload Relays solution designed for enterprises. BaltElec specializes in wholesale and product distribution in Estonia, Latvia, Lithuania, and Finland.

Authentic Schneider Electric product, certificates and compliance documents available.
Project pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with logistics partners.
Technical support and application suitability advice based on your requirements.

Pricing: Request a special offer. The price depends on quantity, delivery, and payment terms.

TeSyS Deca Overload Relays specifications may vary by model. For an exact match, please send us your application details or check the technical data sheet.

FAQ for LR9D32 - Schneider Electric

Does BaltElec offer bulk pricing for LR9D32?

Yes, volume-based pricing are available. Send us a list of required quantities (e.g. LR9D32, Schneider Electric, 10 pcs) and we’ll prepare a personalized quotation.
What is the availability and delivery time for LR9D32 in the Baltics and Finland?

We provide fast turnaround for deliveries to Estonia, Latvia, Lithuania, and Finland. Exact lead time depends on configuration and batch availability, confirmed upon quotation.
Is LR9D32 by Schneider Electric an authentic product?

Yes. We only sell Schneider Electric original products with manufacturer’s warranty. Compliance certificates are available on request.
Is LR9D32 suitable for my TeSyS Deca Overload Relays project?

We help confirm compatibility efficiently. Please provide parameters (voltage, current, environment, standards), and we’ll compare them to Schneider Electric technical requirements.
How does delivery and invoicing work?

We deliver via logistics partner to Estonia, Latvia, Lithuania, and Finland. Invoicing is done according to agreement; bulk purchases are priced individually.
