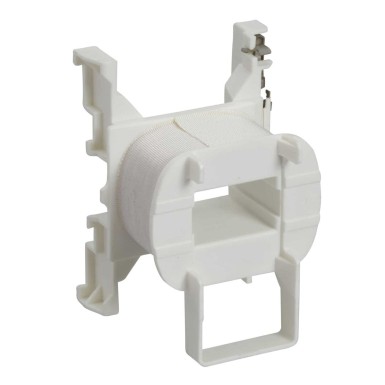

LXD1B7 - TeSys D - coil for CAD and LC1D contactors from 9…38A - 24VAC 50/60Hz - Schneider Electric - TeSys D - coil for CAD and LC1D contactors from 9…38A - 24VAC 50/60Hz - Schneider Electric - 0

Pending restock

LXD1B7 – Schneider Electric

EAN: 3389110467697

8,05 € excl. VAT

9,98 € incl. VAT

TeSys D - coil for CAD and LC1D contactors from 9…38A - 24VAC 50/60Hz - Schneider Electric

In cart

9,98 €

SPECIFICATIONS

Default

Series TeSyS Deca Contactors

Main

Range TeSys

[uc] control circuit voltage 24 V CA 50/60 Hz

name of the device LXD1

type of product or equipment Bobine de contacteur

closed circuit inductor 0,22 H

medium resistance 5,37 Ohm à 20 °C

control circuit type CA à 50/60 Hz

Complementary

associated accessories LC1D09...D38
CAD
LC1DT20...DT40

average fuel consumption when going 7,5 VA 60 Hz cos phi 0,3 (à 20 °C)
7 VA 50 Hz cos phi 0,3 (à 20 °C)

product weight 0,07 kg

control circuit voltage range Perte de niveau: 0,3 à 0,6 Uc à 50/60 Hz (à <60 °C)
Opérationnel: 0,8 à 1,1 Uc à 50 Hz (à <60 °C)
Opérationnel: 0,85…1,1 Uc à 60 Hz (à <60 °C)

mechanical endurance 15 Mcycles

calling power goes 70 VA 60 Hz cos phi 0,75 (à 20 °C)
70 VA 50 Hz cos phi 0,75 (à 20 °C)

max command speed 3600 cyc/h à <60 °C

coil technology Sans module d'antiparasitage intégré

Environment

thermal dissipation 2…3 W à 50/60 Hz

operating ambient air temperature -5…60 °C
