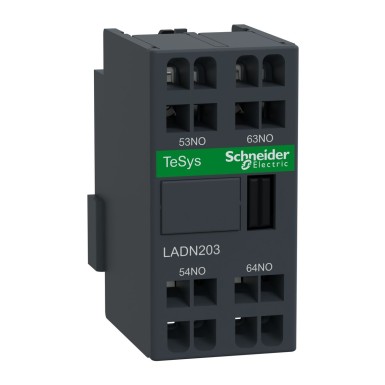

LADN203 - TeSys D - front auxiliary contact block - 2NO+0O - spring terminals - Schneider Electric - TeSys D - front auxiliary contact block - 2NO+0O - spring terminals - Schneider Electric - 0

Pending restock

LADN203 – Schneider Electric

EAN: 3389110821154

16,38 € excl. VAT

20,31 € incl. VAT

TeSys D - front auxiliary contact block - 2NO+0O - spring terminals - Schneider Electric

In cart

20,31 €

SPECIFICATIONS

Default

Series TeSyS Deca Contactors

Main

Range TeSys
TeSys Deca

name of the device LADN

type of product or equipment Bloc de contact auxiliaire

composition of the poles 2F

Product Name TeSys D
TeSys Deca

[ui] rated insulation voltage 690 V se conformer à CEI 60947-5-1
600 V se conformer à UL
600 V se conformer à CSA

Complementary

[ie] rated operational current 6 A à 120 V AC-15
1,04 A à 690 V AC-15
0,55 A à 125 V DC-13
0,1 A à 600 V DC-13

[ue] rated operational voltage 690 V CA 25...400 Hz

range compatibility TeSys D CAD
TeSys D LC1D
TeSys Deca CAD
TeSys Deca LC1D

[ith] conventional thermal current 10 A à <60 °C)

allowable temporary current 100 A 60 °C 1s
120 A 60 °C 500 ms
140 A 60 °C 100 ms

Handle front plate colour 48 mm

mounting location Façade

minimum switching current 5 mA

connection mode Bornes à ressort 2 câble(s) 2,5 mm²souple sans extrémité de câble
Bornes à ressort 2 câble(s) 2,5 mm²rigide

contact operation Instantané

mechanical endurance 30 Mcycles

width (w) 26 mm

Colour Gris foncé

rated rms inrush power 140 A CA se conformer à CEI 60947-5-1
250 A CC se conformer à CEI 60947-5-1

depth 42 mm

minimum switching voltage 17 V

kind of protection Fusible gG 10 A

non-overlap time 1,5 ms sur désexcitation non-chevauchement entre contact NC et NO
1,5 ms sur excitation non-chevauchement entre contact NC et NO

Environment

environment characteristic Environnement normal

ip degree of protection IP20 se conformer à CEI 60529

operating altitude 3000 m

product certificates CB
UL
CSA
CCC
EAC
UKCA

operating ambient temperature -5…60 °C

standards EN/CEI 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
EN 50012

storage room temperature -60…80 °C

protective treatment TH se conformer à CEI 60068

insulation resistance > 10 MΩ

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric LADN203 is a professional TeSyS Deca Contactors product designed for companies. BaltElec specializes in volume-based sales and product distribution in Estonia, Latvia, Lithuania, and Finland.

Authentic Schneider Electric product, documentation available on request.
Project pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with trusted couriers.
Technical support and selection assistance based on your requirements.

Price: Request a special offer. The price depends on quantity, delivery, and payment terms.

TeSyS Deca Contactors specifications may vary by model. For an exact match, please send us your application details or check the technical data sheet.

FAQ for LADN203 - Schneider Electric

Does your company provide bulk pricing for LADN203?

Yes, volume-based pricing are available. Send us a list of required quantities (e.g. LADN203, Schneider Electric, 10 pcs) and we’ll prepare a project-specific quotation.
What is the availability and delivery time for LADN203 in the Baltics and Finland?

We provide reliable logistics for deliveries to Estonia, Latvia, Lithuania, and Finland. Exact lead time depends on quantity and stock level, confirmed upon quotation.
Is LADN203 by Schneider Electric an original product?

Yes. We only sell Schneider Electric original products with factory warranty. Compliance certificates are available on request.
Is LADN203 suitable for my TeSyS Deca Contactors project?

We help confirm compatibility efficiently. Please provide parameters (voltage, current, environment, standards), and we’ll compare them to Schneider Electric technical requirements.
How does delivery and invoicing work?

We deliver via logistics partner to Estonia, Latvia, Lithuania, and Finland. Invoicing is done according to agreement; projects and larger orders are priced individually.
