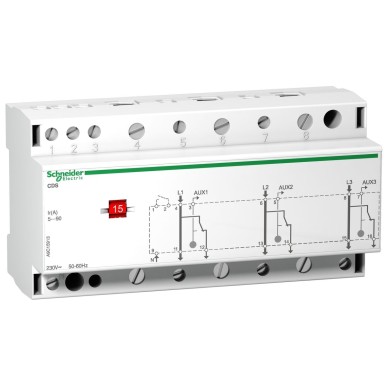

A9C15913 - Acti9 CDSs - three-way load shedder 1 channel per phase - 415Vac - Schneider Electric - Acti9 CDSs - three-way load shedder 1 channel per phase - 415Vac - Schneider Electric - 0

Pending restock

A9C15913 – Schneider Electric

EAN: 3606480376870

632,36 € excl. VAT

784,12 € incl. VAT

Acti9 CDSs - three-way load shedder 1 channel per phase - 415Vac - Schneider Electric

In cart

784,12 €

SPECIFICATIONS

Default

Series iCT

Main

product range Acti9

name of the device CDS

type of product or equipment Contacteur de délestage de charge

number of channels 3

Product Name Acti9 CDS

type of control and monitoring Contrôle de phase indépendant

Complementary

9 mm pitches 16

[ue] rated operational voltage 415 V CA - 15...10 % à 50/60 Hz

Handle front plate colour 77 mm

rated operational current 15 A pour circuit non prioritaire
Seuil de courant ajustable entre 5 et 90 A pour circuit prioritaire

tightening torque 2 N.m circuit non prioritaire :
3,5 N.m circuit prioritaire :

product weight 0,5 kg

connection mode Circuit non prioritaire: borne à vis2,5…10 mm² souple
Circuit non prioritaire: borne à vis2,5…10 mm² rigide
Circuit prioritaire: borne à vis10…35 mm² souple
Circuit prioritaire: borne à vis10…50 mm² rigide

power consumed in maximum range 12 VA

width (w) 144 mm

Colour Blanc (RAL 9003)

Local signalling Indication de délestage de charge :3 LEDs (jaune)

setting 70
30
40
60
15
25
10
80
20
5
90
50

wire stripping length 12 mm
13 mm

depth 60 mm

mounting bracket Rail DIN symétrique 35 mm
Mural
Montage sur panneau

Poles description 3P

Environment

ip degree of protection IP20 se conformer à CEI 60529

standards NF C 61-750
EN 50081-1
EN 50081-2

relative humidity 95 % à 55 °C

operating ambient air temperature -5…55 °C

storage room temperature -40…70 °C

tropicalization 2 se conformer à CEI 60068-1
