A9C15906 - Acti9 CDSs - 4-way mono load shedder - 230Vac - cyclic load shedding - Schneider Electric - Acti9 CDSs - 4-way mono load shedder - 230Vac - cyclic load shedding - Schneider Electric - 0

Pending restock

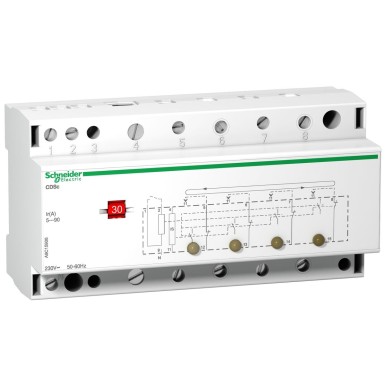

A9C15906 – Schneider Electric

EAN: 3606480376856

Acti9 CDSs - 4-way mono load shedder - 230Vac - cyclic load shedding - Schneider Electric

SPECIFICATIONS

Default

Series iCT

Main

product range Acti9

name of the device CDSc

type of product or equipment Contacteur de délestage de charge

number of channels 4

Product Name Acti9 CDS

type of control and monitoring Cascade

Complementary

9 mm pitches 16

[ue] rated operational voltage 230 V CA - 15...10 % à 50/60 Hz

Handle front plate colour 77 mm

rated operational current 15 A pour circuit non prioritaire
Seuil de courant ajustable entre 5 et 90 A pour circuit prioritaire

tightening torque 2 N.m circuit non prioritaire :
3,5 N.m circuit prioritaire :

product weight 0,6 kg

connection mode Circuit non prioritaire: borne à vis2,5…10 mm² souple
Circuit non prioritaire: borne à vis2,5…10 mm² rigide
Circuit prioritaire: borne à vis10…35 mm² souple
Circuit prioritaire: borne à vis10…50 mm² rigide

power consumed in maximum range 4 VA

width (w) 144 mm

Colour Blanc (RAL 9003)

Local signalling Indication de délestage de charge :4 LEDs (jaune)

setting 40
10
90
30
5
45
75
15
50
20
25
60

wire stripping length 12 mm
13 mm

depth 60 mm

mounting bracket Rail DIN symétrique 35 mm
Montage sur panneau
Mural

Poles description 1P

Environment

ip degree of protection IP20 se conformer à CEI 60529

operating ambient temperature -5…55 °C

standards NF C 61-750
EN 50081-2
EN 50081-1

relative humidity 95 % à 55 °C

storage room temperature -40…70 °C

tropicalization 2 se conformer à CEI 60068-1
