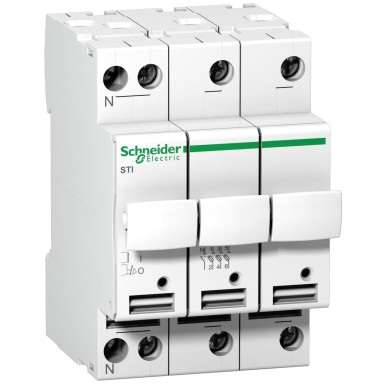

A9N15658 - Acti9 STI - drawer fuse disconnector - 3P+N - 25A - for 10.3x38mm fuse - Schneider Electric - Acti9 STI - drawer fuse disconnector - 3P+N - 25A - for 10.3x38mm fuse - Schneider Electric - 0

In stock

A9N15658 – Schneider Electric

EAN: 3606480619595

23,36 € excl. VAT

28,97 € incl. VAT

Acti9 STI - drawer fuse disconnector - 3P+N - 25A - for 10.3x38mm fuse - Schneider Electric

In cart

28,97 €

SPECIFICATIONS

Default

Series iC60

Main

Range Acti9

name of the device STI

type of product or equipment Sectionneur fusible

Product Name Acti9 STI

[ui] rated insulation voltage 500 V CA 50/60 Hz

Complementary

9 mm pitches 6

[in] rated operational current 2 A
4 A
6 A
10 A
16 A
20 A
25 A

[ue] rated operational voltage 500 V CA

Handle front plate colour 81 mm

tightening torque 2 N.m

mode d'installation Encliquetable

connection mode Borniers à vis-étrier1 câble(s) 0,75…10 mm² rigide
Borniers à vis-étrier1 câble(s) 0,5…6 mm² souple
Borniers à vis-étrier2 câble(s) 0,75…4 mm² rigide
Borniers à vis-étrier2 câble(s) 0,5…6 mm² souple

width (w) 54 mm

Colour Blanc

fuse size 10,3 x 38 mm

type of fuse AM
GG

wire stripping length 12 mm

depth 75 mm

mounting bracket Rail DIN

Poles description 3P + N

Environment

degree of pollution 3

ip degree of protection IP20

standards CEI 60269-1/2
CEI EN 60947-3

operating ambient air temperature -20…60 °C

storage room temperature -40…80 °C
