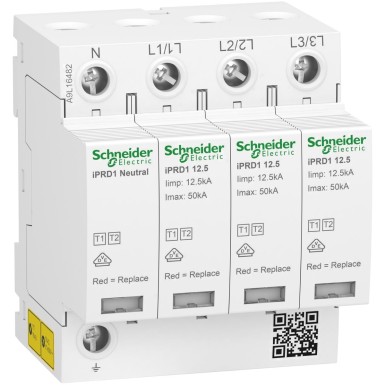

A9L16482 - Acti9 Surge arrester iPRD1 12.5r - debro type1 - 3P+N - 350V - signal report - TT TN - Schneider Electric - Acti9 Surge arrester iPRD1 12.5r - debro type1 - 3P+N - 350V - signal report - TT TN - Schneider Electric - 0

Pending restock

A9L16482 – Schneider Electric

EAN: 3606481490223

219,73 € excl. VAT

272,46 € incl. VAT

Acti9 Surge arrester iPRD1 12.5r - debro type1 - 3P+N - 350V - signal report - TT TN - Schneider Electric

BaltElec stock

Out of stock

Supplier Warehouse

In stock

Available, 5–7 days wait

In cart

272,46 €

SPECIFICATIONS

Default

Series iC60

Main

composition of signaling contacts 1 SD (1 C/O)

product range Acti9

name of the device iPRD1 12.5

type of product or equipment Parafoudre

Product Name Acti9 iPRD1

ground connection diagram TT
TN-S

remote signaling Avec

sensitivity to earth leakage 0,003 mA N/PE

arrester type Réseau de distribution électrique

Complementary

9 mm pitches 8

[iimp] surge current Mode commun :50 kA N/PE
Mode différentiel :12,5 kA L/N

[uc] maximum continuous operating voltage Mode différentiel :350 V L/N
Mode commun :255 V N/PE

[ue] rated operational voltage 230/400 V CA (+/- 10 %) à 50...60 Hz

application Distribution

[up] maximum voltage protection level <1,5 kV type 1 + 2

arrester class Type 1 + 2

Handle front plate colour 89 mm

tightening torque 3,5 N.m

[ut] temporary overvoltage 337 V L/N 5 s tenue
1200 V N/PE 200 ms mode de défaillance en sécurité

matter PA6

product weight 619 g

maximum discharge current [imax] 50 kA

mode d'installation Encliquetable (rail DIN)

maximum discharge current [in] 20 kA

connection mode Borne du type à cage (phase) 10…25 mm² souple
Borne du type à cage (phase) 10…35 mm² rigide
Borne du type à cage (terre) 16…25 mm² souple
Borne du type à cage (terre) 16…35 mm² rigide

width (w) 72 mm

Colour Blanc (RAL 9003)

Local signalling En fonctionnement :indicateur mécanique (blanc)
Fin de vie :indicateur mécanique (rouge)

wire stripping length 14 mm

arrester technology MOV + GDT

depth 69 mm

disconnector type Fusible à associer gG 160 A 120 kA standard
Disjoncteur associé ComPact NSX160E 80 A 25 kA standard

Poles description 3P + N

Environment

degree of pollution 3

operating altitude 2000 m

standards EN 61643-11:2012
CEI 61643-11:2011

quality labels CE
EAC
VDE

relative humidity 5…95 %

shock resistance ik IK05 se conformer à CEI 62262

operating ambient air temperature -25…60 °C

storage room temperature -40…80 °C
