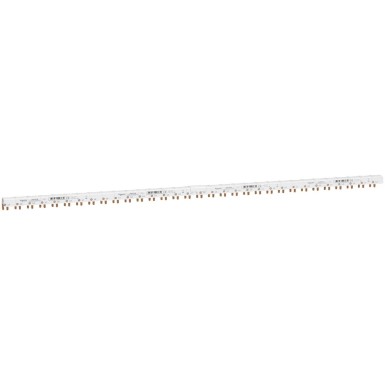

A9XPA748 - Acti9 iDT40 - horizontal splitter - 3P+N with Aux - 9 mm - 48 modules - 80A - Schneider Electric - Acti9 iDT40 - horizontal splitter - 3P+N with Aux - 9 mm - 48 modules - 80A - Schneider Electric - 0

Pending restock

A9XPA748 – Schneider Electric

EAN: 3606489443634

90,48 € excl. VAT

112,20 € incl. VAT

Acti9 iDT40 - horizontal splitter - 3P+N with Aux - 9 mm - 48 modules - 80A - Schneider Electric

In cart

112,20 €

SPECIFICATIONS

Main

Accessory category Accessoire de connexion

line description 3P + N

Range Acti9

type of product or equipment Peigne de raccordement

module length 18 mm 48

number of channels 32 voies Aux + N + L

[ui] rated insulation voltage 400 V CA se conformer à CEI 61439-1

Complementary

"no" connection 9 mm entre phase et neutre

9 mm pitches 96

[ie] rated operational current 80 A à 40 °C

[ue] rated operational voltage 230 V CA Ph/N

range compatibility Acti 9 (Acti 9 C40)
Acti 9 (Acti 9 C40 Vigi)
Acti 9 (Acti 9 DT40)
Acti 9 (Acti 9 DT40 Vigi)
Acti 9 (Acti 9 iDPN)
Acti 9 (Acti9 iDPN Vigi)
Multi 9 (Multi 9 N40)
Acti9 (Acti9 iC40)
Acti9 (Acti9 iDT40)
Acti9 (Acti9 iDD40)
Acti9 (Acti9 iDD40 TG)
Acti9 Vigi iTG40
Acti9 (Acti9 iIG40)
Acti9 (Acti9 iCV40)
Acti9 Vigi iCG40
Acti9 (Acti9 iID40)

Handle front plate colour 29 mm

[uimp] rated impulse withstand voltage 4 kV

mounting location Haut sur borne du type à cage

pole configuration for 1 channel 1 1P + N

product weight 521 g

marking N L1 N L2 N L3

mode d'installation Horizontale

distance between devices 27 mm

width (w) 862 mm

isolation Isolé

Colour Blanc (RAL 9003)

product presentation Découpable

connector type Dent

depth 26 mm

equipment provided embouts
cache-dents

Environment

degree of pollution 3 se conformer à EN/CEI 60439-1

ip degree of protection IP20 avec embouts et cache-dents

standards EN/CEI 60439-1

fire resistance 960 °C ( 30 s ) se conformer à CEI 60695-2-1

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric A9XPA748 is a professional iC60 solution designed for companies. BaltElec specializes in volume-based sales and supply in Estonia, Latvia, Lithuania, and Finland.

Original Schneider Electric product, certificates and compliance documents available.
Project pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with logistics partners.
Technical support and application suitability advice based on your requirements.

Price: Request a special offer. The price depends on quantity, delivery, and payment terms.

iC60 specifications may vary by model. For an exact match, please send us your requirements or check the technical data sheet.

FAQ for A9XPA748 - Schneider Electric

Does your company provide wholesale prices for A9XPA748?

Yes, project discounts are available. Send us a list of required quantities (e.g. Schneider Electric, A9XPA748, 5 pcs) and we’ll prepare a project-specific quotation.
What is the availability and delivery time for A9XPA748 in the Baltics and Finland?

We provide reliable logistics for deliveries to Estonia, Latvia, Lithuania, and Finland. Exact lead time depends on configuration and batch availability, confirmed upon quotation.
Is A9XPA748 by Schneider Electric an authentic product?

Yes. We only sell Schneider Electric original products with manufacturer’s warranty. Compliance certificates are available on request.
Is A9XPA748 suitable for my iC60 application?

We help confirm compatibility quickly. Please provide parameters (voltage, current, environment, standards), and we’ll compare them to Schneider Electric technical requirements.
How does shipping and invoicing work?

We deliver via courier to Estonia, Latvia, Lithuania, and Finland. Invoicing is done according to quotation; projects and larger orders are priced individually.
