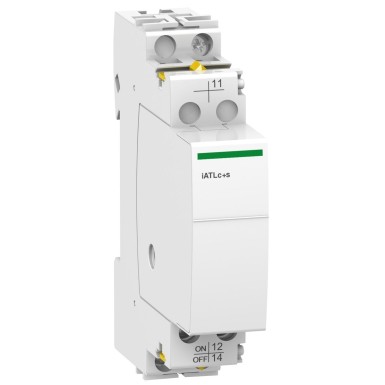

A9C15409 - Acti9, iATLc+s centralized control auxiliary + 24...240VAC signaling - Schneider Electric - Acti9, iATLc+s centralized control auxiliary + 24...240VAC signaling - Schneider Electric - 0

Pending restock

A9C15409 – Schneider Electric

EAN: 3606480374906

52,12 € excl. VAT

64,63 € incl. VAT

Acti9, iATLc+s centralized control auxiliary + 24...240VAC signaling - Schneider Electric

In cart

64,63 €

SPECIFICATIONS

Main

composition of signaling contacts 1 F/O

product range Acti9

[uc] control circuit voltage 24...240 V CA 50/60 Hz

name of the device iATLc+s

type of product or equipment Commande centralisée et auxiliaire d’indication à distance

[ui] rated insulation voltage 440 V

Complementary

9 mm pitches 2

associated accessories ITL (32 A)
ITL (16 A)

range compatibility Acti 9 (Acti 9 iTL) iTL
Acti 9 (Acti 9 iTL) iTLi
Acti 9 (Acti 9 iTL) iTLs

Handle front plate colour 86 mm

tightening torque 1 N.m

[uimp] rated impulse withstand voltage 4 kV

mode d'installation Fixe, sur le côté droit de TL

connection mode Borne du type à cage câble 0,5…4 mm² - rigidité du câble: rigide
Borne du type à cage câble 0,5…4 mm² - rigidité du câble: rigide - avec embout
Borne du type à cage câble 1…4 mm² - rigidité du câble: souple
Borne du type à cage câble 1…4 mm² - rigidité du câble: souple - avec embout

width (w) 18 mm

Colour Blanc

wire stripping length 11 mm

depth 71 mm

mounting bracket Rail DIN

signaling circuit voltage 24 V CA/CC: 10 mA
12...240 V CA: 50/60 Hz 6 A
12…24 V CC: 6 A
15...240 V CA: 50/60 Hz 2 A
13...24 V CC: 2 A

Environment

ip degree of protection IP20 conforming to CEI 60529

overvoltage category III

standards EN/CEI 60669-2-2

relative humidity 95 % à 55 °C

operating ambient air temperature -20…50 °C

storage room temperature -40…70 °C

tropicalization 2

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

A9C15409 Schneider Electric is a industrial iTL product designed for companies. BaltElec specializes in volume-based sales and supply in Estonia, Latvia, Lithuania, and Finland.

Authentic Schneider Electric product, documentation available on request.
Project pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with logistics partners.
Technical support and selection assistance based on your requirements.

Price: Request a project quote. The price depends on quantity, delivery, and payment terms.

iTL specifications may vary by configuration. For an exact match, please send us your application details or check the technical data sheet.
