LVS08064 - Enclosure, PrismaSeT G, for modular devices, wall mounted, W600mm, H630mm (2R + incomer), IP30, with front plates, Pack 250 - Schneider Electric - Enclosure, PrismaSeT G, for modular devices, wall mounted, W600mm, H630mm (2R + incomer), IP30, with front plates, Pack 250 - Schneider Electric - 0

Pending restock

LVS08064 – Schneider Electric

EAN: 3606481876799

320,00 € excl. VAT

396,79 € incl. VAT

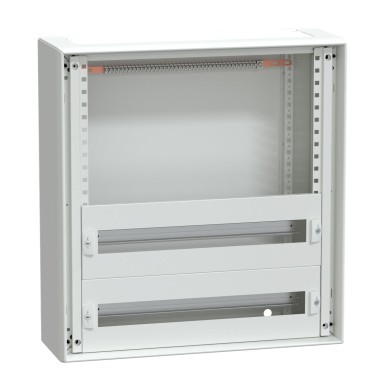

Enclosure, PrismaSeT G, for modular devices, wall mounted, W600mm, H630mm (2R + incomer), IP30, with front plates, Pack 250 - Schneider Electric

In cart

396,79 €

SPECIFICATIONS

Main

product range PrismaSeT G

Range PrismaSeT

[ipk] rated peak withstand current 53 kA se conformer à CEI 61439-1

type of product or equipment Boîtier

Product Name PrismaSeT Pack 250

[ui] rated insulation voltage 1000 V sur JdB principaux arrière se conformer à CEI 61439-2

box type Boîtier modulaire livré sous forme de kit
Armoire métallique
Armoire intérieure

faceplate type Modulaire
Zone 6M libre à commander séparément

Complementary

electrical insulation class Classe I

application Distribution électrique basse tension

surface finish Texturé
Mat

[icw] rated short-time withstand current 25 kA 1s se conformer à CEI 61439-1

description of the box/cabinet Coffret - largeur 600 mm

batch quantity Lot de 1

further information Peut être juxtaposé ou mis l'un sur l'autre

Handle front plate colour 630 mm

in rated operational current 250 A à 40 °C se conformer à CEI 61439-2

matter Feuille d'acier traité

product weight 12,5 kg

short circuit current 50 kA

number of vertical modules (50 mm) 12

width (w) 595 mm

mechanical robustness Essais sismiques - 2,5G se conformer à CEI 60068-2-57

network frequency 50/60 Hz

Colour Blanc (RAL 9003)

number of 18 mm modules per row 24

number of horizontal rows 2

depth 205 mm

equipment provided 1 xcoffret
1 xkit de mise à la terre
2 xplaque avant
2 xrail modulaire

Environment

ip degree of protection IP30 avec plastron
IP40 avec porte
IP41 avec porte et auvent
IP43 avec porte, auvent et joint IP43

product certificates ASTA
EAC

standards CEI 61439-1
CEI 61439-2
CEI 62208

shock resistance ik IK07 avec plastron
IK08 avec porte transparente
IK10 avec porte pleine

protective treatment Électrophorèse et poudre d'époxy-polyester polymérisée à chaud
