LVS04516 - Linergy BS - Bar for vertical JdB - flat perforated - L= 1675mm - 60x5 - Schneider Electric - Linergy BS - Bar for vertical JdB - flat perforated - L= 1675mm - 60x5 - Schneider Electric - 0

Pending restock

LVS04516 – Schneider Electric

EAN: 3606481870421

448,37 € excl. VAT

555,98 € incl. VAT

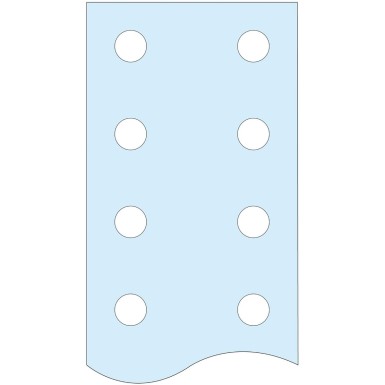

Linergy BS - Bar for vertical JdB - flat perforated - L= 1675mm - 60x5 - Schneider Electric

In cart

555,98 €

SPECIFICATIONS

Main

product range Linergy

Range Linergy

busbar description Barre plate

type of product or equipment Jeu de barres

Product Name Linergy BS

description d'installation Cellule - largeur 650 mm
Cellule - largeur 650 + 150 mm

Complementary

[ie] rated operational current 800 A à 35 °C

range compatibility PrismaSeT (PrismaSeT P) boîtier

[icw] rated short-time withstand current 15 kA (1s) pour 3 supports (latéral position)
30 kA (1s) pour 5 supports (latéral position)
40 kA (1s) pour 7 supports (latéral position)
15 kA (1s) pour 3 supports (arrière position)
30 kA (1s) pour 5 supports (arrière position)
40 kA (1s) pour 7 supports (arrière position)

length [l] 1675 mm

allowable current 800 A à 35 °C : <= IP31
750 A à 35 °C : > IP31

batch quantity Lot de 1

product weight 4,54 kg

busbar section 60 x 5 mm

facility management Vertical, position de fonctionnement : arrière
Vertical, position de fonctionnement : latéral

width (w) 60 mm

Colour Naturel

no connection Raccordement tous les 25 mm

type of connection with the busbar Trou taraudé Ø 10 mm

depth 5 mm

Environment

product certificates ASTA

standards CEI 61439-1
CEI 61439-2
