LVS04203 - Auxiliary bus duct, Linergy TA, 4P, 32A, vertical, lateral, L1755mm, Light grey, RAL 7035 - Schneider Electric - Auxiliary bus duct, Linergy TA, 4P, 32A, vertical, lateral, L1755mm, Light grey, RAL 7035 - Schneider Electric - 0
LVS04203 - Auxiliary bus duct, Linergy TA, 4P, 32A, vertical, lateral, L1755mm, Light grey, RAL 7035 - Schneider Electric - Auxiliary bus duct, Linergy TA, 4P, 32A, vertical, lateral, L1755mm, Light grey, RAL 7035 - Schneider Electric - 0
Pending restock

LVS04203 – Schneider Electric

EAN: 3606481932839
100,34 € excl. VAT
124,42 € incl. VAT

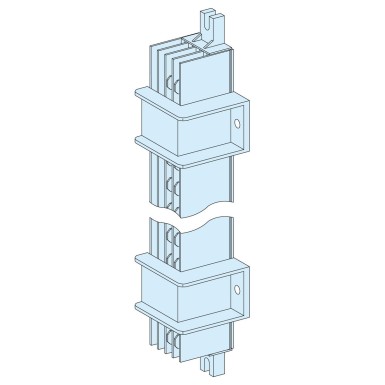

Auxiliary bus duct, Linergy TA, 4P, 32A, vertical, lateral, L1755mm, Light grey, RAL 7035 - Schneider Electric
 In cart
124,42 €
SPECIFICATIONS
Main
product range Linergy
Range Linergy
type of product or equipment Gaine pour bus auxiliaire
Product Name Linergy TA
description d'installation Gaine cellule - largeur 300 mm
[ui] rated insulation voltage 660 V
number of bypass outlets 166 points de dérivation avec connecteurs Faston par mètre linéaire
Complementary
equipment included 1 vis-étrier latérale
2 étriers
4 conducteurs en laiton avec point de dérivation
Gane isolante
[ie] rated operational current 32 A
range compatibility PrismaSeT (PrismaSeT P) boîtier
length [l] 1755 mm
batch quantity Lot de 1
Handle front plate colour 85 mm
product weight 1,62 kg
nominal voltage 230 V
facility management Vertical, position de fonctionnement : latéral
width (w) 50 mm
Colour Gris clair (RAL 7035)
Poles description 4P
Environment
degree of protection (ip) IP20
product certificates ASTA
standards CEI 61439-1
CEI 61439-2
Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

Baltelec
+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric LVS04203 is a professional PrismaSeT G Active solution designed for companies. BaltElec specializes in wholesale and supply in Estonia, Latvia, Lithuania, and Finland.

  • Authentic Schneider Electric product, documentation available on request.
  • Volume-based pricing – request a quote for larger quantities (MOQ may apply).
  • Fast delivery across the Baltics and Finland; cooperation with trusted couriers.
  • Technical support and selection assistance based on your requirements.

Price: Request a special offer. The price depends on quantity, delivery, and payment terms.

PrismaSeT G Active specifications may vary by configuration. For an exact match, please send us your application details or check the technical data sheet.
