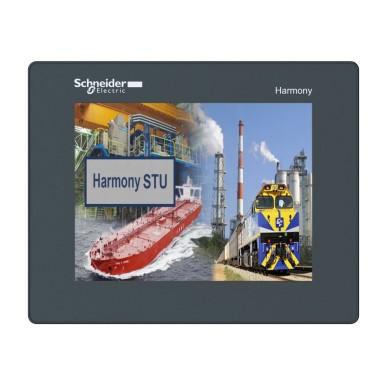

HMISTU855 - Harmony - STU touch terminal - 5.7p - QVGA - color TFT LED backlight - Schneider Electric - Harmony - STU touch terminal - 5.7p - QVGA - color TFT LED backlight - Schneider Electric - 0

Pending restock

HMISTU855 – Schneider Electric

EAN: 3606489909499

407,37 € excl. VAT

505,14 € incl. VAT

Harmony - STU touch terminal - 5.7p - QVGA - color TFT LED backlight - Schneider Electric

In cart

505,14 €

SPECIFICATIONS

Main

product range Harmony STO & STU

programmation software Vijeo Designer

operating system Harmony

type of product or equipment Écran tactile

processor type CPU ARM9

Complementary

feed Source externe

[un] rated nominal voltage 24 V CC

touch display Analogique

Handle front plate colour 129,15 mm

case material PC/PBT et PAA

inrush current 30 A

description of memory Mémoire d'application 16 Mo
Sauvegarde des données 64 ko

backlight life 50 000 heures

fixing method Trou Ø 22 mm

marking Avec logo Schneider
CE

processor frequency 333 MHz

Display colour 65536 couleurs

parking meter Accès à l'horodateur de l'automate

width (w) 163 mm

supply voltage limits 20,4…28,8 V

brightness 16 niveaux

power consumed in w 6,8 W

depth 56,5 mm

name of pages Limité par la capacité de la mémoire interne

character font Taïwanais (Chinois traditionnel)
Japonais (ANK, Kanji)
Chinois (chinois simplifié)
ASCII
Coréen

downloadable protocols Uni-TE
Modbus TCP/IP
Protocoles tiers
Modbus

display resolution 320 x 240 pixels QVGA

display size 5,7 pouces

built-in connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
liaison série COM1 - RJ45 femelle - RS232C/RS485 (taux: <= 115,2 kbits/s)
alimentation puissance - bornier débrochable à vis
1 Ethernet - RJ45

type of display Écran tactile couleur QVGA TFT

Environment

ip degree of protection IP20 se conformer à CEI 60529 (panneau arrière)
IP65 se conformer à CEI 60529 (face avant)

operating altitude <= 2000 m

product certificates UL classe 1 Div2 T4A ou T5
C-Tick
cULus
Marine
UKCA

immunity to micro-breaks 7 ms

operating ambient temperature 0…50 °C

standards UL 1604
FCC Class A
CEI 61000-6-2
EN 61131-2
UL 508

relative humidity 0…85 % sans condensation

storage room temperature -20…60 °C

mechanical shock resistance 15 gn pour 11 ms se conformer à CEI 60068-2-27

vibration resistance +/-3,5 mm (f = 5…9 Hz) se conformer à CEI 60068-2-6
1 gn (f = 9…150 Hz) se conformer à CEI 60068-2-6

resistance to nema environment NEMA 4X face avant (utilisation en intérieur)

resistance to radiated electromagnetic fields 10 V/m se conformer à CEI 61000-4-3
