NSYTRV43PE - Screw terminal - for protective conductor - 3 points - 4mmІ - green/yellow - Schneider Electric - Screw terminal - for protective conductor - 3 points - 4mmІ - green/yellow - Schneider Electric - 0

Pending restock

NSYTRV43PE – Schneider Electric

EAN: 3606480531996

5,27 € excl. VAT

6,53 € incl. VAT

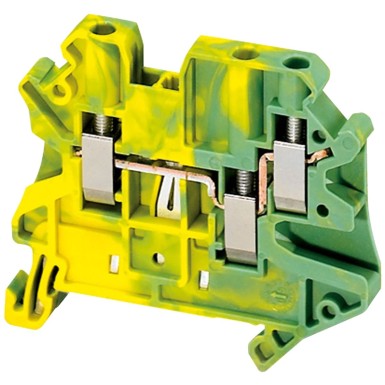

Screw terminal - for protective conductor - 3 points - 4mmІ - green/yellow - Schneider Electric

In cart

6,53 €

SPECIFICATIONS

Main

Range Linergy

name of the device TRV

type of product or equipment Bornier

Product Name Linergy TR

number of multiple connection points 1

nominal section 4 mm²

Complementary

associated accessories Enveloppes Spacial

number of connections 3

range compatibility Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys

length [l] 57,8 mm

batch quantity Lot de 50

dielectric constant 3,7 à 1 MHz

Handle front plate colour 47,5 mm

tightening torque 0,6…0,8 N.m

connection position Latérale

matter Polyamide 6/6 : boîtier isolant

product weight 17,8 g

mode d'installation Encliquetable

connection mode 1 borne à vis: en amont
2 borne à vis: en aval

width (w) 6,2 mm

Colour Vert jaune

Flame retardance V0, épaisseur0,8 mm se conformer à UL 94

measurement input number 2

dielectric loss 0,01 à 1 MHz se conformer à CEI 60250
0,01 à 1 MHz se conformer à VDE 0303-T4

wire stripping length 9 mm

cable section 0,14…6 mm², rigide
0,2…4 mm², souple avec extrémité de câble
0,14…6 mm², souple sans extrémité de câble

terminal block type Conducteur de protection

slip resistance 500 CTI (> 400 kB) se conformer à CEI 60093
500 CTI (> 400 kB) se conformer à VDE 0303-T30

surface resistance 1000 GΩ se conformer à CEI 60093
1000 GΩ se conformer à VDE 0303-T30

resistivity 10000 MΩ.m se conformer à CEI 60093
10000 MΩ.m se conformer à VDE 0303-T30

type of tool Raccordement: tournevis
Déconnexion: tournevis

dielectric strength 1000 V se conformer à CEI 60243-1

Environment

product certificates LR
DNV
CSA
EAC
GL
CEI-Ex
cURus
ATEX

operating temperature -40…130 °C se conformer à CEI 60216-1
-40…130 °C se conformer à VDE 0304-T21
