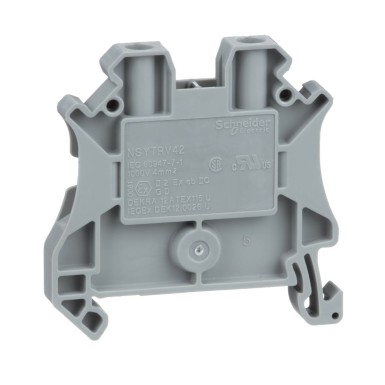

NSYTRV42 - Screw terminal - passing - 2 points - 4mmІ - gray - Schneider Electric - Screw terminal - passing - 2 points - 4mmІ - gray - Schneider Electric - 0

Pending restock

NSYTRV42 – Schneider Electric

EAN: 3606480531897

0,59 € excl. VAT

0,74 € incl. VAT

Screw terminal - passing - 2 points - 4mmІ - gray - Schneider Electric

BaltElec stock

Out of stock

Supplier Warehouse

In stock

Available, 5–7 days wait

In cart

0,74 €

SPECIFICATIONS

Main

Accessory category Accessoire de connexion

Range Linergy

name of the device TRV

type of product or equipment Bornier

Product Name Linergy TR

number of multiple connection points 1

nominal section 4 mm²

Complementary

associated accessories Enveloppes Spacial

[in] rated current 32 A se conformer à EN/CEI 60947-7-1
30 A CSA
30 A se conformer à ATEX Exe II Ex II 2 GD
30 A cURus

[ue] rated operational voltage 1000 V se conformer à EN/CEI 60947-7-1
600 V CSA
690 V se conformer à ATEX Exe II Ex II 2 GD
600 V cURus

number of connections 2

range compatibility Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys

length [l] 47,7 mm

batch quantity Lot de 50

dielectric constant 3,7 à 1 MHz

Handle front plate colour 47,5 mm

tightening torque 0,6…0,8 N.m

connection position Latérale

matter Polyamide 6/6 : boîtier isolant
Alliage contenant du cuivre étamé : connecteur et vis
Alliage contenant du cuivre étamé : branchement commun
Alliage au chrome-nickel : ressort

product weight 9,4 g

mode d'installation Encliquetable

connection mode 1 borne à vis: en amont (M3)
1 borne à vis: en aval (M3)

width (w) 6,2 mm

Colour Gris

Flame retardance V0, épaisseur0,8 mm se conformer à UL 94

measurement input number 2

dielectric loss 0,01 à 1 MHz se conformer à CEI 60250
0,01 à 1 MHz se conformer à VDE 0303-T4

wire stripping length 9 mm

cable section 0,14…6 mm², rigide câble avec embout
0,2…4 mm², souple câble avec embout
0,2…6 mm², rigide câble sans embout
0,2…6 mm², souple câble sans embout

terminal block type Passant

slip resistance 500 CTI (> 400 kB) se conformer à CEI 60093
500 CTI (> 400 kB) se conformer à VDE 0303-T30

surface resistance 1000 GΩ se conformer à CEI 60093
1000 GΩ se conformer à VDE 0303-T30

resistivity 10000 MΩ.m se conformer à CEI 60093
10000 MΩ.m se conformer à VDE 0303-T30

type of tool Raccordement: tournevis
Déconnexion: tournevis

dielectric strength 1000 V se conformer à CEI 60243-1

Environment

product certificates cURus
VDE
CEI-Ex
ATEX
GL
EAC
LR
CSA
DNV

operating temperature -40…130 °C se conformer à CEI 60216-1
-40…130 °C se conformer à VDE 0304-T21
