NSYTRV1502BB - Screw terminal - passing - bolt-bolt - 2 points - 150mmІ - gray - Schneider Electric - Screw terminal - passing - bolt-bolt - 2 points - 150mmІ - gray - Schneider Electric - 0

Pending restock

NSYTRV1502BB – Schneider Electric

EAN: 3606480532269

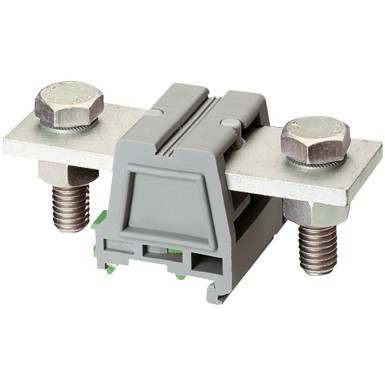

Screw terminal - passing - bolt-bolt - 2 points - 150mmІ - gray - Schneider Electric

SPECIFICATIONS

Main

Accessory category Accessoire de connexion

Range Linergy

name of the device TRV

type of product or equipment Bornier

Product Name Linergy TR

number of multiple connection points 1

nominal section 150 mm²

Complementary

associated accessories Enveloppes Spacial

[in] rated current 309 A se conformer à EN/CEI 60947-7-1
285 A cURus
275 A CSA

[ue] rated operational voltage 1000 V se conformer à EN/CEI 60947-7-1
600 V cURus
600 V CSA

number of connections 2

range compatibility Prisma G
Prisma P
Prisma PH
Spacial

length [l] 119 mm

batch quantity Lot de 10

dielectric constant 3,7 à 1 MHz

Handle front plate colour 100 mm

tightening torque 25…30 N.m

connection position Latérale

matter Polyamide 6/6 : boîtier isolant
Alliage contenant du cuivre étamé : connecteur et vis
Alliage contenant du cuivre étamé : branchement commun
Alliage au chrome-nickel : ressort

mode d'installation Encliquetable

connection mode 1 cosse: en amont (M12)
1 cosse: en aval (M12)

width (w) 46 mm

Colour Gris

Flame retardance V0, épaisseur0,8 mm se conformer à UL 94

dielectric loss 0,01 à 1 MHz se conformer à CEI 60250
0,01 à 1 MHz se conformer à VDE 0303-T4

wire stripping length 29 mm

cable section 35…150 mm², rigide
50…150 mm², souple sans extrémité de câble

terminal block type Passant

slip resistance 500 CTI (> 400 kB) se conformer à CEI 60093
500 CTI (> 400 kB) se conformer à VDE 0303-T30

surface resistance 1000 GΩ se conformer à CEI 60093
1000 GΩ se conformer à VDE 0303-T30

resistivity 10000 MΩ.m se conformer à CEI 60093
10000 MΩ.m se conformer à VDE 0303-T30

type of tool Raccordement: tournevis
Déconnexion: tournevis

dielectric strength 1000 V se conformer à CEI 60243-1

Environment

product certificates cURus
GL
EAC
CSA

operating temperature -40…130 °C se conformer à CEI 60216-1
-40…130 °C se conformer à VDE 0304-T21
