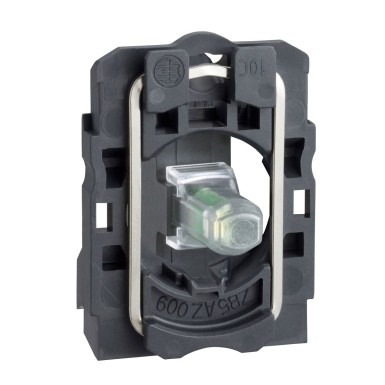

ZB5AVM1 - Complete body/light block assembly, Harmony XB5, plastic, universal LED, body/fixing collar, 230…240V AC - Schneider Electric - Complete body/light block assembly, Harmony XB5, plastic, universal LED, body/fixing collar, 230…240V AC - Schneider Electric - 0

Pending restock

ZB5AVM1 – Schneider Electric

EAN: 3389110907957

7,61 € excl. VAT

9,43 € incl. VAT

Complete body/light block assembly, Harmony XB5, plastic, universal LED, body/fixing collar, 230…240V AC - Schneider Electric

In cart

9,43 €

SPECIFICATIONS

Default

Series Harmony XB5

Main

product range Harmony XB5

name of the device ZB5

type of product or equipment Bloc corps/lumineux complet

[ui] rated insulation voltage 600 V (degré de pollution 3) se conformer à EN 60947-1

mounting base material Plastique

type of signage Fixe

sale by indivisible quantity 1

Complementary

lamp base Tout LED

[un] rated nominal voltage 230...240 V CA à 50/60 Hz

power consumption 14 mA

tightening torque 0,8…1,2 N.m se conformer à EN 60947-1

[uimp] rated impulse withstand voltage 6 kV se conformer à EN 60947-1

product weight 0,022 kg

description of iso n°1 terminals (X1-X2)PL

connection mode Borniers à vis-étrier, <= 2 x 1,5mm² avec embout se conformer à EN 60947-1
Borniers à vis-étrier, >= 1 x 0,22 mm² sans embout se conformer à EN 60947-1

lifetime 100000 H à la tension nominale et à 25 °C

supply voltage limits 195…264 V CA

screw head shape Transversal compatible avec cruciforme Philips n° 1 tournevis
Transversal compatible avec pozidriv n°1 tournevis
Perforé compatible avec plat Ø 4 mm tournevis
Perforé compatible avec plat Ø 5,5 mm tournevis

overall height cao 42 mm

product presentation Sous-ensembles de base

overall width cao 30 mm

resistance to shock waves 1 kV se conformer à CEI 61000-4-5

Light source colour Blanc

overall depth cao 32 mm

light source Universal LED

Environment

product certificates BV
DNV
LROS (Lloyds register of shipping)
CSA
GL
listé UL

class of protection against electric shock Classe II se conformer à CEI 60536

operating ambient temperature -40…70 °C

standards JIS C8201-5-1
EN/CEI 60947-1
CSA C22.2 No 14
EN/CEI 60947-5-4
EN/CEI 60947-5-1
UL 508
JIS C8201-1

storage room temperature -40…70 °C

mechanical shock resistance 30 gn (durée = 18 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
50 gn (durée = 11 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27

electromagnetic emission Classe B se conformer à CEI 55011

vibration resistance 5 gn (f= 2…500 Hz) se conformer à CEI 60068-2-6

resistance to radiated electromagnetic fields 10 V/m se conformer à CEI 61000-4-3

protective treatment TH

resistance to electrostatic discharges 6 kV sur le contact (parties métalliques) se conformer à CEI 61000-2-6
8 kV à l’air libre (dans les pièces d'isolation) se conformer à CEI 61000-2-6

resistance to fast transients 2 kV se conformer à CEI 61000-4-4
