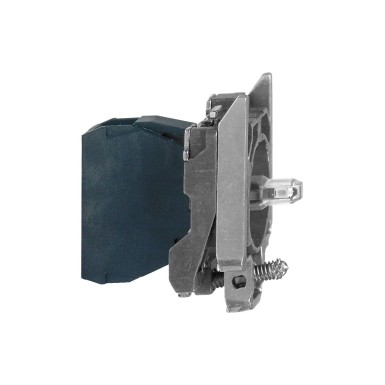

ZB4BVBG1 - Complete body/light block assembly, Harmony XB4, metal, universal LED, body/fixing collar, 24…120V AC DC - Schneider Electric - Complete body/light block assembly, Harmony XB4, metal, universal LED, body/fixing collar, 24…120V AC DC - Schneider Electric - 0

Pending restock

ZB4BVBG1 – Schneider Electric

EAN: 3389110070163

12,81 € excl. VAT

15,88 € incl. VAT

Complete body/light block assembly, Harmony XB4, metal, universal LED, body/fixing collar, 24…120V AC DC - Schneider Electric

In cart

15,88 €

SPECIFICATIONS

Default

Series Harmony XB4

Main

product range Harmony XB4

name of the device ZB4

type of product or equipment Bloc corps/lumineux complet

[ui] rated insulation voltage 600 V (degré de pollution 3) se conformer à EN 60947-1

mounting base material Zamak

type of signage Fixe

sale by indivisible quantity 1

Complementary

lamp base Tout LED

[un] rated nominal voltage 24...120 V CA/CC à 50/60 Hz

tightening torque 0,8…1,2 N.m se conformer à EN 60947-1

[uimp] rated impulse withstand voltage 6 kV se conformer à EN 60947-1

product weight 0,054 kg

description of iso n°1 terminals (X1-X2)PL

connection mode Borniers à vis-étrier, <= 2 x 1,5mm² avec embout
Borniers à vis-étrier, >= 1 x 0,22 mm² sans embout

lifetime 100000 H à la tension nominale et à 25 °C

supply voltage limits 19,2…132 V CC
21,6…132 V CA

screw head shape Transversal compatible avec cruciforme Philips n° 1 tournevis
Transversal compatible avec pozidriv n°1 tournevis
Perforé compatible avec plat Ø 4 mm tournevis
Perforé compatible avec plat Ø 5,5 mm tournevis

overall height cao 47 mm

product presentation Sous-ensembles de base

overall width cao 30 mm

resistance to shock waves 1 kV se conformer à CEI 61000-4-5

Light source colour Blanc

overall depth cao 37 mm

light source Universal LED

Environment

product certificates DNV
listé UL
BV
GL
LROS (Lloyds register of shipping)
CSA

class of protection against electric shock Classe I se conformer à CEI 60536

operating ambient temperature -40…70 °C

standards EN/CEI 60947-1
UL 508
EN/CEI 60947-5-1
CSA C22.2 No 14
EN/CEI 60947-5-5
JIS C8201-5-1
EN/CEI 60947-5-4
JIS C8201-1

storage room temperature -40…70 °C

mechanical shock resistance 30 gn (durée = 18 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
50 gn (durée = 11 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27

electromagnetic emission Classe B se conformer à CEI 55011

vibration resistance 5 gn (f= 2…500 Hz) se conformer à CEI 60068-2-6

resistance to radiated electromagnetic fields 10 V/m se conformer à CEI 61000-4-3

protective treatment TH

resistance to electrostatic discharges 6 kV sur le contact (parties métalliques) se conformer à CEI 61000-2-6
8 kV à l’air libre (dans les pièces d'isolation) se conformer à CEI 61000-2-6

resistance to fast transients 2 kV se conformer à CEI 61000-4-4
