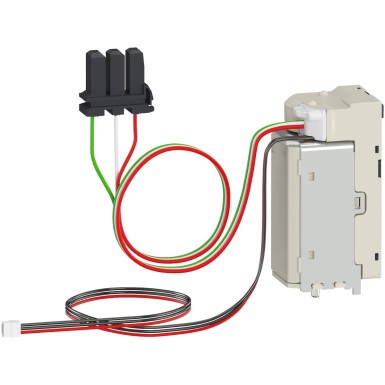

LV836668SP - MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, diagnostics and communicating, 24VAC 50/60Hz, 24/30VDC, spare part - Schneider Electric - MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, diagnostics and communicating, 24VAC 50/60Hz, 24/30VDC, spare part - Schneider Electric - 0

Pending restock

LV836668SP – Schneider Electric

EAN: 3606481186720

166,64 € excl. VAT

206,63 € incl. VAT

MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, diagnostics and communicating, 24VAC 50/60Hz, 24/30VDC, spare part - Schneider Electric

In cart

206,63 €

SPECIFICATIONS

Default

Series Masterpact MTZ

Main

Range Masterpact

name of the device MN diag

type of product or equipment Déclencheur à minimum de tension

type of offer Pièce de rechange

voltage release type Instantané

circuit breaker mounting method Fixed/drawout

Complementary

application Sécurité

range compatibility Masterpact (MasterPacT MTZ1) disjoncteur
Masterpact (MasterPacT MTZ2) disjoncteur
Masterpact (MasterPacT MTZ3) disjoncteur

maintenance of energy consumption 4,5 W

maximum response time 45 ms avec ouverture pour Masterpact MTZ1
95 ms avec ouverture pour Masterpact MTZ2
95 ms avec ouverture pour Masterpact MTZ3

signaling function Erreur
MN ouvert
Bobine alimentée

supply voltage [un] 24 V CA 50/60 Hz
24...30 V CC

voltage threshold setting 0,35…0,7 Un ouverture
0,85 Un fermeture

equipment provided 1 fiche d'instruction

order type Communicant
