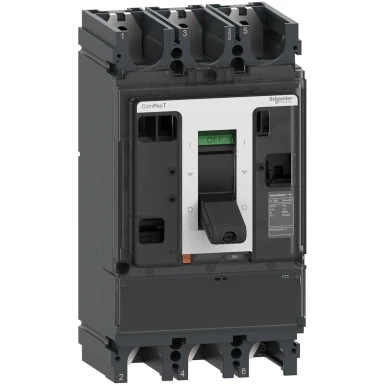

C403400DS - Switch disconnector, ComPacT NSX400NA DC, 3 poles, fixed, thermal current Ith 400A - Schneider Electric

Expected in 2-4 weeks EAN: 3606482003514

EAN: 3606482003514

885,15 € excl. VAT

1 079,88 € incl. VAT

Text About:

Switch disconnector, ComPacT NSX400NA DC, 3 poles, fixed, thermal current Ith 400A - Schneider Electric

In cart

1 079,88 €

SPECIFICATIONS

Main

Range ComPacT nouvelle génération

sectioning ability Oui se conformer à EN/CEI 60947-3

[icw] rated short-time withstand current 7,5 kA pendant 1s

job category DC-22A

name of the device NSX400NA DC

type of product or equipment Interrupteur-sectionneur

Product Name ComPacT NSX DC nouvelle génération

[ui] rated insulation voltage 750 V CC

visible cut Non

breaking capacity coding NA

Complementary

"no" connection 45 mm

[icm] rated short circuit making capacity 7,5 kA sectionneur seulement

[ie] rated operational current DC-22A: 400 A CC 750 V

[ue] rated operational voltage 750 V CC

application Distribution

[ith] conventional thermal current 400 A à 40 °C

depth (d) 110 mm

[uimp] rated impulse withstand voltage 8 kV

height (h) 255 mm

mechanical life 5000 cycle

product weight 6 kg

fully apparent cut Oui

mode d'installation Fixe

electrical life 1000 cycle 750 V CC In

width (w) 140 mm

upstream connection Façade

downstream connection Façade

mounting bracket Plaque arrière

Network type CC

order type Par maneton

Poles description 3P

Environment

degree of pollution 3 se conformer à CEI 60664-1

ip degree of protection IP40 se conformer à CEI 60529

product certificates CE
EAC
CCC

class of protection against electric shock Classe II

operating ambient temperature -25…70 °C

standards EN/CEI 60947-1
EN/CEI 60947-3

shock resistance ik IK07 se conformer à CEI 62262

storage room temperature -50…85 °C
