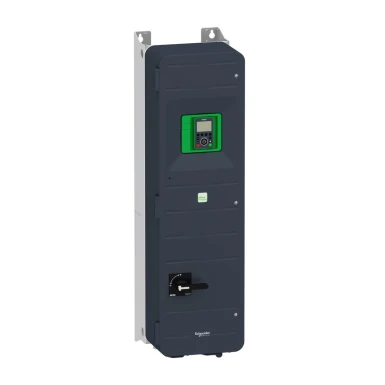

ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 - Schneider Electric

Expected in 2-4 weeks
ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 - Schneider Electric - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 - Schneider Electric - 0
ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 - Schneider Electric
8 325,68 € excl. VAT
10 323,85 € incl. VAT
Text About:
Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 - Schneider Electric
10 323,85 €
SPECIFICATIONS
Main
Device short name ATV650
product specific application Process and utilities
Safety function STO (safe torque off) SIL 3
emc filter Integrated with 150 m conforming to EN/IEC 61800-3 category C3
motor power kW 75 kW (heavy duty)
90 kW (normal duty)
variant With disconnect switch
Complementary
Accuracy +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
maximum switching current Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Product certifications UL
DNV-GL
ATEX zone 2/22
TÜV
CSA
UL
data formats 8 bits, configurable odd, even or no parity
Handle front plate colour 1250 mm
Product or component type Variable speed drive
[us] rated supply voltage 380...480 V - 15...10 %
minimum switching current Relay output R1, R2, R3: 5 mA at 24 V DC
noise level 69.9 dB
marking CE
Quantity per set 1
Analogue input number 3
Analogue input type AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits
AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
refresh time Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Analogue output number 2
Asynchronous motor control profile Constant torque standard
Variable torque standard
Constant torque standard
Discrete input logic Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)
output voltage <= power supply voltage
width (w) 345 mm
Analogue output type Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits
Software-configurable current DQ-, DQ+: 30 V DC
Software-configurable current DQ-, DQ+: 100 mA
Discrete input type DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
isolation Between power and control terminals
switching frequency 2...8 kHz adjustable
2.5...8 kHz with derating factor
Local signalling 3 LEDs (dual colour) for embedded communication status
4 LEDs (dual colour) for communication module status
1 LED (red) for presence of voltage
3 LEDs for local diagnostic
motor slip compensation Not available in permanent magnet motor law
Automatic whatever the load
Can be suppressed
Not available in permanent magnet motor law
Mounting mode Wall mount
Braking to standstill By DC injection
Discrete input number 8
Net weight 50 kg
physical interface Ethernet
2-wire RS 485
Discrete output type Relay outputs R1A, R1B, R1C 250 V AC 3000 mA
Relay outputs R1A, R1B, R1C 30 V DC 3000 mA
Relay outputs R2A, R2C 250 V AC 5000 mA
Relay outputs R2A, R2C 30 V DC 5000 mA
Relay outputs R3A, R3C 250 V AC 5000 mA
Relay outputs R3A, R3C 30 V DC 5000 mA
Operating position Vertical +/- 10 degree
communication port protocol Modbus TCP
Modbus serial
Modbus serial
Motor power hp 100 hp heavy duty
125 hp normal duty
connector type RJ45 (on the remote graphic terminal) for Modbus serial
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
depth 436 mm
line current 135.8 A at 480 V (normal duty)
134.3 A at 380 V (heavy duty)
118.1 A at 480 V (heavy duty)
156.2 A at 380 V (normal duty)
continuous output current 145 A at 2.5 kHz for heavy duty
173 A at 2.5 kHz for normal duty
Motor power range ac-3 55…100 kW at 480…500 V 3 phases
maximum transient current 217.5 A during 60 s (heavy duty)
190.3 A during 60 s (normal duty)
Permissible temporary current boost 1.5 x In during 60 s (heavy duty)
1.1 x In during 60 s (normal duty)
Pollution degree 3
electrical connection Line side: screw terminal 95...120 mm²/AWG 3/0...250 kcmil
Motor: screw terminal 120 mm²/AWG 4...250 kcmil
Control: removable screw terminals 0.5...1.5 mm²
linearity error AO1, AO2: +/- 0.2 % for analog output
AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
Network number of phases 3 phases
nominal switching frequency 2.5 kHz
Enclosure mounting Wall mounted
maximum output frequency 500 kHz
Exchange mode Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Input compatibility DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2
DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
Product destination Asynchronous motors
Synchronous motors
Maximum input current 156.2 A
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Method of access Slave Modbus TCP
synchronous motor control profile Synchronous reluctance motor
Permanent magnet motor
Supply frequency 50...60 Hz - 5...5 %
apparent power 98.2 kVA at 480 V (heavy duty)
112.9 kVA at 480 V (normal duty)
number of addresses 1…247 for Modbus serial
Supply Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
variable speed drive application selection Food and beverage processing other application
Mining mineral and metal fan
Mining mineral and metal pump
Oil and gas fan
Water and waste water other application
Building - HVAC screw compressor
Food and beverage processing pump
Food and beverage processing fan
Food and beverage processing atomization
Oil and gas electro submersible pump (ESP)
Oil and gas water injection pump
Oil and gas jet fuel pump
Oil and gas compressor for refinery
Water and waste water centrifuge pump
Water and waste water positive displacement pump
Water and waste water electro submersible pump (ESP)
Water and waste water screw pump
Water and waste water lobe compressor
Water and waste water screw compressor
Water and waste water compressor centrifugal
Water and waste water fan
Water and waste water conveyor
Water and waste water mixer
acceleration and deceleration ramps Linear adjustable separately from 0.01...9999 s
Protection type Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive
Thermal protection: motor
Option card Slot A: communication module, PROFINET
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
Communication module, BACnet MS/TP
Communication module, Ethernet Powerlink
Slot A: communication module, Profibus DP V1
relay output type Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Transmission rate 10, 100 Mbits
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Type of cooling Forced convection
frequency resolution Analog input: 0.012/50 Hz
Display unit: 0.1 Hz
Prospective line isc 50 kA
transmission frame RTU
Relay output number 3
Sampling duration 5 ms +/- 1 ms (DI5, DI6) - discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input
10 ms +/- 1 ms (AO1) - analog output
2 ms +/- 0.5 ms (DI1...DI4) - discrete input
Speed drive output frequency 0.1…500 Hz
Type of polarization No impedance
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP55 conforming to IEC 60529
IP55 conforming to IEC 61800-5-1
operating altitude 1000...4800 m with current derating 1 % per 100 m
<= 1000 m without derating
Range of product Altivar Process ATV600
ambient air temperature for operation 40…50 °C (with derating factor)
-15…40 °C (without derating)
electromagnetic compatibility Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
overvoltage category III
standards EN/IEC 61800-3
EN/IEC 61800-3 environment 1 category C2
EN/IEC 61800-3 environment 2 category C3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1
relative humidity 5…95 % without condensation conforming to IEC 60068-2-3
Maximum thdi <48 % from 80...100 % of load conforming to IEC 61000-3-12
Regulation loop Adjustable PID regulator
vibration resistance 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
insulation resistance > 1 MOhm 500 V DC for 1 minute to earth
About this product

The ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 is formulated to meet the obligations of industry specialists, such as circuit designers, cable technicians, maintenance service providers, and equipment creators. ATV650D90N4E yields first-rate performance and utility for specialists in the power engineering industry. This Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 and other Altivar 650 from Schneider Electric can be obtained at the lowest cost and lead time through baltelec.eu, a well-known retailer catering to industry experts in their supply needs.

Professionals who have procured Schneider Electric Altivar 650 have consistently admired the creator's stability. It has been pointed out that the exceptional performance of ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 extends to a broad spectrum of use. Its first-rate features make it great selection for diverse needs, securing success in your industrial, tertiary, and automation endeavors.

BaltElec team commits in fulfilling industrial and tertiary professionals’ needs. We get the distinct specifications and expectations of our clients in the industry. By cooperating with Baltelec.eu, your team obtain access to the leading fees and stock of first-rate products like ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 from Schneider Electric at a competitive price. Registered customers enjoy further discounts and first-class attention.

Make a move and purchase ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 at our reliable and easy-to-use internet shop. Don't delay in making this thoughtful option that assures the finest quality and fulfills the unique necessities of clients like yourselves.

In the event of any questions or concerns about ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 or any other Schneider Electric products, message us or refer to our FAQ section section below. We have collected answers to routine requests for information to guide you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, ATV650D90N4E - Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 from Schneider Electric is sure, economical, and elite to other producers in the Altivar 650 category. Feel free to make it a part of your arrangement at once. Acquire at BaltElec, your preferred supplier for all your Altivar 650.

In our Baltelec.eu digital store you will come across Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 - ATV650D90N4E worth 10,157.33 €, which will be a sure and modern solution for your preferences. This object is formulated by the Schneider Electric brand using the up-to-the-minute technologies and aligns with the top standards of precaution and competence. We provide things from the Altivar 650 category that fuse sturdiness and functionality, which is an superb option for various operations. Independent of whether you need gear for small output or for adept industrial utilization, Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 will be a safe facilitator in your occupation.

Baltelec attempts to make the buying process as smooth and fast as attainable for our clients. We offer detailed outlines and high-quality visuals of Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 so that you can make an briefed choice. A team of adepts is always ready to help you with any concerns in the Altivar 650 section connected to the preferment and use of goods. We are certain that Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55 will meet your needs and become an significant element of your gear for just 10,157.33 €.
