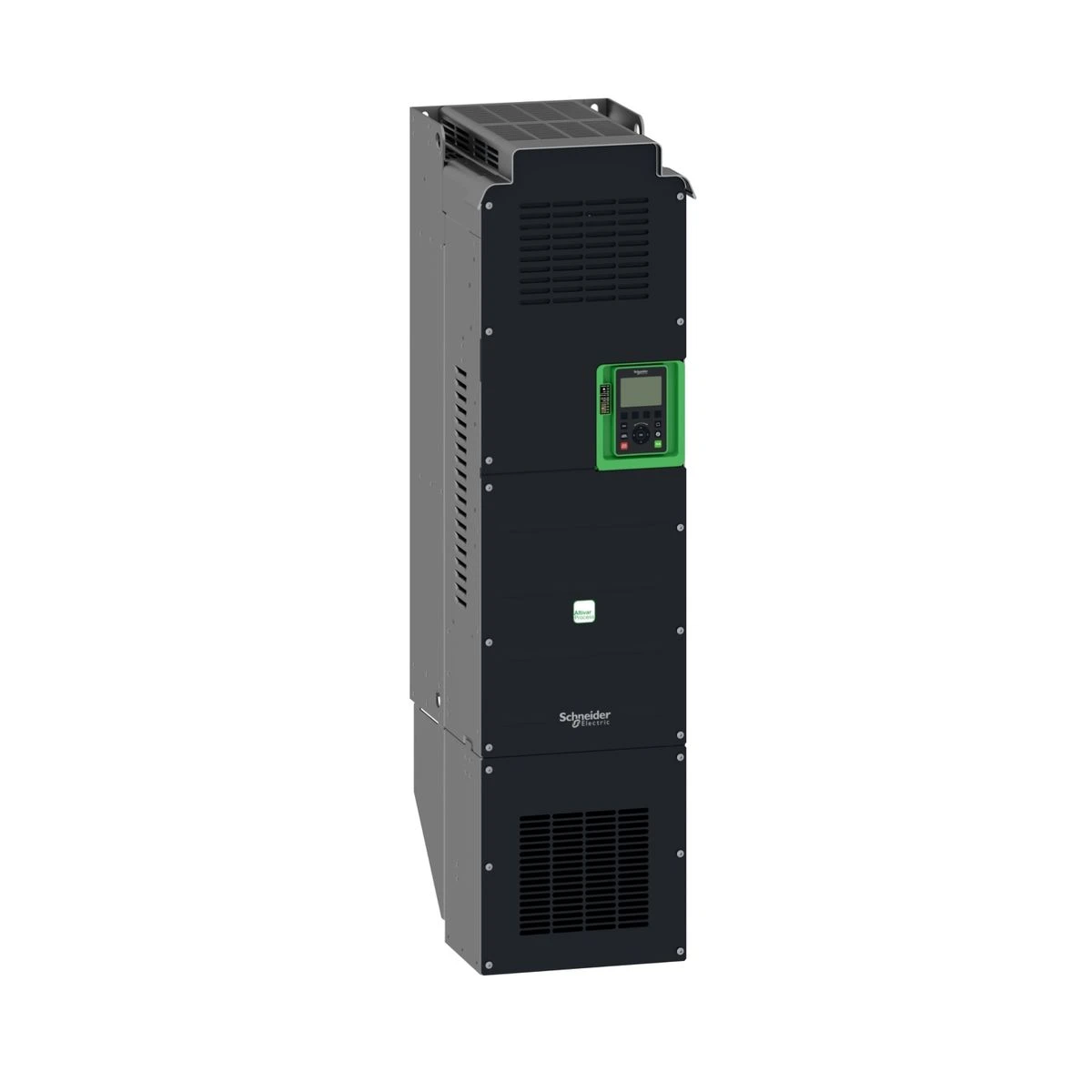

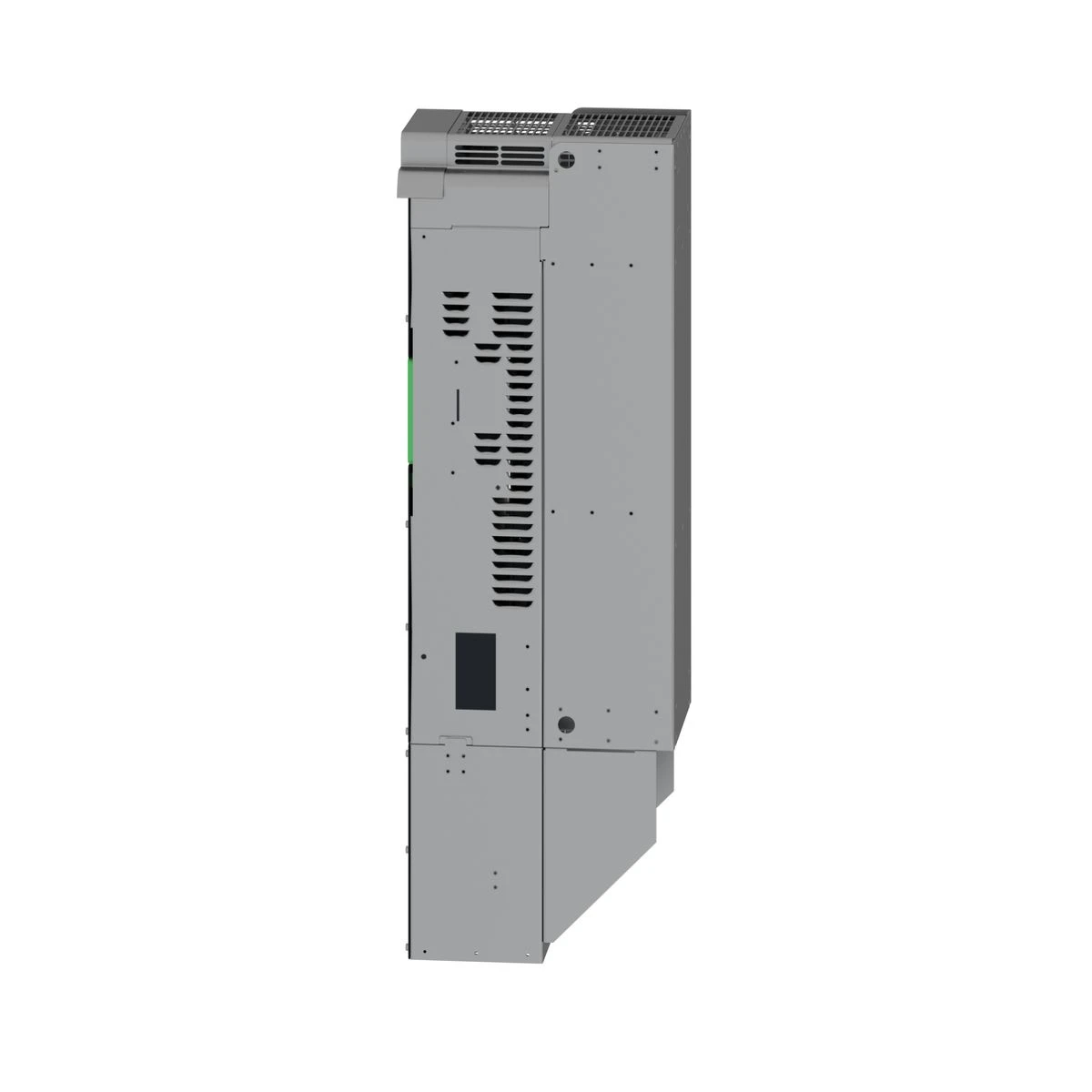

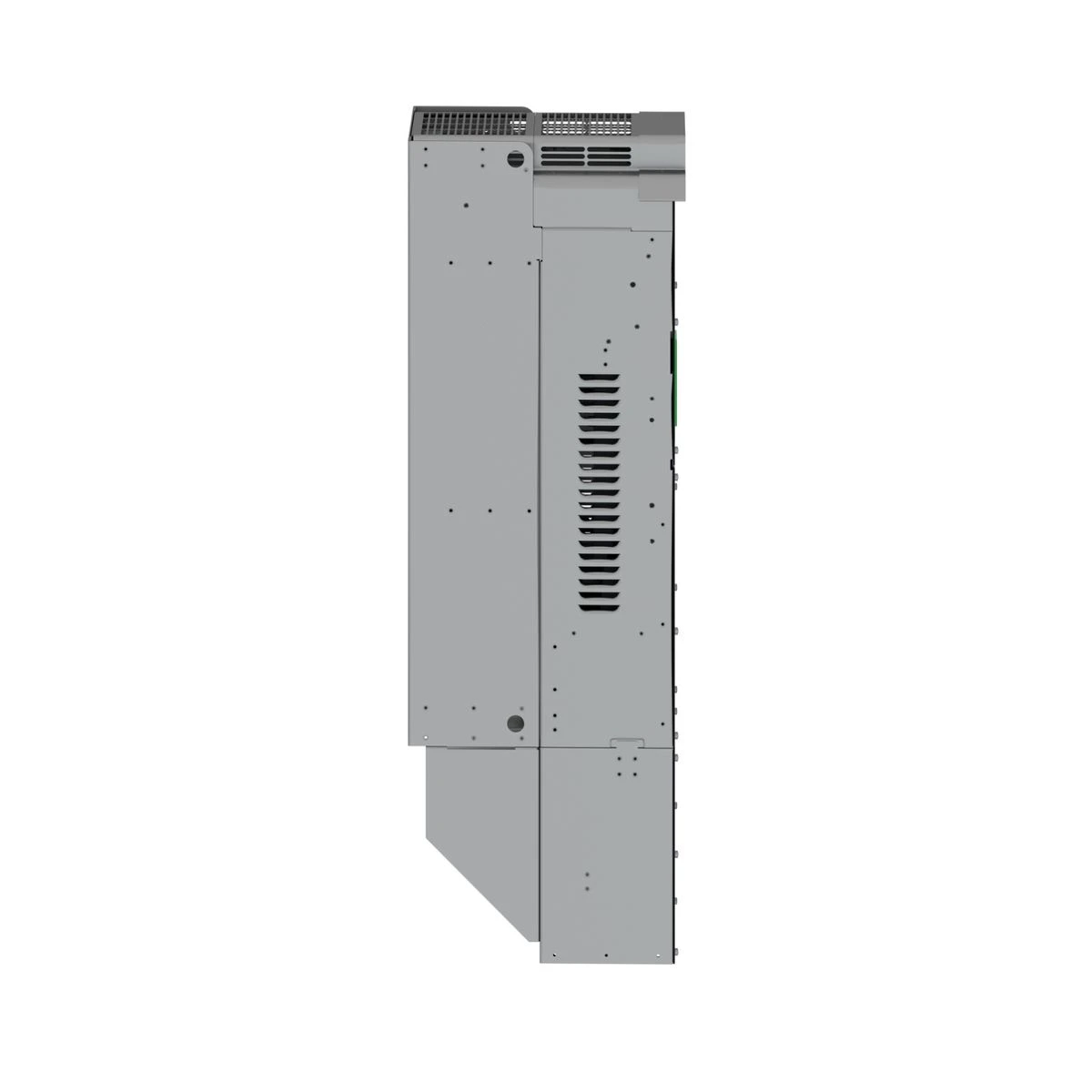

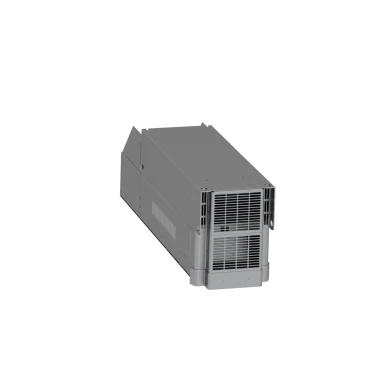

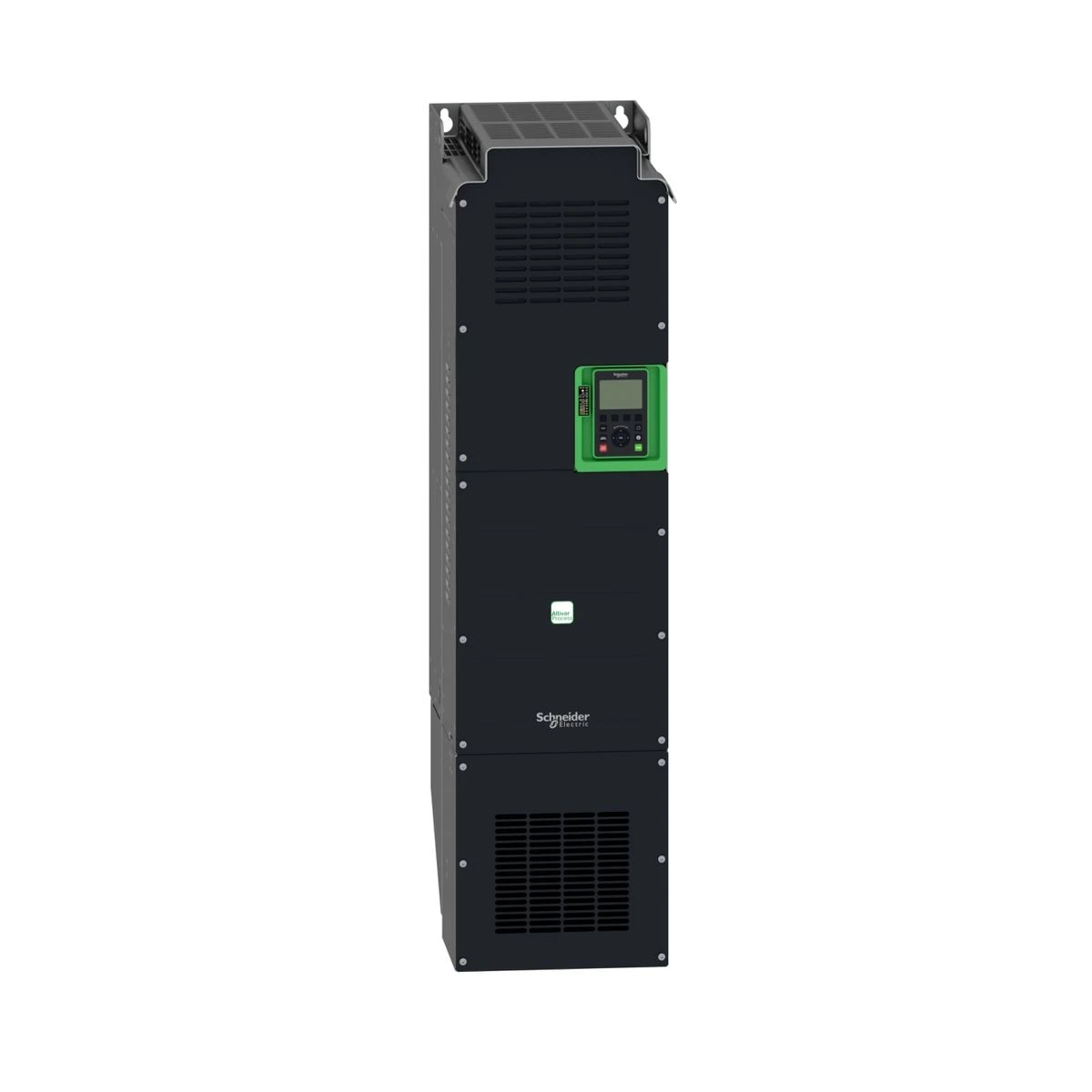

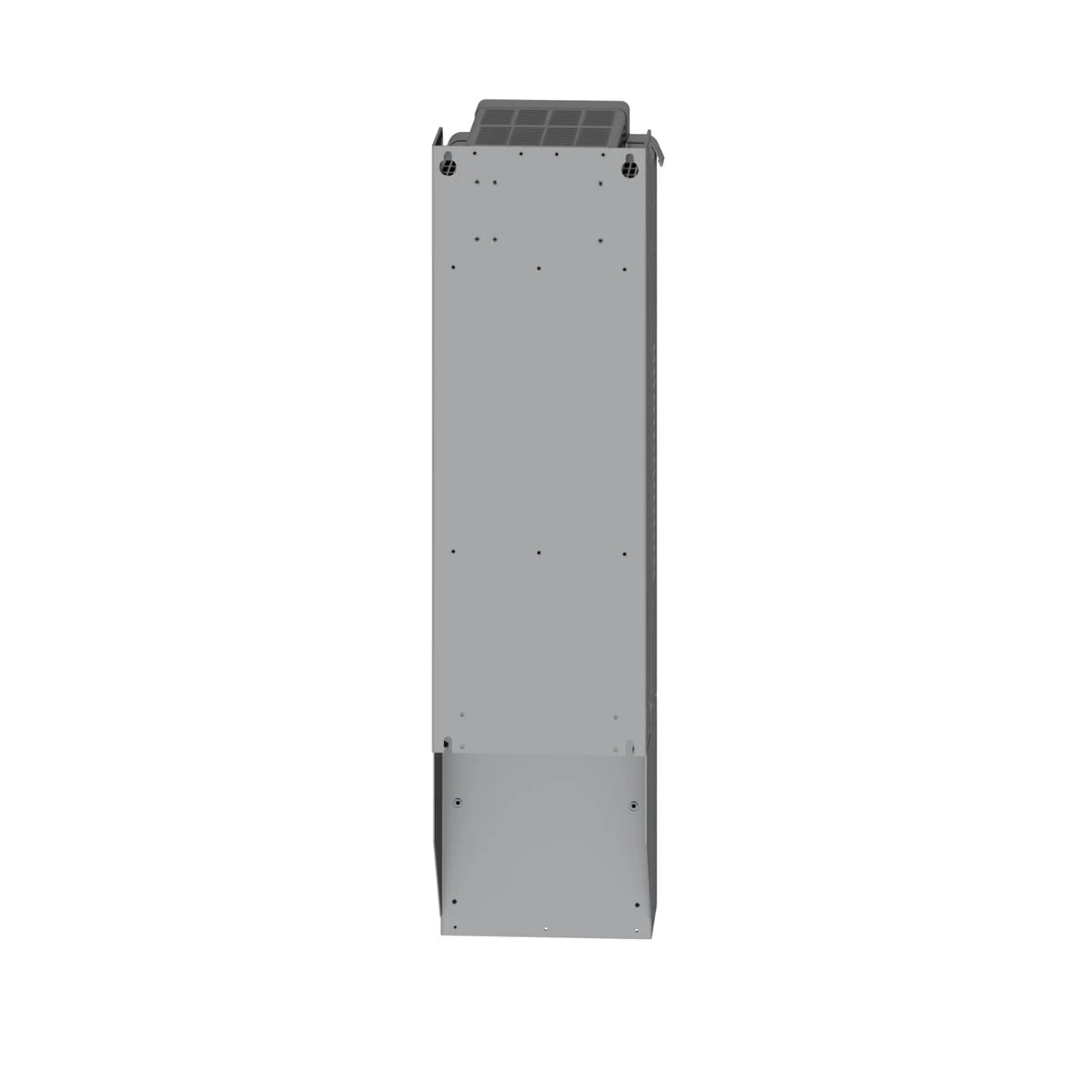

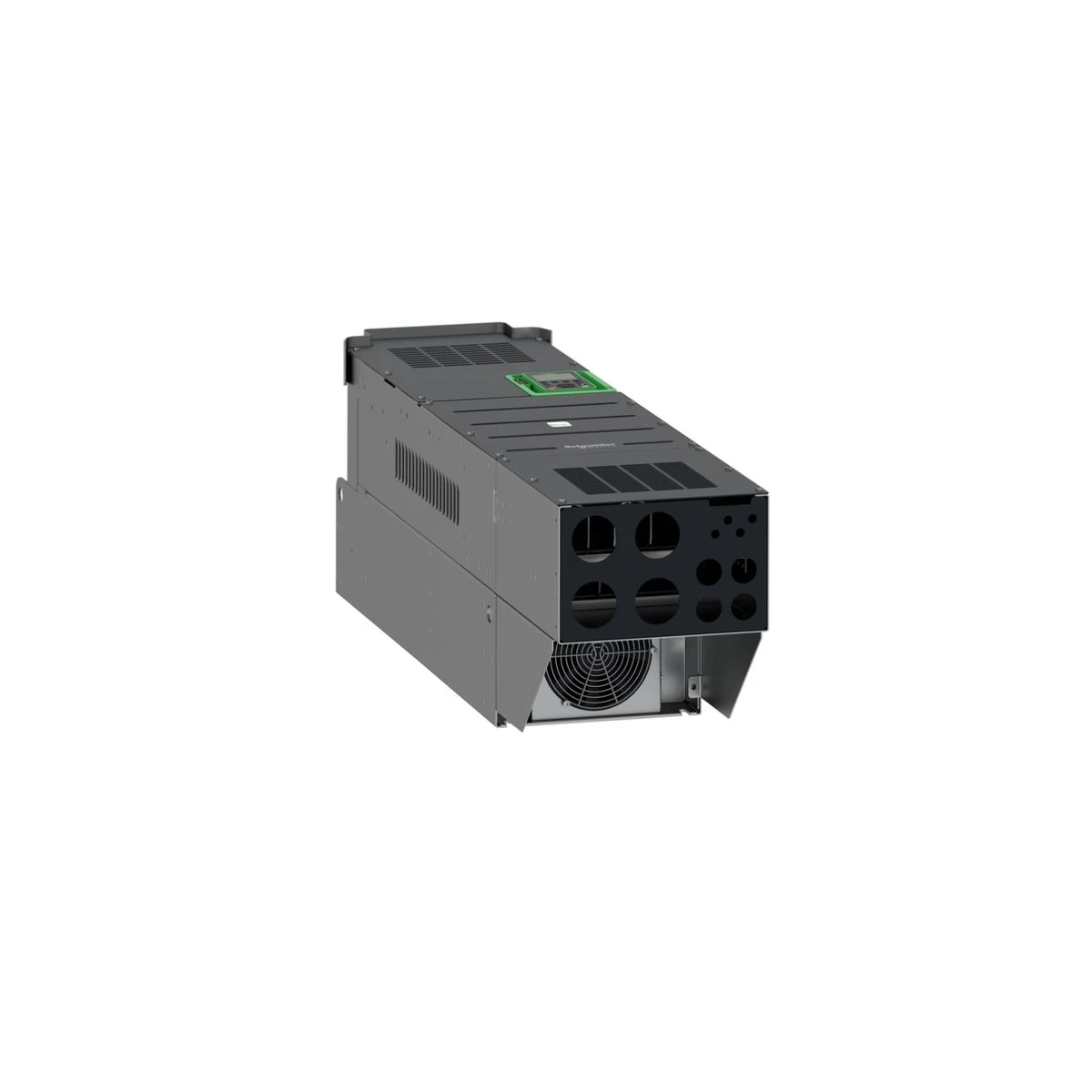

ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 - Schneider Electric
55 kW (heavy duty)
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
DNV-GL
TÜV
CSA
ATEX zone 2/22
ATEX INERIS
AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits
AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Optimized torque mode
Variable torque standard
Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)
Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits
Software-configurable current DQ-, DQ+: 30 V DC
Software-configurable current DQ-, DQ+: 100 mA
2...8 kHz adjustable
3 LEDs (dual colour) for embedded communication status
4 LEDs (dual colour) for communication module status
1 LED (red) for presence of voltage
Not available in permanent magnet motor law
Can be suppressed
Adjustable
2-wire RS 485
Relay outputs R1A, R1B, R1C 30 V DC 3000 mA
Relay outputs R2A, R2C 250 V AC 5000 mA
Relay outputs R2A, R2C 30 V DC 5000 mA
Relay outputs R3A, R3C 250 V AC 5000 mA
Relay outputs R3A, R3C 30 V DC 5000 mA
Ethernet
Modbus TCP
75 hp heavy duty
RJ45 (on the remote graphic terminal) for Modbus serial
215 A at 240 V (normal duty)
189 A at 200 V (heavy duty)
161 A at 240 V (heavy duty)
282 A at 2.5 kHz for normal duty
316.5 A during 60 s (heavy duty)
1.5 x In during 60 s (heavy duty)
Line side: screw terminal 2 x 95...3 x 120 mm²/2 x AWG 3/0...2 x 300 kcmil
Motor: screw terminal 2 x 95...3 x 120 mm²/2 x AWG 3/0...2 x 300 kcmil
AO1, AO2: +/- 0.2 % for analog output
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2
Synchronous motors
Synchronous reluctance motor
61.1 kVA at 240 V (heavy duty)
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Food and beverage processing other application
Mining mineral and metal fan
Mining mineral and metal pump
Oil and gas fan
Water and waste water other application
Building - HVAC screw compressor
Food and beverage processing pump
Food and beverage processing fan
Food and beverage processing atomization
Oil and gas electro submersible pump (ESP)
Oil and gas water injection pump
Oil and gas jet fuel pump
Oil and gas compressor for refinery
Water and waste water centrifuge pump
Water and waste water positive displacement pump
Water and waste water electro submersible pump (ESP)
Water and waste water screw pump
Water and waste water lobe compressor
Water and waste water screw compressor
Water and waste water compressor centrifugal
Water and waste water fan
Water and waste water conveyor
Water and waste water mixer
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive
Slot A: communication module, PROFINET
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
Communication module, BACnet MS/TP
Communication module, Ethernet Powerlink
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Analog input: 0.012/50 Hz
5 ms +/- 1 ms (DI5, DI6) - discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input
10 ms +/- 1 ms (AO1) - analog output
IP00 conforming to IEC 60529
IP21 (with kit VW3A9704) conforming to IEC 61800-5-1
IP21 (with kit VW3A9704) conforming to IEC 60529
1000...4800 m with current derating 1 % per 100 m
50…60 °C (with derating factor)
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
EN/IEC 61800-3
EN/IEC 61800-3 environment 1 category C2
EN/IEC 61800-3 environment 2 category C3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
The ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 is conceived to satisfy the prerequisites of business buyers, such as circuit designers, electrical fitters, upkeep firms, and Industry suppliers. ATV630D75M3 dispenses superior standards and worth for designers in the electrical engineering industry. This Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 and other Altivar 630 from Schneider Electric can be purchased at the lowest cost and delivery schedule through baltelec.eu, a trustworthy vendor attending to specialists in their obtaining needs.
Professionals who have secured Schneider Electric Altivar 630 have repeatedly approved the manufacturer’s durability. It has been specified that the excellent productivity of ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 extends to a spectrum of operations. Its supreme elements make it fitting for wide-ranging specifications, securing success in your industrial, tertiary, and automation endeavors.
BaltElec team centers in meeting industrial and tertiary professionals’ needs. We appreciate the special criteria and standards of our consumers in the niche. By aligning with our company, your organization get access to the superior charges and stock of superior products like ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 from Schneider Electric at a reasonable price. Baltelec account members receive added discounts and dedicated support.
Make a move and grab ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 at our dependable and hassle-free virtual storefront. Don't delay in making this sensible plan that assures the utmost quality and achieves the unique criteria of clients like your team.
If you face any questions or concerns about ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 or any other Schneider Electric products, email us or refer to our Common Questions section below. We have put together answers to standard issues to advise you further in making an educated decision about industrial and tertiary electrical components.
Remember, ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 from Schneider Electric is sure, reasonable, and better to other vendors in the Altivar 630 category. Make it a part of your electrical system straight away. Buy at Baltelec e-shop, your steady distributor for all your professional electrical equipment and automation needs.
In our Baltelec.eu online store you will encounter Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 - ATV630D75M3 worth 7,326.83 €, which will be a dependable and innovative solution for your needs. This merchandise is created by the Schneider Electric brand using the up-to-the-minute technologies and complies with the uppermost standards of security and efficiency. We give things from the Altivar 630 category that integrate strength and usability, which is an outstanding pick for various operations. Irrespective of whether you demand appliances for small formation or for competent industrial employment, Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 will be a constant companion in your duty.
Baltelec works to make the obtaining process as smooth and fast as feasible for our clients. We offer detailed summaries and high-quality images of Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 so that you can make an well-informed choice. A team of specialists is always ready to help you with any inquiries in the Altivar 630 section relevant to the selection and use of materials. We are certain that Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 will meet your prospects and become an essential element of your machinery for just 7,326.83 €.
Frequently Raised Questions about ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00:
-
What are the benefits of purchasing ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 from Baltelec.eu online store?
When you order Schneider Electric ATV630D75M3 from Baltelec website, you will receive original quality Schneider Electric Altivar 630 products at the finest pricing and turnaround time. Moreover, registered accountsget additional savings and priority service.
-
Can you consult if Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 is the right choice for my contract?
To verify that Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 is appropriate for your drawings, we provide thorough information pertaining to product's technical specifications, features, and interoperability. You can find this information on the specific page of the device model. If you need further assistance, our customer service representative stands ready to assist you in making an educated decision.
-
Which warranty coverage is offered for ATV630D75M3?
BaltElec stands for the excellence of the products we sell. The regular guarantee coverage for Schneider Electric Altivar 630 including Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00 is 1 year. Nevertheless, it depends based on the individual item, category, and might be extended. You can discover comprehensive warranty details on the ATV630D75M3 product page or by getting in touch with our customer service team.
-
Can you offer global shipping for ATV630D75M3 and other Schneider Electric products?
Yes. In addition to serving Estonia, Latvia, Lithuania and other European Union countries, we provide international shipping for ATV630D75M3. Please be aware that delivery options, costs, and shipping times may vary depending on the destination. In the case of complex inquiries, feel free to reach out to Baltelec.eu sales representatives.
-
Do Schneider Electric MBC provided by BALTELEC adhere to global norms for safety and reliability?
Completely. All Schneider Electric products provided at Baltelec web store adhere to global standards such as IEC 60898-1 and carry the CE mark. These standards ensure that the products fulfill stringent security, technological, dependability, and performance criteria.
-
Can BaltElec provide guidance on incorporating renewable energy solutions, such as solar power systems or wind power converters, into my projects?
Certainly! Baltelec.eu understands the significance of sustainable energy incorporation within community. Our group of specialists can assist you in picking the appropriate Schneider Electric items, to integrate them into your renewable energy solutions}. We can offer guidance on integrating solar power systems, wind power converters, and additional sustainable options to optimize energy generation and efficiency.
-
Do you have energy-efficient options offered within the Altivar 630 category to promote environmental sustainability?
Certainly! BaltElec offers various green solutions in the category of Altivar 630 that are in line with energy-saving goals. Our top-quality Schneider Electric products, like the ATV630D75M3 - Variable speed drive, Altivar Process ATV600, ATV630, 75kW/100 hp, 200...240 V, IP00, are designed with energy efficiency in mind. By incorporating these products into your electrical system, you can enhance energy usage and minimize environmental impact. Additionally, we offer competitive pricing for our energy-efficient Schneider Electric products,, making them an cost-effective choice for advocating sustainability.
-
Are ATV630D75M3 sold by BALTELEC legitimate?
Yes, we only sell authentic Schneider Electric products, including ATV630D75M3. We procure our products solely through legitimate distribution channels to assure their authenticity and excellent performance.
