Pending restock
XXA30B2PM12 – Telemecanique
323,31 € excl. VAT
400,91 € incl. VAT

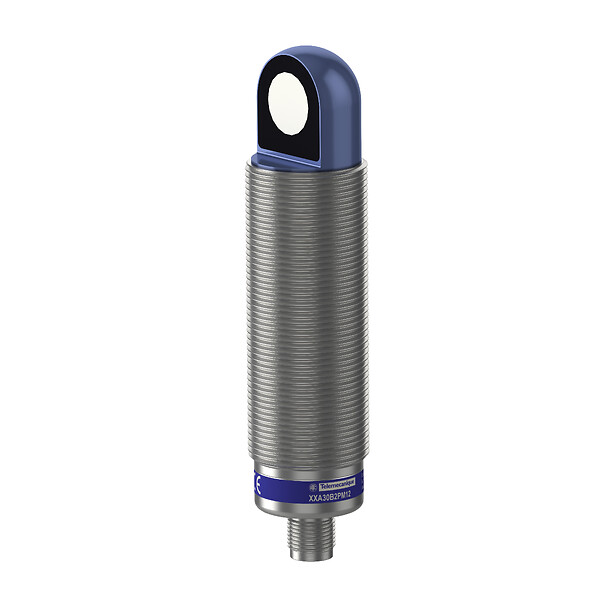

Ultrasonic sensors XX, ultrasonic sensor, metal, cylindrical M30, angled, 2 m, PNP - Telemecanique
Ultrasonic sensors XX, ultrasonic sensor, metal, cylindrical M30, angled, 2 m, PNP.
This product is compatible with XXZB130, XXZPB100, XZCPV1164L2, XZCPV11V12L2
SPECIFICATIONS
Main
Series name
General purpose
sensor name
XXA
detection system
Diffuse (with 90° head)
Complementary
Product certifications
E2RCMcULusEcolab
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
65 mA
marking
CE
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Nickel plated brass
Material
Metal
function available
Software configurablewith synchronisation mode
switching frequency
5.5 Hz
Discrete output type
PNP
Front material
Resinepoxyrubber
electrical connection
Male connector M12 5 pins
Minimum size of detected object
Cylinder diameter 1 mm at 1.4 m
Sensor type
Ultrasonic sensor
Voltage drop
2 VOLT
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Setting-up
Configurator softwareteach mode
Sensor design
Cylindrical M30
Status led
Output state: 1 LED (yellow), echo state: 1 LED (green)
Wiring technique
5-wire
Type of output signal
Discrete
Environment
ip degree of protection
IP65 conforming to IEC 60529, IP67
Range of product
Telemecanique Ultrasonic sensors XX
standards
CSA C22.2 No 14UL 508IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
