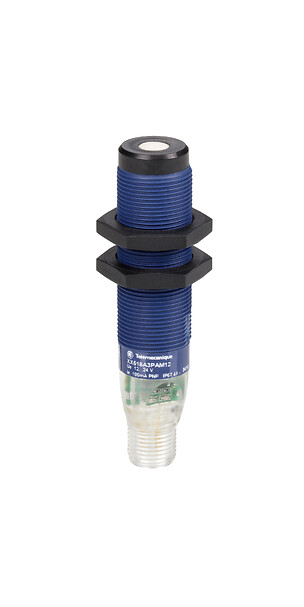

XX918A1A1L2 – Telemecanique
763,49 € excl. VAT
946,73 € incl. VAT
Ultrasonic sensors XX, ultrasonic sensor, 24 VDC 0 10 V +options - Telemecanique
Ultrasonic sensors XX, ultrasonic sensor, 24 VDC 0 10 V +options
SPECIFICATIONS
Main
product specific application
Analog output
sensor name
XX9
Complementary
iso thread
M18 x 1
Product certifications
UL
Analogue output range
0...10 V inverse
[us] rated supply voltage
15...24 V DC with reverse polarity protection
Current consumption
<= 50 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Enclosure material
ULTEM
Material
PBT (polybutylene terephthalate)
Front material
Silicone
electrical connection
Cable, 2 m cable length
Maximum switching capacity
1 kOhm with overload and short-circuit protection
Minimum size of detected object
Cylinder diameter 1.6 mm - up to 63.5 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Ø 18 mm
Status led
Setting-up assistance: 2 LEDs (green/yellow (flashing)), output state: 2 LEDs (green/yellow)
Wiring technique
4-wire
Type of output signal
Analogue
Type of sensing window
Fixed
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Ultrasonic sensors XX
standards
IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
