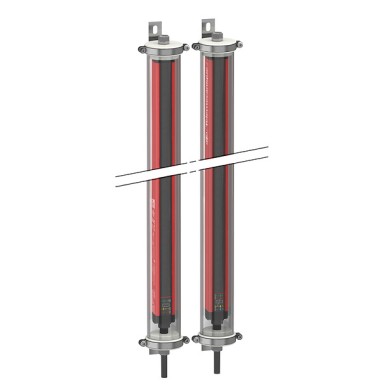

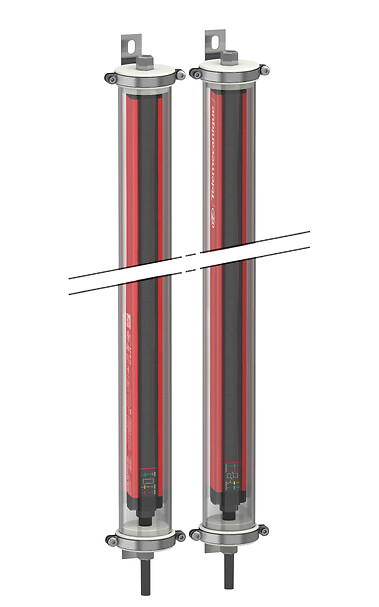

XUSL4E30H091LWC - Safety light curtain type 4, Telemecanique Safety light curtains XUSL - Telemecanique - Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Hand IP69K w/o Heating, Long Sensing Range, Hp = 910 mm, R=30 mm - Telemecanique - 0
XUSL4E30H091LWC - Safety light curtain type 4, Telemecanique Safety light curtains XUSL - Telemecanique - Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Hand IP69K w/o Heating, Long Sensing Range, Hp = 910 mm, R=30 mm - Telemecanique - 0
Pending restock

XUSL4E30H091LWC – Telemecanique

2 063,89 € excl. VAT
2 559,22 € incl. VAT
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Hand IP69K w/o Heating, Long Sensing Range, Hp = 910 mm, R=30 mm - Telemecanique
 In cart
2 559,22 €
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Hand IP69K w/o Heating, Long Sensing Range, Hp = 910 mm, R=30 mm. This product is compatible with XUSZVA8, XUSZWPE090
SPECIFICATIONS
Main
Device short name XUSL4E
Offer type Long distance
product specific application For hand protection
detection system Transmitter-receiver system
Complementary
Kit composition adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, silicone o-ring(s), 1 PVC cable(s)
Control type Selected by wiring
Product certifications CETÜVcULusEcolab
response time 12.5 ms
Product or component type Safety light curtain type 4
[us] rated supply voltage 24 V DC +/- 20 %
Current consumption 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver
marking CE
Output type 2 safety outputs OSSD solid-state PNP (arc suppression)
Housing colour Red RAL 3000
Fixing mode By fixing brackets
safety reliability data PFHd = 1.30E-8 1/h conforming to IEC 61508
Material PMMA (polymethyl methacrylate): tube, stainless steel AISI 316L: sealing plug, PVC (polyvinyl chloride): cable
output voltage 24 V
function available Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults, anti-condensation system
Local signalling 1 multi-colour LED transmitter, 2 dual colour LEDs receiver
electrical connection 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver
output circuit type DC
Provided equipment Without heating system
Voltage drop <0.5 V
Shock resistance 10 gn for 16 ms conforming to IEC 61496-1
Safety level Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1
Supply Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1
Type of start Automaticmanual
Type of cable Unshielded cable AWG 22 10-10 m
Environment
Directives 89/655/EEC - work equipment89/336/EEC - electromagnetic compatibility98/37/EEC - machinery
Emission IR LED 950 nm
ip degree of protection IP69K
Range of product Telemecanique Safety light curtains XUSL
vibration resistance 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
