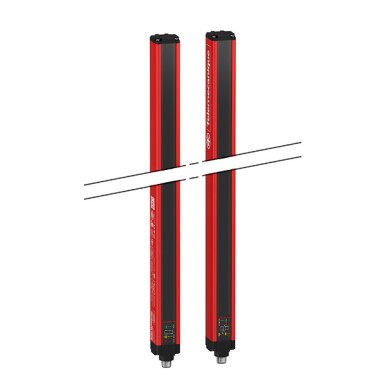

XUSL4E14F166N - Safety light curtain type 4, Telemecanique Safety light curtains XUSL - Telemecanique - Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1660 mm, R=14 mm - Telemecanique - 0
XUSL4E14F166N - Safety light curtain type 4, Telemecanique Safety light curtains XUSL - Telemecanique - Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1660 mm, R=14 mm - Telemecanique - 0
Pending restock

XUSL4E14F166N – Telemecanique

2 811,87 € excl. VAT
3 486,72 € incl. VAT
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1660 mm, R=14 mm - Telemecanique
 In cart
3 486,72 €
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1660 mm, R=14 mm. This product is compatible with XZCP1164L10, XZCP1164L15, XZCP1164L2, XZCP1164L25, XZCP1164L5, XZCP1264L10, XZCP1264L15, XZCP1264L2, XZCP1264L25, XZCP1264L5, XZCP29P11L10, XZCP29P11L15, XZCP29P11L2, XZCP29P11L25, XZCP29P11L5, XZCP53P11L10, XZCP53P11L15, XZCP53P11L2, XZCP53P11L25, XZCP53P11L5
SPECIFICATIONS
Main
Device short name XUSL4E
Offer type Standard distance
product specific application For finger protection
detection system Transmitter-receiver system
Complementary
Kit composition adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM
Control type Selected by wiring
Product certifications CETÜVcULus
response time 22 ms
Product or component type Safety light curtain type 4
[us] rated supply voltage 24 V DC +/- 20 %
Current consumption 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver
marking CE
Output type 2 safety outputs OSSD solid-state PNP (arc suppression)
Housing colour Red RAL 3000
Fixing mode By fixing brackets
safety reliability data PFHd = 3.48E-8 1/h conforming to IEC 61508
Material Aluminium: casing, polycarbonate: front panel, polypropylene: end caps
output voltage 24 V
function available Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults
Local signalling 1 multi-colour LED transmitter, 2 dual colour LEDs receiver
electrical connection 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver
output circuit type DC
Voltage drop <0.5 V
Shock resistance 10 gn for 16 ms conforming to IEC 61496-1
Safety level Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1
Supply Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1
Type of start Automaticmanual
Environment
Directives 89/655/EEC - work equipment89/336/EEC - electromagnetic compatibility98/37/EEC - machinery
Emission IR LED 950 nm
ip degree of protection IP65, IP67
Range of product Telemecanique Safety light curtains XUSL
vibration resistance 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
