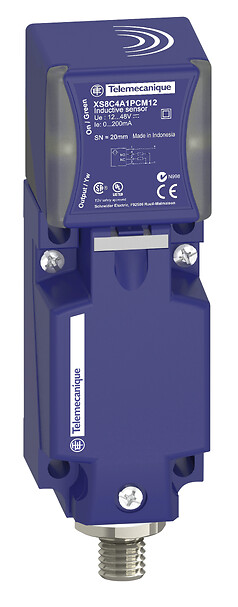

XS8C4A1PDM12 – Telemecanique
79,79 € excl. VAT
98,94 € incl. VAT
XS8C4A1PDM12 - Telemecanique
SPECIFICATIONS
Main
Body type
Fixed
Series name
Fail safe inductive sensor
sensor name
XS8
Complementary
Product certifications
CCCTÜVE2cULus
[us] rated supply voltage
12...48 V DC with reverse polarity protection
Current consumption
0...15 mA no-load
detection face
5 positions turret head
marking
CEUKCA
Device application
Mobile equipment
Discrete output function
1 NO + 1 NC
Enclosure material
PBT
Detector flush mounting acceptance
Flush mountable
safety reliability data
MTTFd = 2422 years, PFHd = 47.1E-9 1/h, SFF = 98.9%, DC > 96 % with appropriate safety controller
Differential travel
3...15% of Sr
Material
Plastic
switching frequency
<= 40 Hz
Discrete output type
PNP
switching capacity in ma
<= 200 mA with overload and short-circuit protection
repeat accuracy
<= 3% of Sr
Front material
PBT
electrical connection
Male connector M12, 4 pins
output circuit type
DC
Sensing range
> 15...40 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Safety level
SIL 2 conforming to IEC 61508, PL = d conforming to ISO 13849-1, SILCL 2 conforming to IEC 62061
Sensor design
Form 40 x 40 x 117
Status led
Supply on: 1 LED (green), output state: 1 LED (yellow)
Wiring technique
4-wire
Size
117 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
