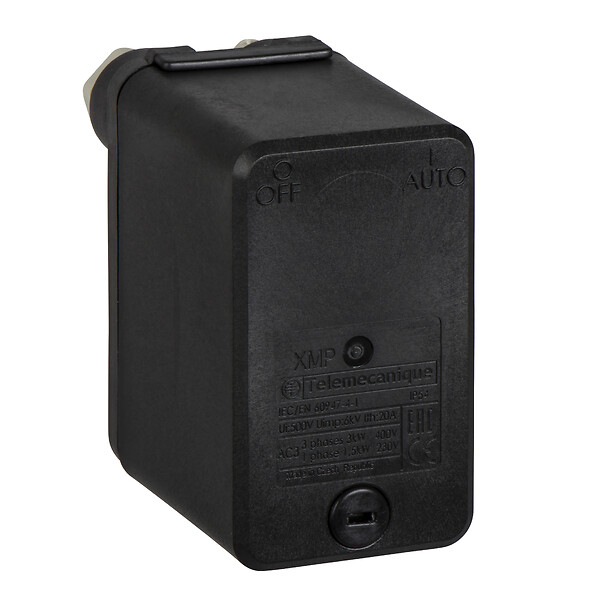

XMPD12B2133 – Telemecanique
40,45 € excl. VAT
50,16 € incl. VAT
Pressure sensors XM, pressure sensor XMP, 12 bar, G 1/4 female, 2 NC, without control type - Telemecanique
Pressure sensors XM, pressure sensor XMP, 12 bar, G 1/4 female, 2 NC, without control type
SPECIFICATIONS
Main
pressure actuator
Diaphragm
Fluid connection type
G 1/4 (female) conforming to ISO 228
product specific application
Not applicable
controlled fluid
Air (0-70 °C), fresh water (0-70 °C), sea water (0-70 °C)
Pressure switch type of operation
Regulation between 2 thresholds
pressure sensor name
XMP
pressure sensor type
Electromechanical pressure sensor
Complementary
Control type
Without
local display
Without
Product certifications
EAC
cable entry
2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300
Enclosure material
PA impregnated with fibreglass
Contacts type and composition
2 NC snap action
Electrical shock protection class
Class I conforming to IEC 60536
Electrical circuit type
Power circuit
setting
Nut
Operating position
Any position
terminal block type
4 terminals
Materials in contact with fluid
Canvas covered nitrilechromated zinc alloy
electrical connection
Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
Operating rate
10 CYCLE_PER_MINUTE
Shock resistance
50 gn conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Scale type
Adjustable differential
Type of decompression valve
Straight valve instant connection
Terminals description iso n°1
(1-2)NC(3-4)NC
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Pressure sensors XM
standards
CEIEC 60947-4-1
vibration resistance
3 gn conforming to IEC 60068-2-6 (f = 10-500 Hz)
