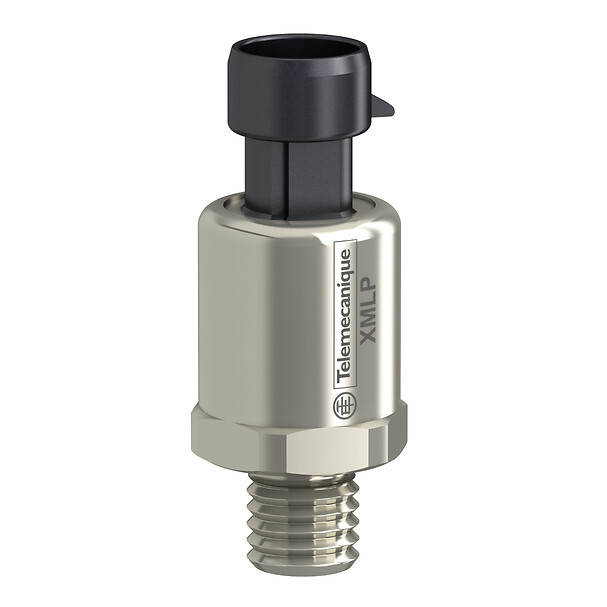

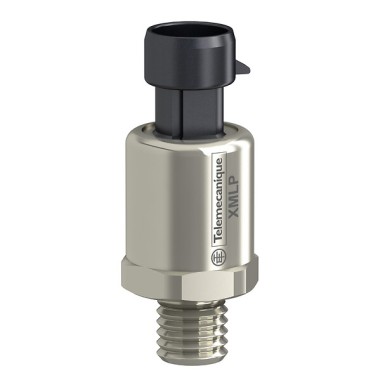

XMLP3K0PP230 - Pressure transmitter - XMLP - 3000psi - 1/4
XMLP3K0PP230 - Pressure transmitter - XMLP - 3000psi - 1/4
Pending restock

XMLP3K0PP230 – Telemecanique

100,35 € excl. VAT
124,44 € incl. VAT
Pressure transmitter - XMLP - 3000psi - 1/4"18NPT - 4..20mA - Packard - set 1 - Telemecanique
 In cart
124,44 €
Pressure transmitter - XMLP - 3000psi - 1/4"18NPT - 4..20mA - Packard - set 1
SPECIFICATIONS
Main
Fluid connection type 1/4" - 18 NPT (male)
controlled fluid Fresh water (0-135 °C), air (-40-135 °C), hydraulic oil (-40-135 °C), gas (-40-135 °C), refrigeration fluid (-40-135 °C)
Type of packing Individual
pressure sensor name XMLP
pressure sensor type Pressure transmitter
Complementary
Accuracy 0.1 % of the measuring range
local display Without
Product certifications CERCMcULus
Product or component type Electronic pressure sensors
[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7-33 V)
Analogue output function 4...20 mA, 2-wire
Current consumption < 23 mA
Quantity per set Set of 1
Drift of the sensitivity +/- 0,02 % of measuring range/°K
Drift of the zero point +/- 0,02 % of measuring range/°K
Electrical circuit type Control circuit
measurement accuracy +/- 0,5 % de la plage de mesure
Operating position Any position
Materials in contact with fluid Stainless steel AISI 316L
electrical connection 1 male connector Packard Metripack 150 3 pins
Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27
Response time on output <= 2 ms 10...90 % of full scale
Type of output signal Analogue
Protection type Load short-circuitreverse polarity
Environment
ip degree of protection IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Pressure sensors XM
electromagnetic compatibility Electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz
standards IEC 61326-2-3NSF ANSI 61
vibration resistance 20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6
protective treatment TC
